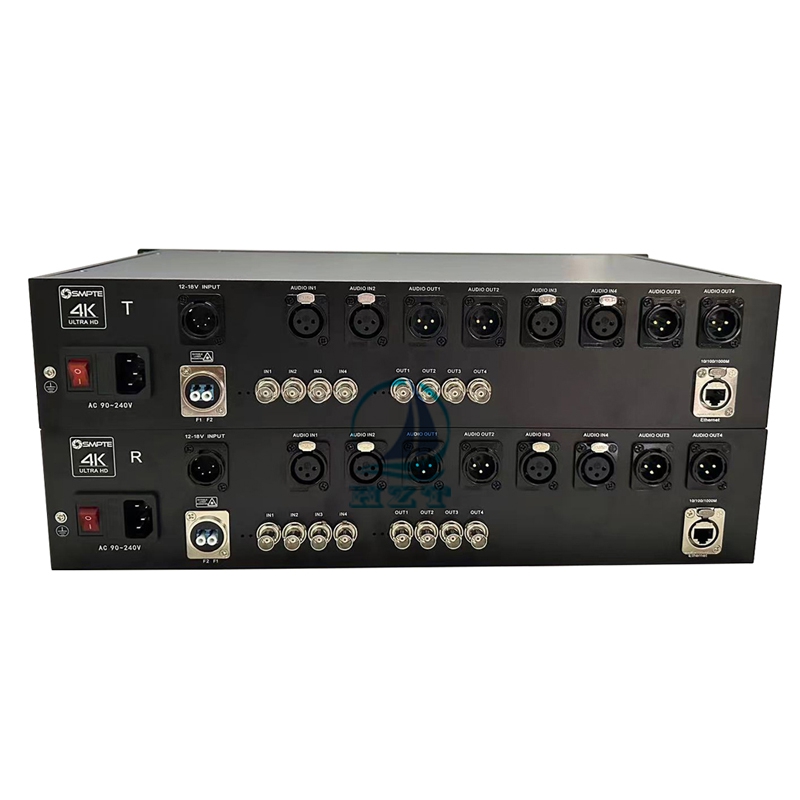

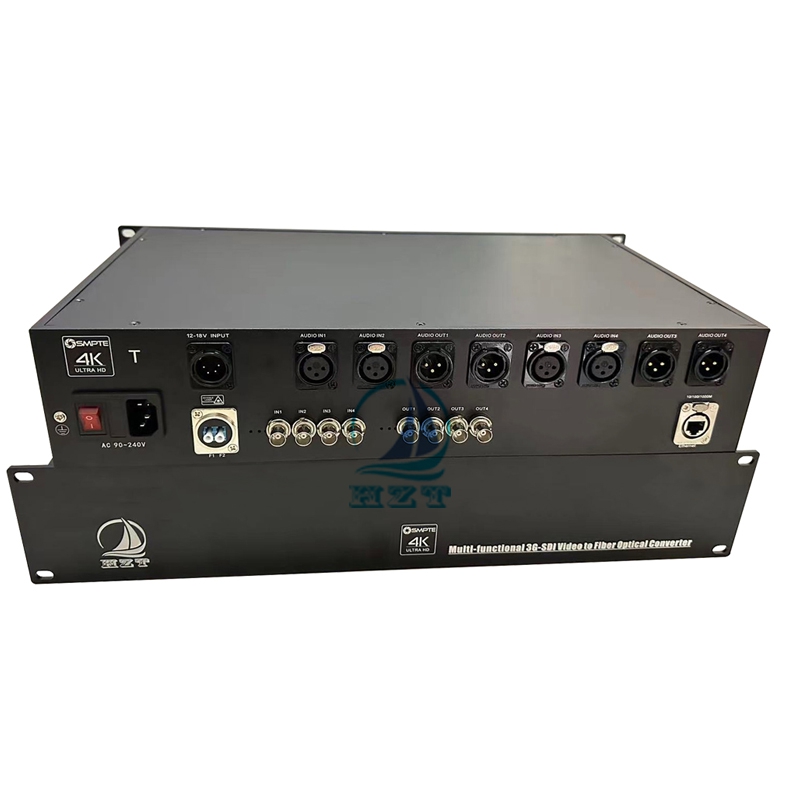

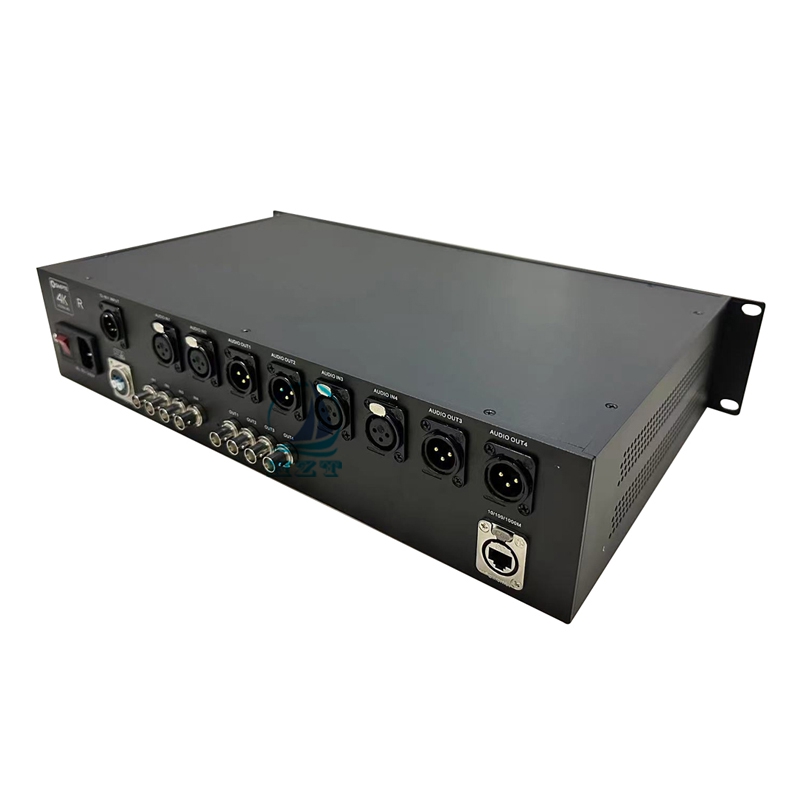

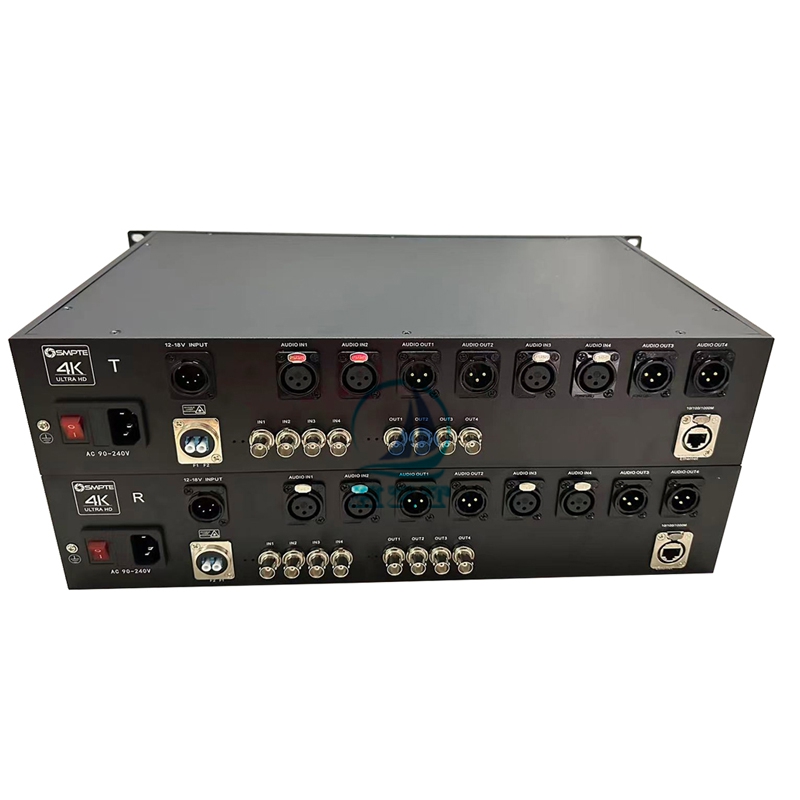

4-CH BIDI 3G-SDI+4-CH BIDI XLR Audio+1000M Ethernet To Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    Description:
    HZT-SDI-3G-4VV4AA1E-SM002 is developed by HZT technology and has independent intellectual property rights. It can transmits 4-ch Bi-directional 3G/HD-SDI video signal with 4-ch 3-Pin XLR Balanced Audio + 1 port 10/100/1000M Ethernet(etherCON® RJ45 Connectors) over dual LC Fiber , to achieve no delay, no compression, high-quality signal extension of 10 kilometers. It also can compatible with 6G/3G SDI signals.
    The optical module and core circuit of the HZT-SDI-3G-4VV4AA1E-SM002 fiber optical extender are imported components, stable performance, the use of integrated circuit design, simple design, easy to install and debug, maintenance-free, and because of the use of optical fiber as the transmission medium, so excellent performance, high temperature resistance, cold, can effectively prevent strong electromagnetic radiation interference, lightning impact and power surge. Greatly improve the stability and reliability.
    Features
    ● 4 Channel BIDI 3G-SDI High density digital audio/video fiber transmission
    ● Handle all Pathological patterns
    ● SD, HD, 3G input auto identification,support three datarate 270Mbit/s - 1.48Gbit/s - 3Gbit/s;support 1080P 3Gbps HD-SDI format
    ● Support SMPTE-424M 3Gbps HD-SDI、SMPTE-292M HD-SDI 、 SMPTE-259M SDI
    ● 10KM on single Mode Fiber transmission
    ● etherCON® RJ45 Connectors ensure the connection more easy and secure.
    Application
    ● 3G/HD-SDI monitor system;
    ● Live on optical fiber transmission;
    ● TV remote studio;
    ● The military and public security command and control
    ● Event production;
    Specification
    Fiber Optical
    Wavelength:
    CWDM Wavelength Optional
    Output Power:
    -5~0dBm(0±3dBm optional)
    Optical fiber:
    9/125u single mode
    Rx sensitivity:
    -18dBm
    Optical connector:
    Duplex LC (Dual ST, SC, FC Optional .)
    Distance:
    0~10KM   (SM Default)
    3G/HD-SDI Video
    Support :
    SDI level A and Level B
    SDI Signal Standard:
    SMPTE 424M, SMPTE 292M, SMPTE 259M
    Data Rates:
    270Mbit/s - 1.48Gbit/s - 3Gbit/s
    Cable Equalization:
    Automatic cable EQ (Belden 1694A cable)
    250m @ 270Mbit/s,
    140m @ 1.5Gbit/s,
    80m @ 3Gbit/s
    Connector:
    BNC 75 Ohm
    Number of Transmitter Channel:
    4-ch 3G-SDI Video Input + 4-ch 3G-SDI Output
    Number of Receiver Channel:
    4-ch 3G-SDI Video Input + 4-ch 3G-SDI Output
    Analog XLR Balanced Audio
    Input Connector:
    XLR(Female)
    Output Connector:
    XLR(Male)
    Input / Output Impedance:
    10K Ohm
    Input capacitance LINE inputs:
    10 pF
    Max input/output voltage:
    1.228Vp-p (+4dBu)
    Frequency Response:
    20 Hz~24kHz @±3dB
    Sample Rates From:
    48kHz
    SNR:
    > 80dB
    Number of transmitter channel:
    4-CH XLR Audio Input,  4-ch XLR Audio Output
    Number of Receiver channel:
    4-ch XLR Audio Output,  4-CH XLR Audio Input

    10/100/1000 Ethernet

    Work Mode :
     Full  duplex/half duplex
    Data Rate :
    10/100/1000 Mbps  (AUTO)
    Connection terminal :
    Neutrik® RJ45 Connector
    Ethernet Number:
    1 ports 10/100/1000 Isolated Ethernet

    General index

    Input power:
    AC90~240V
    Extra Power Output:
    4-pin XLR with 15V power output.
    Power consumption:
    < 30W
    Net weight:
    Approax. 7.5KG /pair
    Dimension :
    19"  Standard 2U Rack
    Case Material:
    Aluminum Alloy
    Work Temp:
    -20°C to 55°C
    Storage Temp:
    -20°C to 70 °C
    humidity:
    0 ~ 95% (non-condensing)
