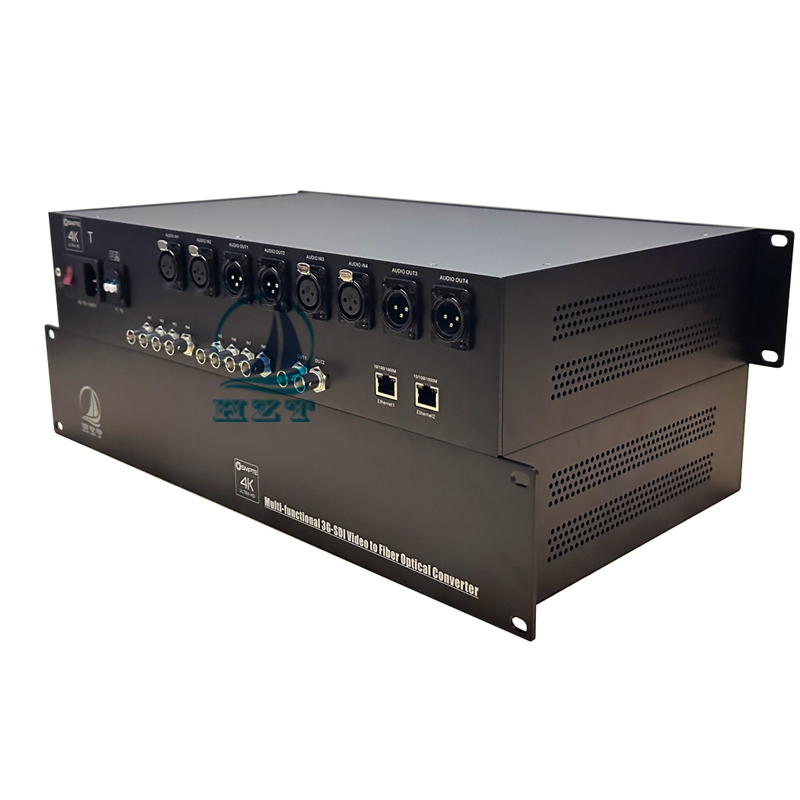

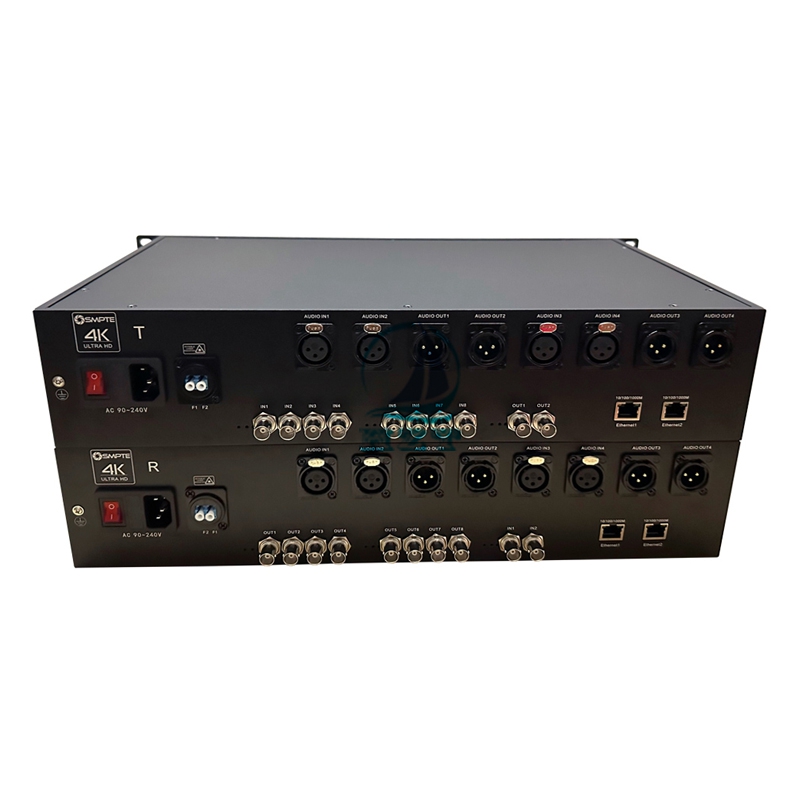

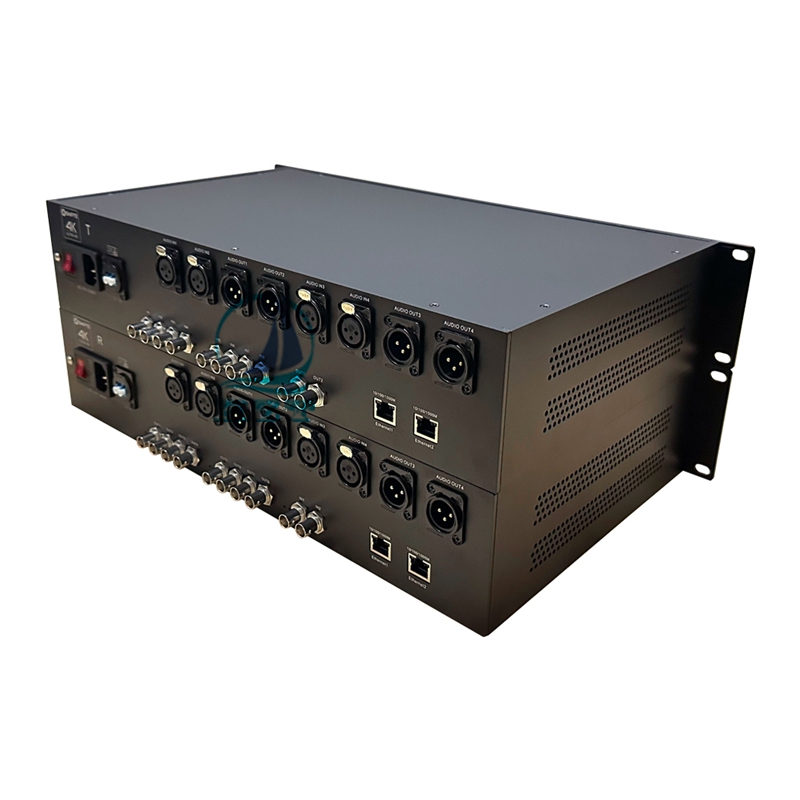

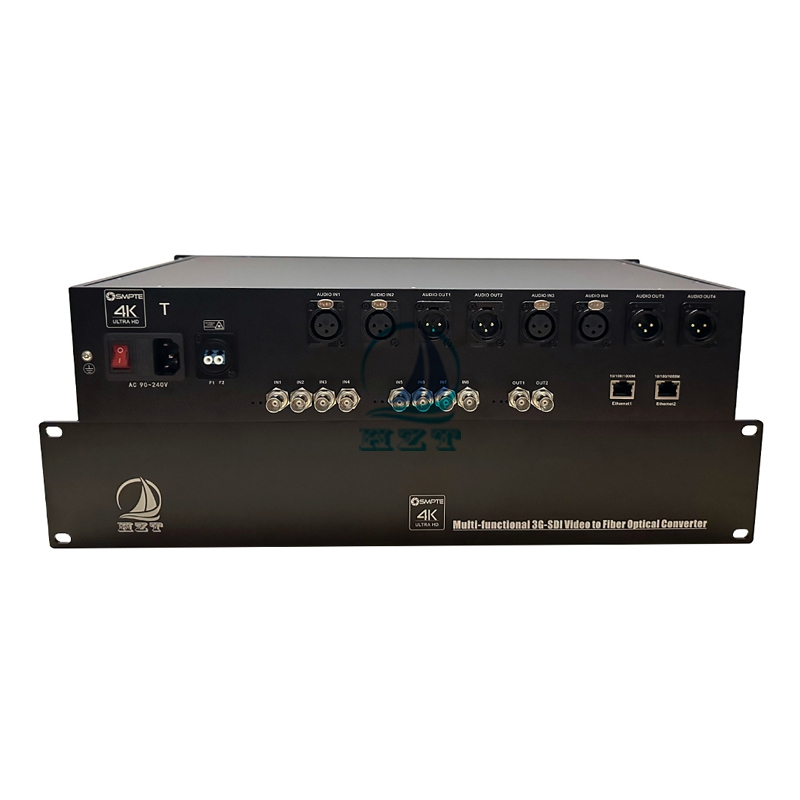

8-CH 3G-SDI+2-CH Return 3G-SDI+4-CH BIDI XLR Balanced Audio +2-CH 1000M Ethernet To Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT-SDI-3G-8V2V4AA2E-SM002 is designed and produced by HZT technology and which has an ideal solution for broadcasting event production applications. It can transmits 8-ch 3G-SDI digital video signal+ 2-CH Return 3G-SDI Video + 4-ch Bi-directional 3-pin XLR balanced Audio + 2 port 10/100/1000M Isolated Ethernet over Duplex LC Fiber Converter. It supports transmission of UHD TV/4K/HDTV/SDTV SDI signal. Each of the 3G/HD-SDI signals are fully isolated from each other and operate at a full 2.97 Gbps data rate.  Each channel carries its own embedded audio.To achieve no delay, no compression, high-quality signal extension of 10 kilometers.
    Features
    ● 8-ch 3G/HD-SDI +2-ch Return 3G-SDI High density digital audio/video fiber transmission
    ● 4 Channels Two-way 3-pin XLR Analog balanced Audio fiber transmission
    ● 2 ports 10/100/1000M Isolated Ethernet transmission, Independent operation without interference
    ● Handle all Pathological patterns
    ● 3G-SDI Video: Support SMPTE-424M 3Gbps HD-SDI、SMPTE-292M HD-SDI 、 SMPTE-259M SDI ,  SD, HD, 3G,12G input auto identification，support three data rate 270Mbit/s - 1.48Gbit/s - 3Gbit/s；support 1080P 3Gbps HD-SDI format
    ● Support 0-10Km on single Mode Fiber transmission
    ● 1470~1610nm CWDM wavelengths optional.
    Application
    ● 3G/HD-SDI monitor system;
    ● Live on optical fiber transmission;
    ● TV remote studio;
    ● The military and public security command and control
    ● Event production;
    Specification
    Fiber Optical
    Wavelength:
    CWDM Wavelength Optional
    Output Power:
    -5~0dBm（0±3dBm optional）
    Optical fiber:
    9/125u single mode
    Rx sensitivity:
    -18dBm
    Optical connector:
    Duplex LC (Dual ST, SC, FC Optional.)
    Distance:
    0~10KM   (SM Default)
    3G/HD-SDI Video
    Support :
    SDI level A and Level B
    SDI Signal Standard:
    SMPTE 424M, SMPTE 292M, SMPTE 259M
    Data Rates:
    270Mbit/s - 1.48Gbit/s - 3Gbit/s
    Cable Equalization:
    Automatic cable EQ (Belden 1694A cable)
    250m @ 270Mbit/s,
    140m @ 1.5Gbit/s,
    80m @ 3Gbit/s
    Connector:
    BNC 75 Ohm
    Number of Transmitter Channel:
    8-ch 3G-SDI Video Input + 2-ch 3G-SDI Output
    Number of Receiver Channel:
    2-ch 3G-SDI Video Input + 8-ch 3G-SDI Input
    Analog XLR Balanced Audio
    Input Connector:
    XLR（Female）
    Output Connector:
    XLR（Male）
    Input / Output Impedance:
    10K Ohm
    Input capacitance LINE inputs:
    10 pF
    Max input/output voltage:
    1.228Vp-p （+4dBu）
    Frequency Response:
    20 Hz～24kHz @±3dB
    Sample Rates From:
    48kHz
    SNR:
    > 80dB
    Number of transmitter channel:
    4-CH XLR Audio Input, 4-ch XLR Audio Output
    Number of Receiver channel:
    4-ch XLR Audio Output , 4-CH XLR Audio Input

    10/100/1000 Ethernet
    Work Mode :
     Full  duplex/half duplex
    Data Rate :
    10/100/1000 Mbps  (AUTO)
    Connection terminal :
    RJ45
    Ethernet Number:
    2 ports 10/100/1000 Isolated Ethernet

    General index
    Input power:
    AC 90~240V
    Power consumption:
    < 15W
    Net weight:
    7.5KG /pair
    Dimension :
    Standard 2U Rack
    Case Material:
    Aluminum Alloy
    Work Temp:
    -20°C to 55°C
    Storage Temp:
    -20°C to 70 °C
    humidity:
    0 ~ 95% (non-condensing)
