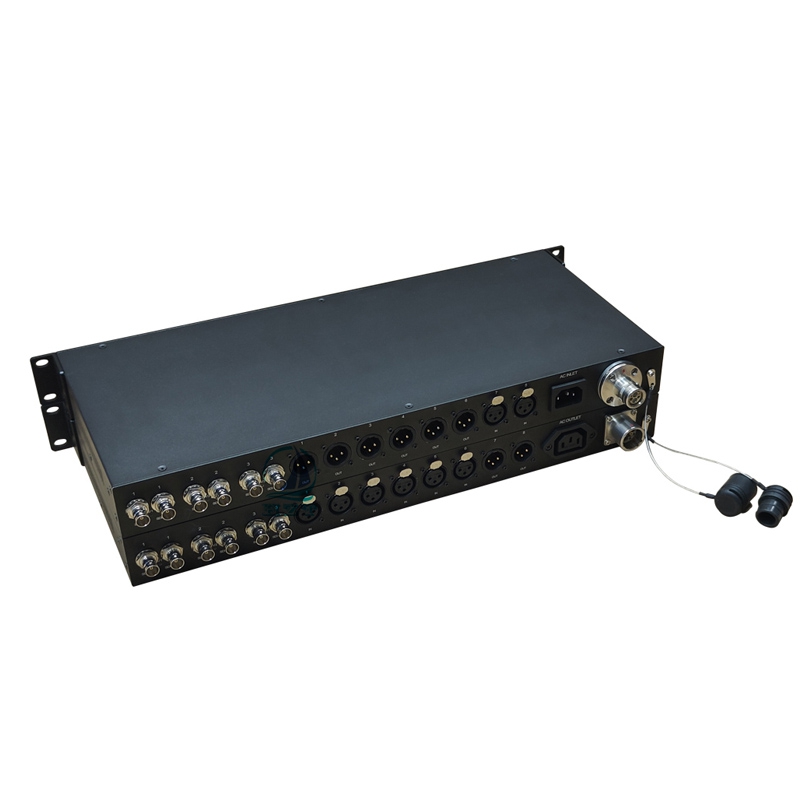

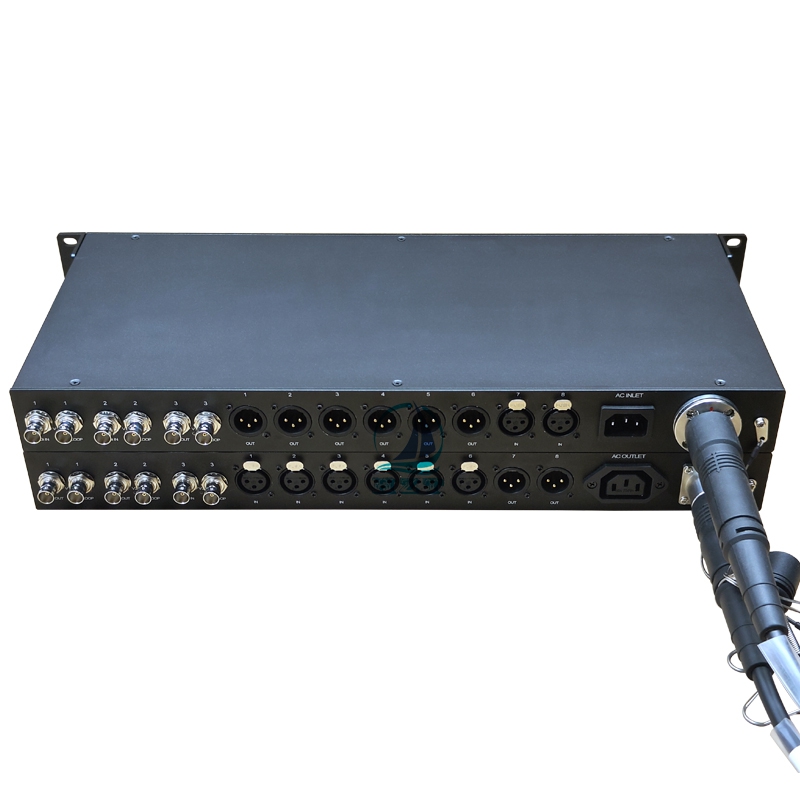

3-CH 3G-SDI+ 8-CH XLR Balanced Audio To SMPTE Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    Description:
    HZT-SDI-3G-3V2A6A-HSM002 is designed and produced by HZT technology and which has an ideal solution for broadcasting event production applications. It can transmits 3-ch 3G-SDI digital video signal + 6-ch 3-pin XLR balanced Audio + 2-ch Return 3-pin XLR balanced Audio over SMPTE Fiber Converter. It supports transmission of UHDTV/4K/8K/HDTV/SD TV SDI signal.
    3K.93C SMPTE FXW-EDW Connector provides Remote Power Supply is the high light for

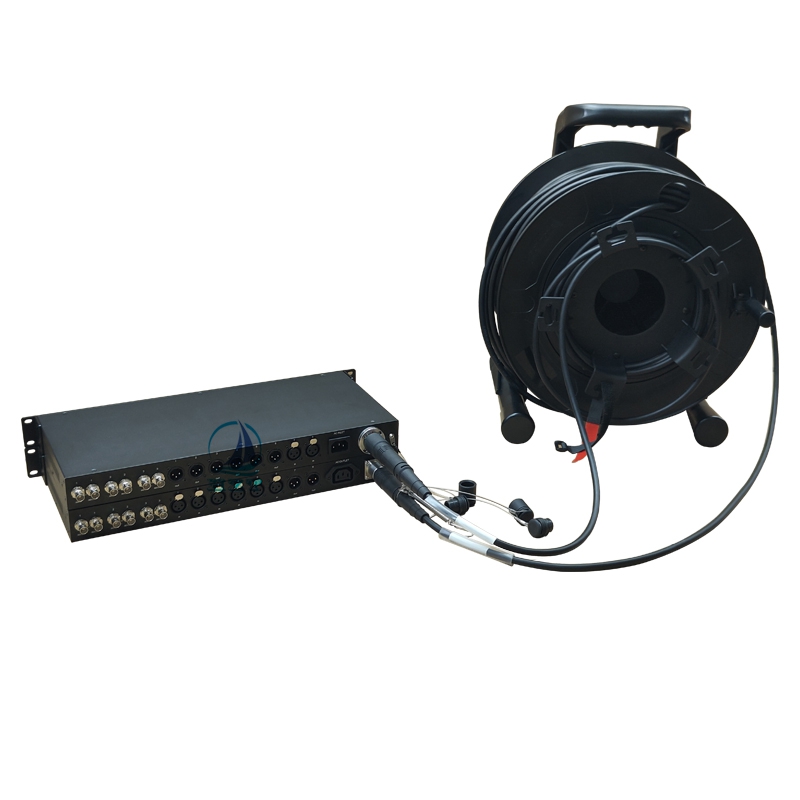

    HZT-SDI-3G-3V2A6A-HSM002. It provides 2 modes of power supply. One uses IEC to power converter itself. However, when the transmitter or receiver is not convenient to connect the power, at this time, the SMPTE connector comes into play, you only need to insert the hybrid SMPTE Cable into Tx and RX.
    Features
    ● 3 Channels 3G-SDI with Loop out over fiber transmission
    ● 6 Channels +2-ch Return  3-pin XLR balanced Audio fiber transmission
    ● Handle all Pathological patterns
    ● Supports SMPTE 424M, 344M, 292M, 259M, Serial Digital Video Standards
    ● With integrated reclocker 270Mbit/s, 1.48Gbit/s, 2.97Gbit/s,
    ● 0~5Km on single Mode Fiber transmission
    ● Supports hot swapping and hot plugging
    ● Supports SMPTE Hybrid power supply.
    Application
    ● Event production;
    ● Live on optical fiber transmission;
    ● TV remote studio;
    ● The military and public security command and control
    Specification
    Fiber Optical
    Wavelength:
    CWDM Wavelength Optional
    Output Power:
    -5~0dBm
    Optical fiber:
    Hybrid SMPTE Cable
    Rx sensitivity:
    -18dBm~0 dBm
    Optical connector:
    3K.93C SMPTE FXW and EDW
    Distance:
    0~5KM   (SM Default)
    3G/HD-SDI Video
    Support :
    SDI level A and Level B
    SDI Signal Standard:
    SMPTE 424M, SMPTE 292M, SMPTE 259M
    Data Rates:
    270Mbit/s - 1.48Gbit/s - 3Gbit/s
    Cable Equalization:
    Automatic cable EQ (Belden 1694A cable)
    250m @ 270Mbit/s,
    140m @ 1.5Gbit/s,
    80m @ 3Gbit/s
    Connector:
    BNC 75 Ohm
    Number of Transmitter Channel:
    3-ch 3G-SDI Video Input With Loop-Out
    Number of Receiver Channel:
    6-ch 3G-SDI Video Output(Each SDI Input with 2-ch 3G-SDI Video Output)
    Analog XLR Balanced Audio
    Input Connector:
    XLR(Female)
    Output Connector:
    XLR(Male)
    Input / Output Impedance:
    10K Ohm
    Input capacitance LINE inputs:
    10 pF
    Max input/output voltage:
    1.228Vp-p (+4dBu)
    Frequency Response:
    20 Hz~24kHz @±3dB
    Sample Rates From:
    48kHz
    SNR:
    > 80dB
    Number of transmitter channel:
    2-CH XLR Audio Input, 6-ch XLR Audio Output
    Number of Receiver channel:
    2-ch XLR Audio Output, 6-CH XLR Audio Input

    General index

    Transmitter power supply:
    Remote SMPTE Hybrid power supply from Receiver,  and one IEC AC 90~240V output ,
    Receiver Power supply:
    IEC 90~240V input
    Power consumption
    < 30 w
    Net weight:
    Approax.10 KG /pair
    Dimension :
    19" Standard 2U Rack
    Case Material:
    Aluminum Alloy
    Work Temp:
    -20°C to 55°C
    Storage Temp:
    -20°C to 70 °C
    humidity:
    0 ~ 95% (non-condensing)
