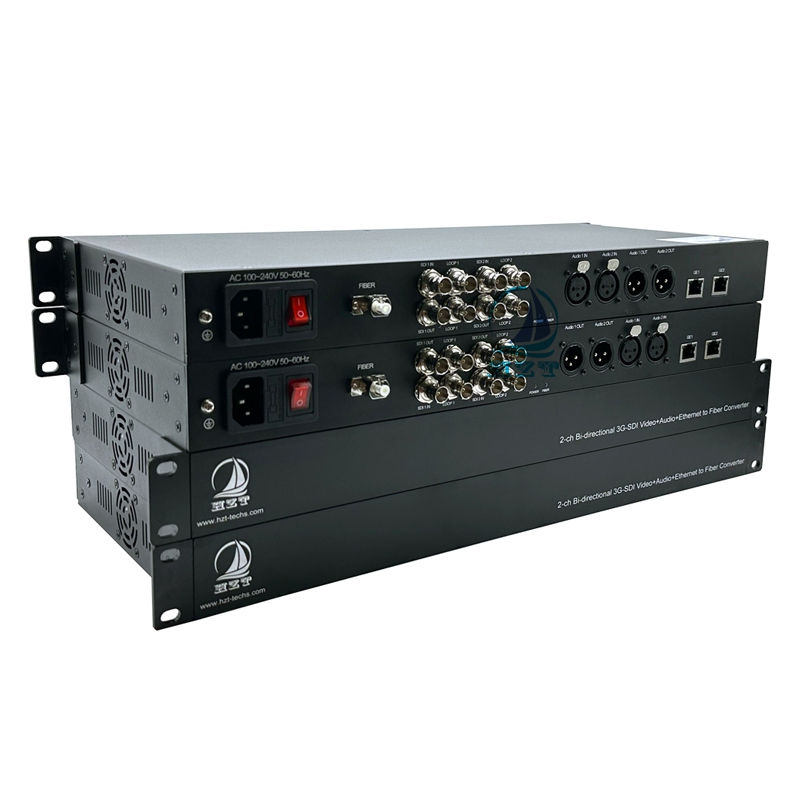

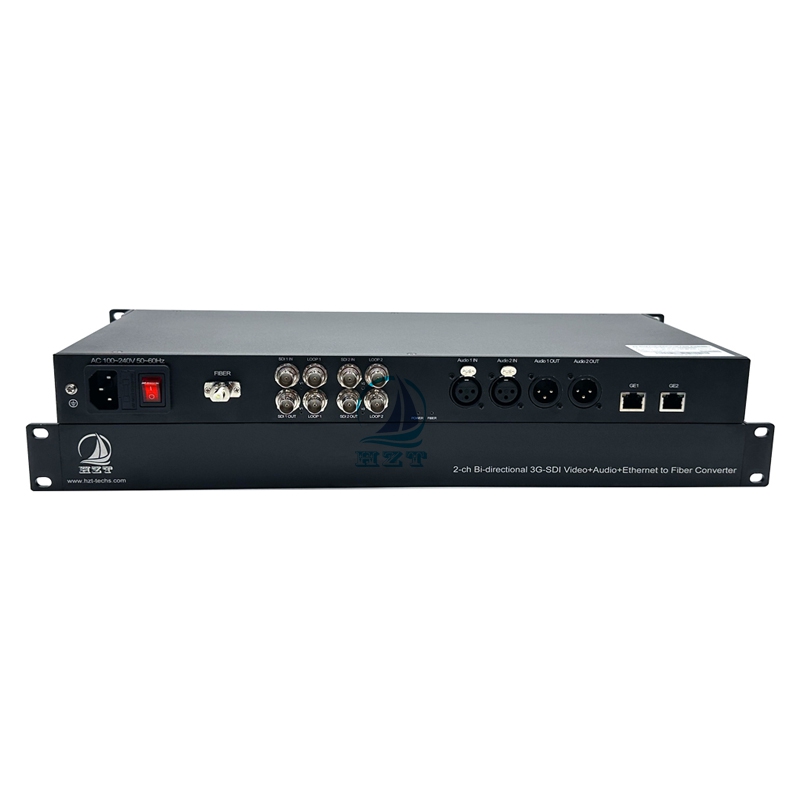

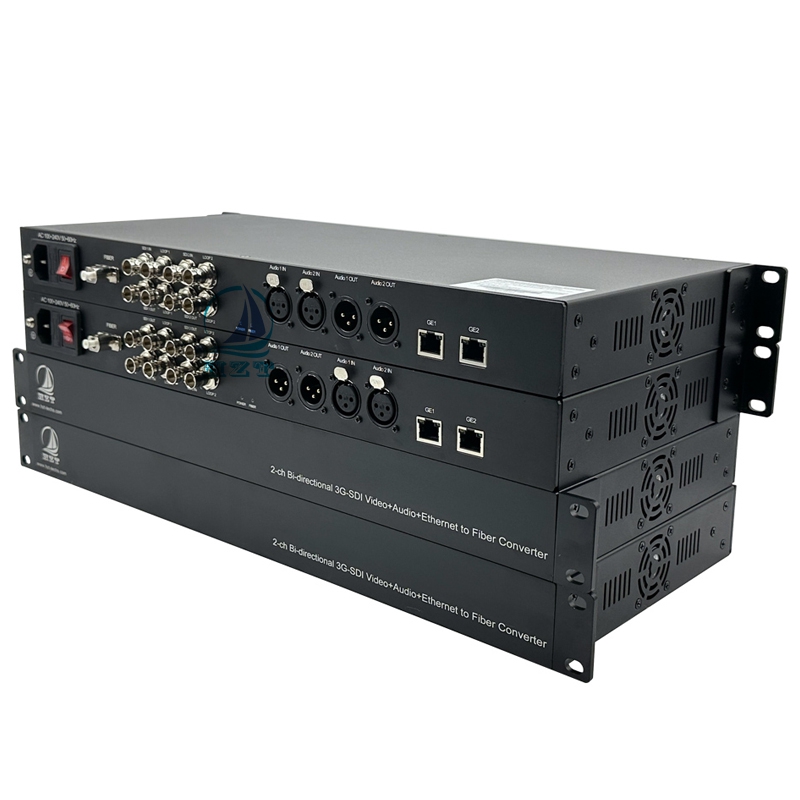

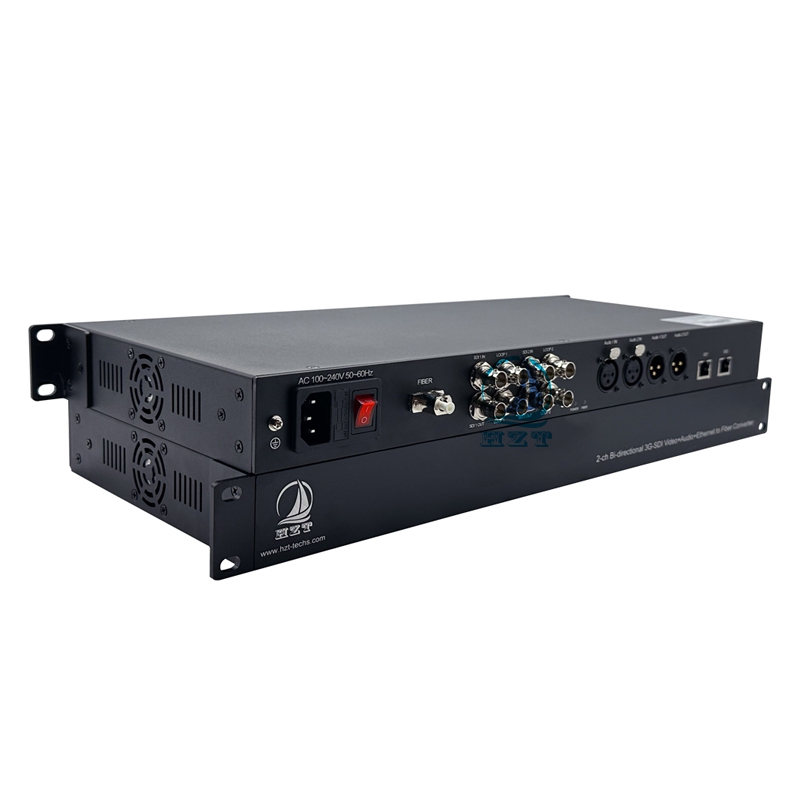

2-CH BIDI 3G-SDI+2-CH BIDI XLR Balanced Audio+2 Port 1000M Ethernet Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT-SDI-3G-2VV2AA-SM001 is designed and produced by HZT technology and which has an ideal solution for broadcasting event production applications. It can transmits 2-ch Bi-directional 3G/HD-SDI video signal with 2-ch bi-directional 3-Pin XLR Balanced Audio+2 port 10/100/1000M Isolated Ethernet over a single LC Fiber. It supports transmission of UHDTV/4K/HDTV/SDTV SDI signal. Each of the 3G/HD-SDI signals are fully isolated from each other and operate at a full 2.97 Gbps data rate.  Each channel carries its own embedded audio.To achieve no delay, no compression, high-quality signal extension of 10 kilometers. It fully compatible with 3G SDI signals.
    Features
    ● 2 Channel BIDI 3G-SDI+2 channel BIDI XLR balanced Audio over fiber transmission
    ● Handle all Pathological patterns
    ● SD, HD, 3G input auto identification，support three datarate 270Mbit/s - 1.48Gbit/s - 3Gbit/s；
    ●     support 1080P 3Gbps HD-SDI format
    ● Support SMPTE-424M 3Gbps HD-SDI、SMPTE-292M HD-SDI 、 SMPTE-259M SDI
    ● 10KM on single Mode Fiber transmission
    Specification
    Fiber Optical
    Wavelength:
    CWDM Wavelength Optional
    Output Power:
    -5~0dBm（0±3dBm optional）
    Optical fiber:
    9/125u single mode
    Rx sensitivity:
    -18dBm
    Optical connector:
    Single LC, (ST, SC, FC Optional.)
    Distance:
    0~10KM   (SM Default)
    3G/HD-SDI Video
    Support :
    SDI level A and Level B
    SDI Signal Standard:
    SMPTE 424M, SMPTE 292M, SMPTE 259M
    Data Rates:
    270Mbit/s - 1.48Gbit/s - 3Gbit/s
    Cable Equalization:
    Automatic cable EQ (Belden 1694A cable)
    250m @ 270Mbit/s,
    140m @ 1.5Gbit/s,
    80m @ 3Gbit/s
    Connector:
    BNC 75 Ohm
    Number of Transmitter Channel:
    2-ch 3G-SDI Video Input with Loop-out + 4-ch 3G-SDI Output(Each SDI Input with 2-ch 3G-SDI output)
    Number of Receiver Channel:
    2-ch 3G-SDI Video Input with Loop-out + 4-ch 3G-SDI Output (Each SDI Input with 2-ch 3G-SDI output)
    Analog XLR Balanced Audio
    Input Connector:
    XLR（Female）
    Output Connector:
    XLR（Male）
    Input / Output Impedance:
    10K Ohm
    Input capacitance LINE inputs:
    10 pF
    Max input/output voltage:
    1.228Vp-p （+4dBu）
    Frequency Response:
    20 Hz～24kHz @±3dB
    Sample Rates From:
    48kHz
    SNR:
    > 80dB
    Number of transmitter channel:
    2-CH XLR Audio Input, 2-ch XLR Audio Output
    Number of Receiver channel:
    2-ch XLR Audio Output , 2-CH XLR Audio Input

    10/100/1000 Ethernet
    Work Mode :
     Full  duplex/half duplex
    Data Rate :
    10/100/1000 Mbps  (AUTO)
    Connection terminal :
    RJ45
    Ethernet Number:
    2 ports 10/100/1000 Isolated Ethernet

    General index
    Input power:
    AC 90~240V
    Power consumption:
    < 15W
    Net weight:
    6KG /pair
    Dimension :
    Standard 1U Rack
    Case Material:
    Aluminum Alloy
    Work Temp:
    -20°C to 55°C
    Storage Temp:
    -20°C to 70 °C
    humidity:
    0 ~ 95% (non-condensing)
