Description:

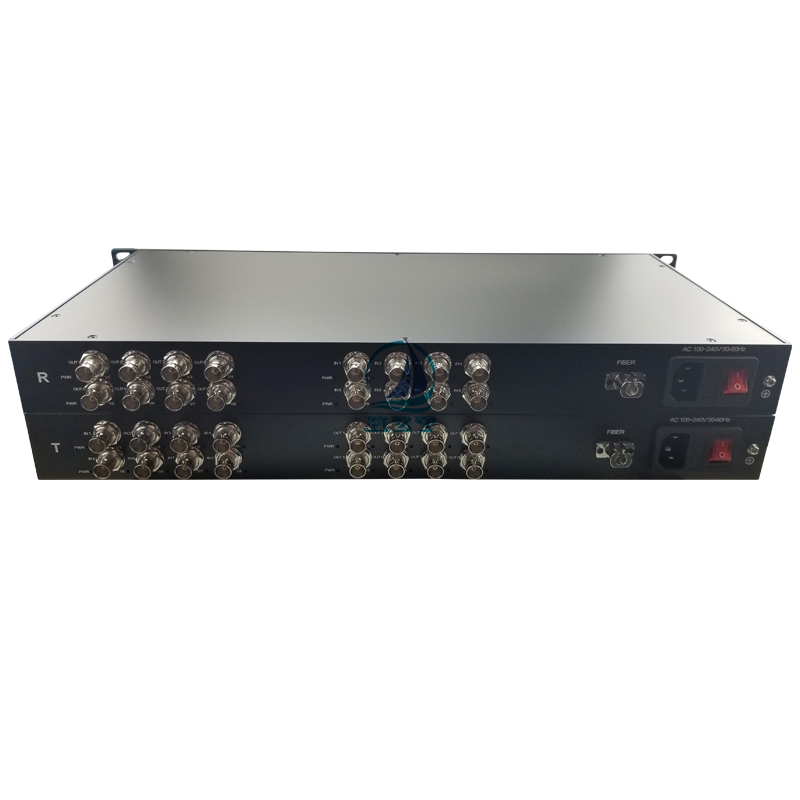

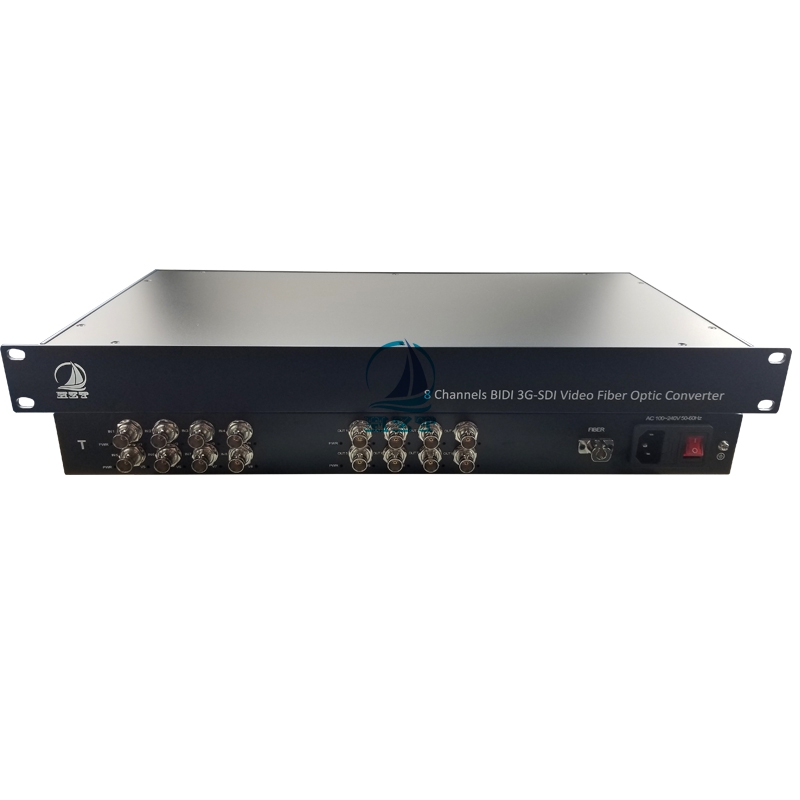

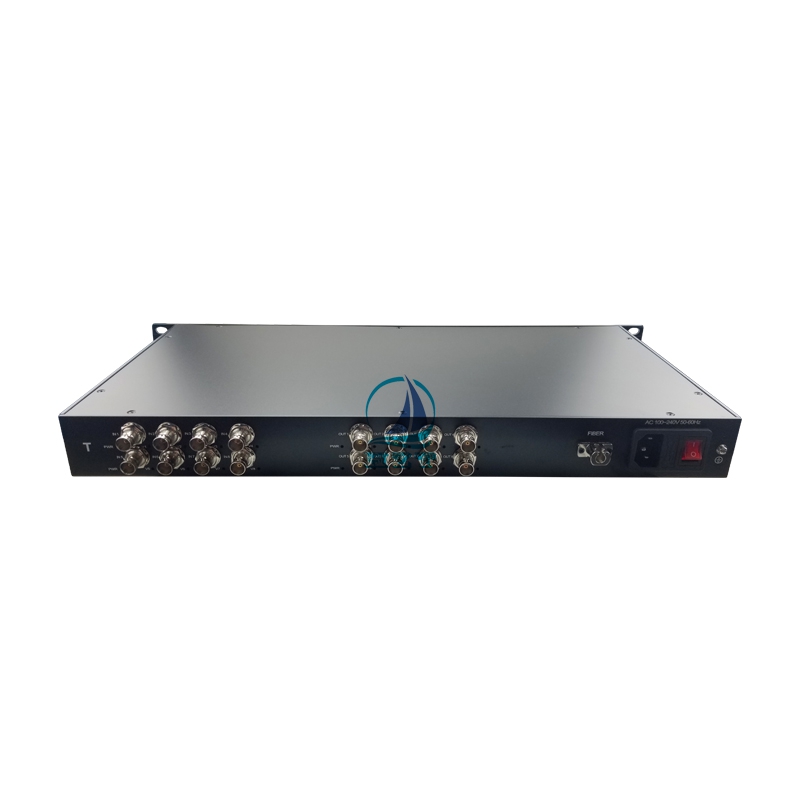

HZT-SDI-3G-8VVSM001 is developed by HZT technology and which has an ideal and economic solution for broadcasting applications. It can transmits 8-ch bi-directional full rate 3G/HD-SDI digital video signals over a single LC/ST/FC/SC Fiber. Each of the 3G/HD-SDI signals are fully isolated from each other and operate at a full 2.97 Gbps data rate. Each channel carries its own embedded audio. It can easy to play and look back on the camera side. To achieve no delay, no compression, high-quality signal extension of 10 kilometers. It fully compatible with 3G SDI signals.
Both transmitter and receiver provide equalizing and re-clocking at input unit in order to re-construct the signal for consistent quality. Besides, with HZT technology advanced fiber technology, SDI can easily pass pathological pattern to prove its complete transmission.
Features
● 8 Channels bi-directional 3G/HD-SDI High density digital audio/video fiber transmission
● Handle all Pathological patterns
● SD, HD, 3G input auto identification，support three data rate 270Mbit/s - 1.48Gbit/s - 3Gbit/s；support 1080P 3Gbps HD-SDI format
● Support SMPTE-424M 3Gbps HD-SDI、SMPTE-292M HD-SDI 、 SMPTE-259M SDI
● 10~60Km on single Mode Fiber transmission
● 1470~1610nm CWDM wavelengths optional.
Application
● 3G/HD-SDI monitor system;
● Animals, filming;
● Live on optical fiber transmission;
● TV remote studio;
● The military and public security command and control
