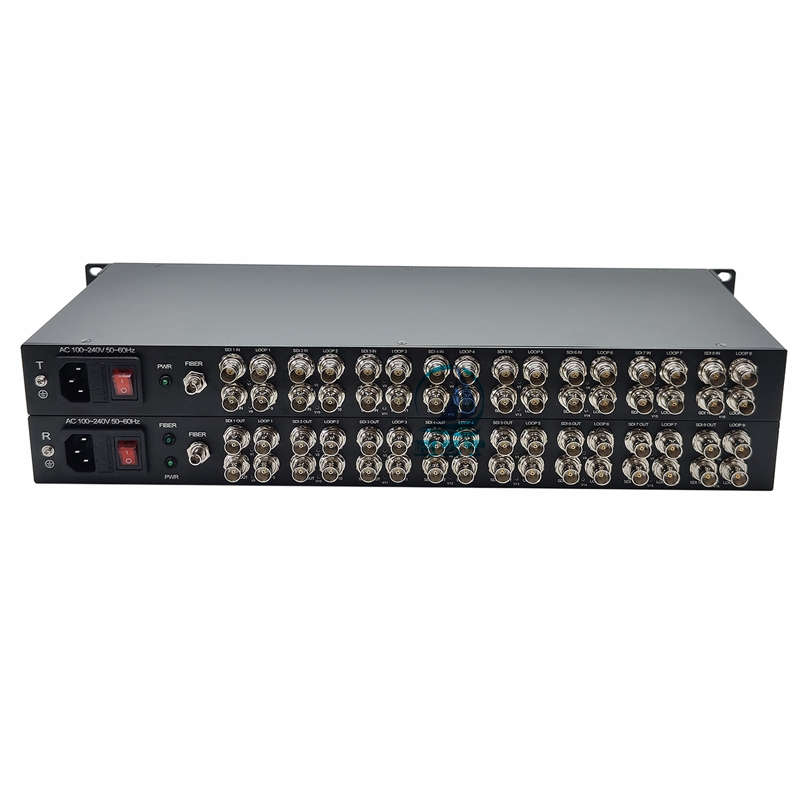

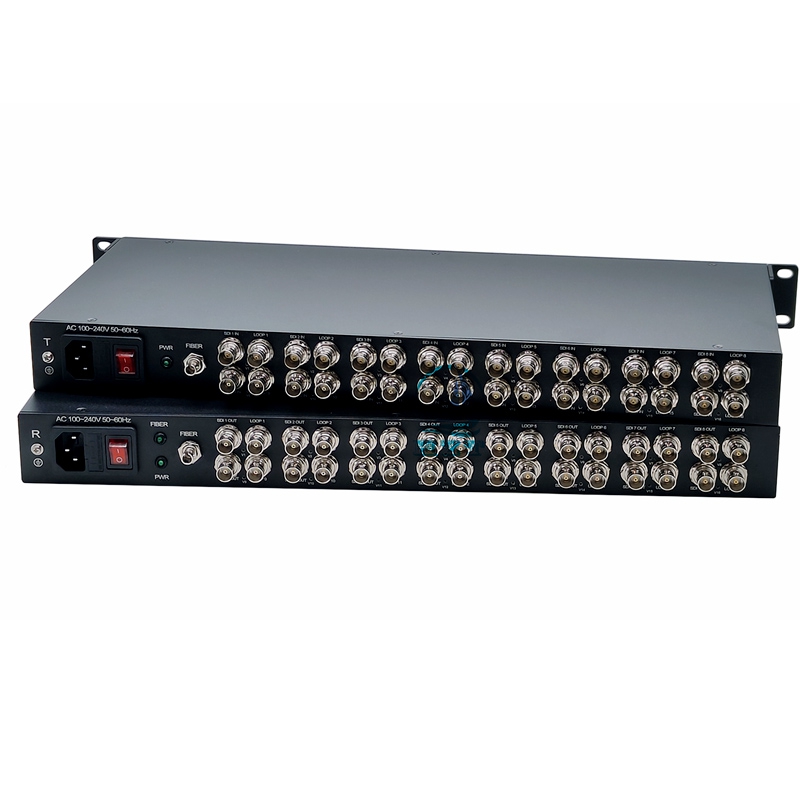

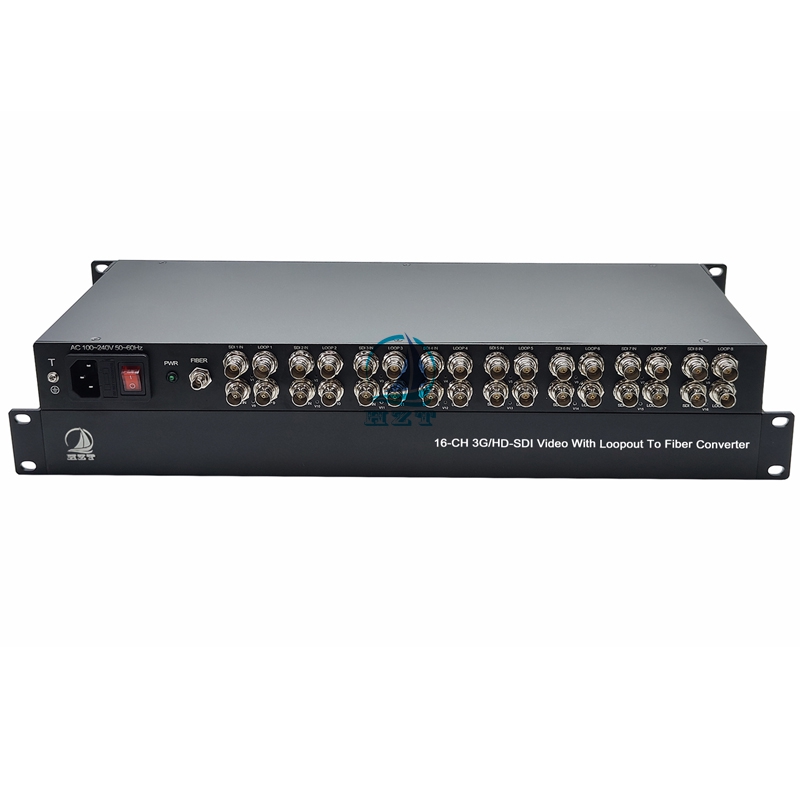

16-CH 3G-SDI Video Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    Description:
    HZT-SDI-3G-16VSM001 is developed by HZT technology and which has an ideal and economic solution for broadcasting applications. It can transmits 16-ch full rate 3G/HD-SDI digital video signals  over a single LC/ST/FC/SC Fiber. Each of the 3G/HD-SDI signals are fully isolated from each other and operate at a full 2.97 Gbps data rate.  Each channel carries its own embedded audio. It can easy to play and look back on the camera side. To achieve no delay, no compression, high-quality signal extension of 10 kilometers. It fully compatible with 3G SDI signals.
    Both transmitter and receiver provide equalizing and re-clocking at input unit in order to re-construct the signal for consistent quality. Besides, with HZT technology advanced fiber technology, SDI can easily pass pathological pattern to prove its complete transmission.
    Features
    ● 16 Channels 3G/HD-SDI High density digital audio/video fiber transmission
    ● Handle all Pathological patterns
    ● SD, HD, 3G input auto identification,support three data rate 270Mbit/s - 1.48Gbit/s - 3Gbit/s;support 1080P 3Gbps HD-SDI format
    ● Support SMPTE-424M 3Gbps HD-SDI、SMPTE-292M HD-SDI 、 SMPTE-259M SDI
    ● 10~60Km on single Mode Fiber transmission
    ● 1470~1610nm CWDM wavelengths optional.
    Application
    ● 3G/HD-SDI monitor system;
    ● Animals, filming;
    ● Live on optical fiber transmission;
    ● TV remote studio;
    ● The military and public security command and control
    Specification
    Fiber Optical
    Wavelength:
    CWDM Wavelength Optional
    Output Power:
    -5~0dBm(0±3dBm optional)
    Optical fiber:
    9/125u single mode
    Rx sensitivity:
    -18dBm ~ 0 dBm
    Optical connector:
    Single LC Fiber Connector (ST, SC, FC Optional)
    Distance:
    0~10KM   (SM Default)
    3G/HD-SDI Video
    Support :
    SDI level A and Level B
    SDI Signal Standard:
    SMPTE 424M, SMPTE 292M, SMPTE 259M
    Data Rates:
    270Mbit/s - 1.48Gbit/s - 3Gbit/s
    Cable Equalization:
    Automatic cable EQ (Belden 1694A cable)
    250m @ 270Mbit/s,
    140m @ 1.5Gbit/s,
    80m @ 3Gbit/s
    Connector:
    BNC 75 Ohm
    Number of Transmitter Channel:
    16-ch 3G-SDI Video Input with Loop-out
    Number of Receiver Channel:
    32-ch 3G-SDI Output (Each SDI input with 2-ch 3G-SDI Video output)

    General index

    Input power:
    AC 90~240V
    Power consumption:
    < 15W
    Net weight:
    6KG /pair
    Dimension:
    Standard 1U Rack
    Case Material:
    Aluminum Alloy
    Work Temp:
    -20°C to 55°C
    Storage Temp:
    -20°C to 70 °C
    humidity:
    0 ~ 95% (non-condensing)
