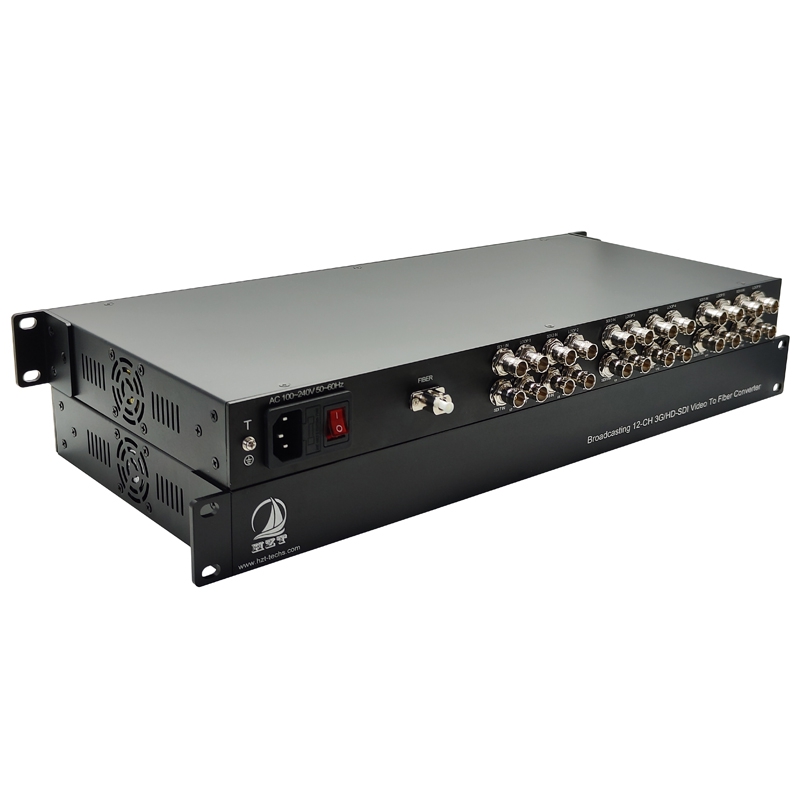

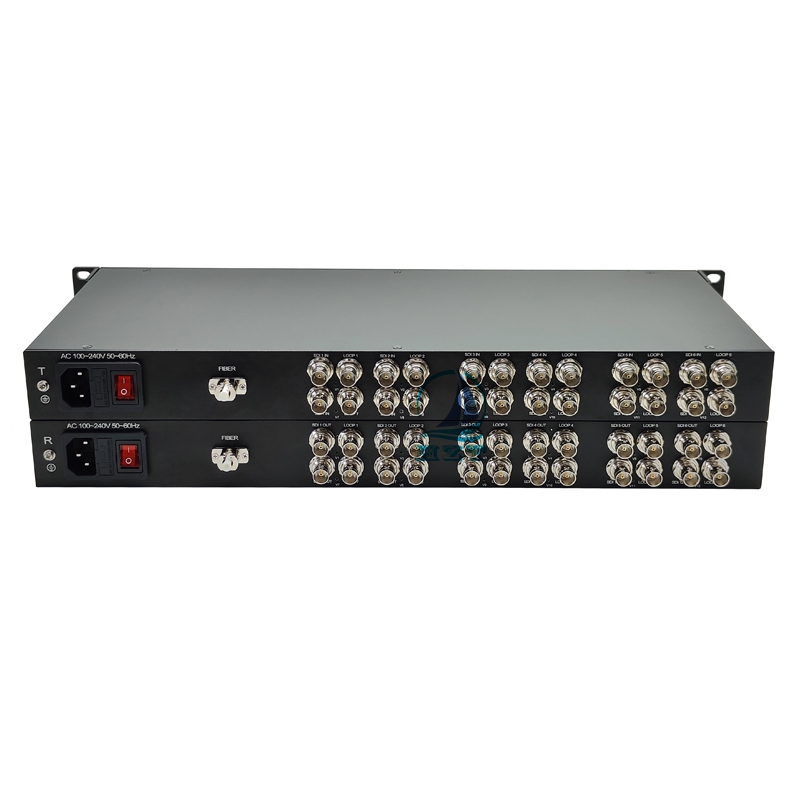

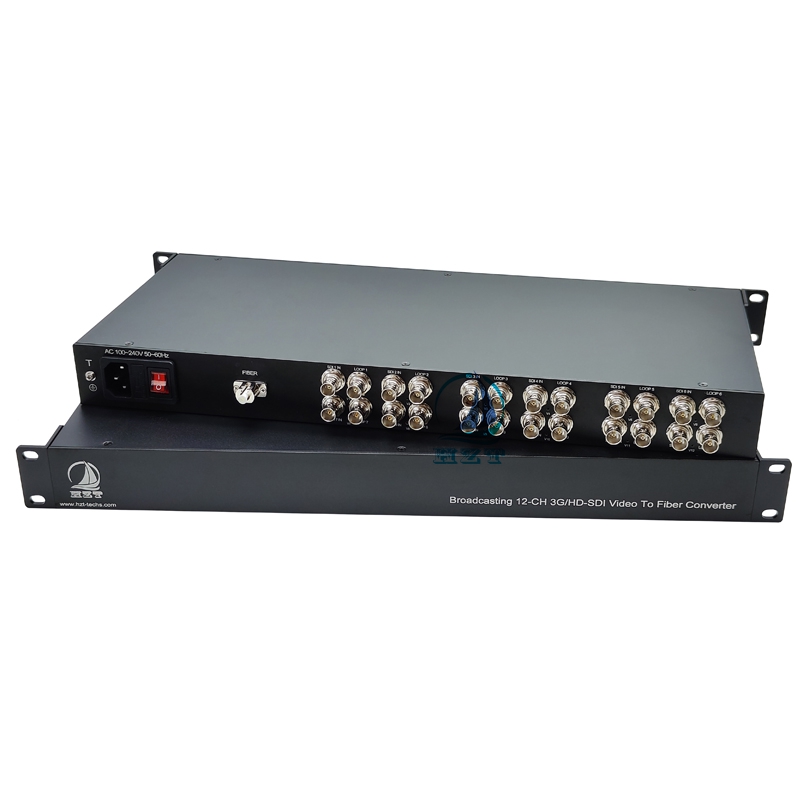

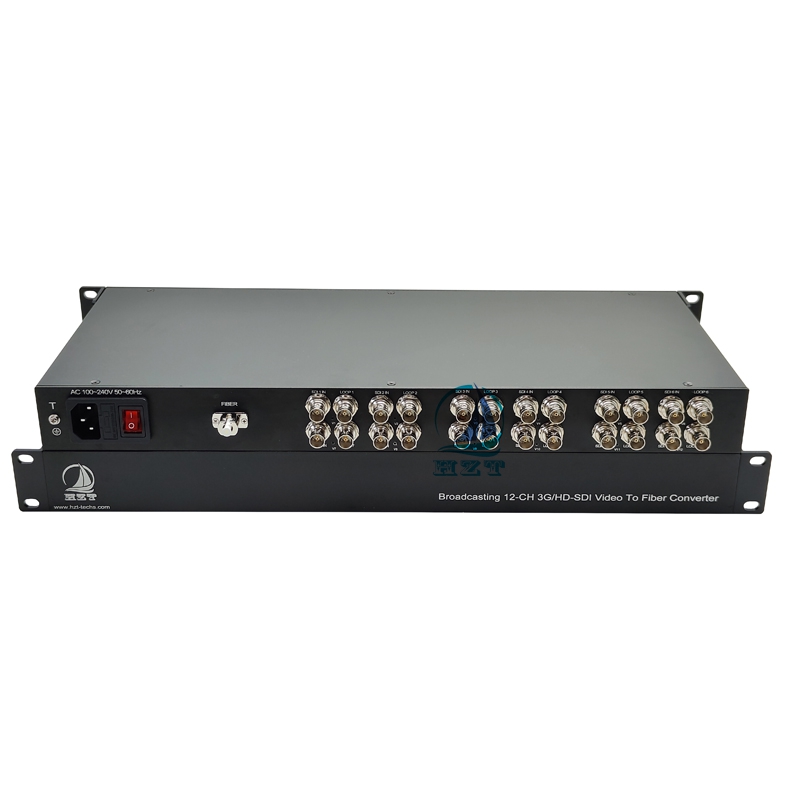

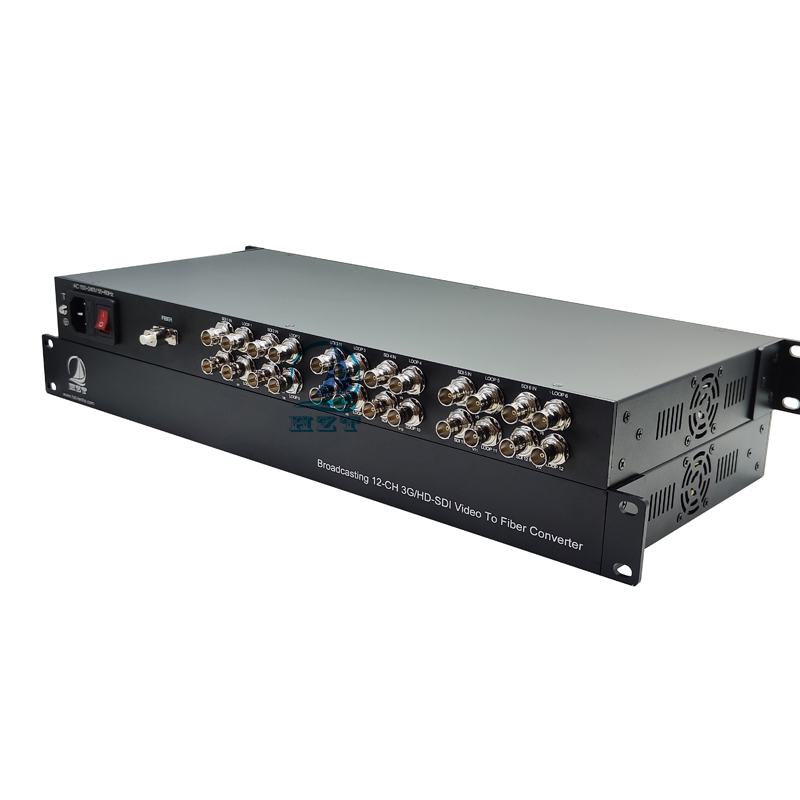

12-CH 3G/HD-SDI Video Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    Description:
    HZT-SDI-3G-12VSM001 is developed by HZT technology and which has an ideal and economic solution for broadcasting applications. It can transmits 12-ch full rate 3G/HD-SDI digital video signals  over a single LC/ST/FC/SC Fiber. Each of the 3G/HD-SDI signals are fully isolated from each other and operate at a full 2.97 Gbps data rate.  Each channel carries its own embedded audio. And each channel with 1-CH 3G/HD-SDI video loopout, it can easy to play and look back on the camera side. To achieve no delay, no compression, high-quality signal extension of 10 kilometers. It fully compatible with 3G SDI signals.
    Both transmitter and receiver provide equalizing and re-clocking at input unit in order to re-construct the signal for consistent quality. Besides, with HZT technology advanced fiber technology, SDI can easily pass pathological pattern to prove its complete transmission.
    Features
    ● 12 Channels 3G/HD-SDI High density digital audio/video fiber transmission
    ● Handle all Pathological patterns
    ● SD, HD, 3G input auto identification,support three data rate 270Mbit/s - 1.48Gbit/s - 3Gbit/s;support 1080P 3Gbps HD-SDI format
    ● Support SMPTE-424M 3Gbps HD-SDI、SMPTE-292M HD-SDI 、 SMPTE-259M SDI
    ● 10~60Km on single Mode Fiber transmission
    ● 1470~1610nm CWDM wavelengths optional.
    Application
    ● 3G/HD-SDI monitor system;
    ● Animals, filming;
    ● Live on optical fiber transmission;
    ● TV remote studio;
    ● The military and public security command and control
    Specification
    Fiber Optical
    Wavelength:
    CWDM Wavelength Optional
    Output Power:
    -5~0dBm(0±3dBm optional)
    Optical fiber:
    9/125u single mode
    Rx sensitivity:
    -18dBm ~ 0 dBm
    Optical connector:
    Single LC Fiber Connector (ST, SC, FC Optional)
    Distance:
    0~10KM   (SM Default)
    3G/HD-SDI Video
    Support :
    SDI level A and Level B
    SDI Signal Standard:
    SMPTE 424M, SMPTE 292M, SMPTE 259M
    Data Rates:
    270Mbit/s - 1.48Gbit/s - 3Gbit/s
    Cable Equalization:
    Automatic cable EQ (Belden 1694A cable)
    250m @ 270Mbit/s,
    140m @ 1.5Gbit/s,
    80m @ 3Gbit/s
    Connector:
    BNC 75 Ohm
    Number of Transmitter Channel:
    12-ch 3G-SDI Video Input(Each 3G-SDI Video with 1-ch 3G-SDI Video Loopout)
    Number of Receiver Channel:
    24-ch 3G-SDI Output (Each SDI input with 2-ch 3G-SDI output )

    General index

    Input power:
    AC 90~240V
    Power consumption:
    < 15W
    Net weight:
    6KG /pair
    Dimension:
    Standard 1U Rack
    Case Material:
    Aluminum Alloy
    Work Temp:
    -20°C to 55°C
    Storage Temp:
    -20°C to 70 °C
    humidity:
    0 ~ 95% (non-condensing)
