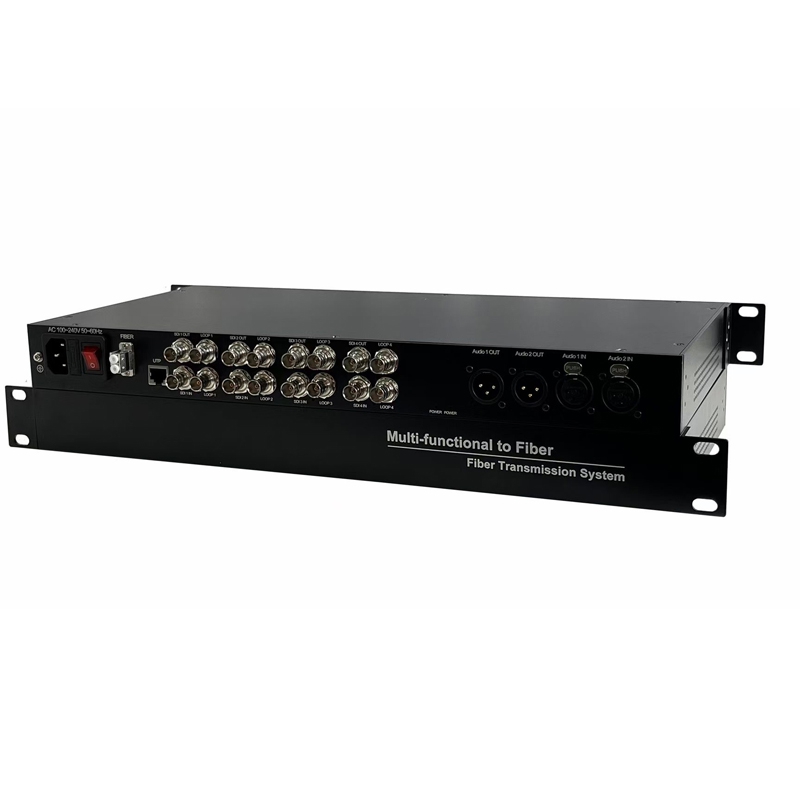

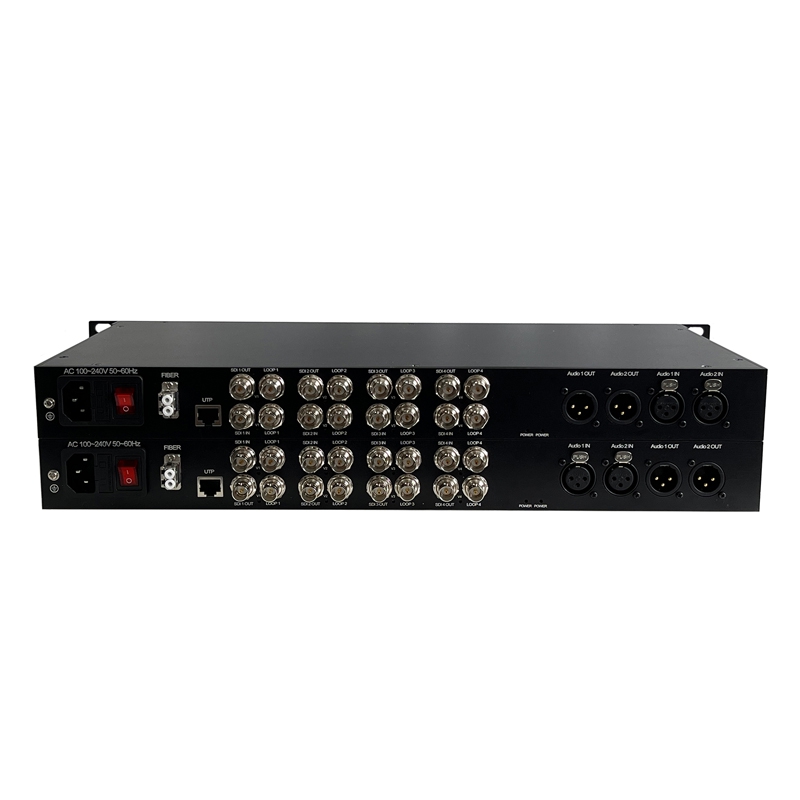

8-CH 3G-SDI Video+ Ethernet Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    Description

    HZT-SDI-3G-8V2AA1ESM002 is designed and produced by HZT technology and which has an ideal solution for broadcasting event production applications. It can transmits 8-ch Forward 3G/HD-SDI digital video signal+ 2-ch Bi-directional 3-pin XLR balanced Audio + 1 port 10/100/1000M Ethernet over Duplex LC Fiber Converter. It supports transmission of UHDTV/4K/8K/HDTV/SDTV SDI signal. Each of the 3G/HD-SDI signals are fully isolated from each other and operate at a full 2.97 Gbps data rate.  Each channel carries its own embedded audio.To achieve no delay, no compression, high-quality signal extension of 10 kilometers. It fully compatible with 3G SDI signals.

    Feature
    ● 8 Channel HD-SDl High density digital audio/video fiber transmission
    ● 2-ch BIDI Analog XLR balanced Audio
    ● Support Auto 10/100/1000 Ethernet
    ● Compatible with any Serial signal on coax up to 3.0 Gbps SDl Internal optics for 1 fiber transport through CWDM Multiplexing independent
    Full rate 3.0 GHz channels on separate CWDM Lasers
    ● Handle all Pathological patterns
    ● SD/HD-SDl input auto indentification, support three datarate 270Mbits -1.48Gbits -2.97Gbits,support 1080P 3Gbps HD-SDI format
    ● Support SMPTE-292M、SMPTE-259M、SMPTE-424M
    ● 10Km on single Mode Fiber transmission
    ● 1270-1610nm CWDM wavelengths.
    Fiber Optical
    Wavelength:
    CWDM Wavelength Optional
    Output Power:
    -5~0dBm(0±3dBm optional)
    Optical fiber:
    9/125u single mode
    Rx sensitivity:
    -18dBm ~ 0 dBm
    Optical connector:
    Duplex LC Connector, (Dual ST, SC, FC available.)
    Distance:
    0~10KM   (SM Default)
    3G/HD-SDI Video
    Support :
    SDI level A and Level B
    SDI Signal Standard:
    SMPTE 424M, SMPTE 292M, SMPTE 259M
    Data Rates:
    270Mbit/s - 1.48Gbit/s - 3Gbit/s
    Cable Equalization:
    Automatic cable EQ (Belden 1694A cable)
    250m @ 270Mbit/s,
    140m @ 1.5Gbit/s,
    80m @ 3Gbit/s
    Connector:
    BNC 75 Ohm
    Number of Transmitter Channel
    8-ch 3G-SDI Video Input (each SDI input with 1-ch SDI loopout)
    Number of Receiver Channel
    8-ch 3G-SDI Output (each SDI input with 2-ch SDI output)
    Analog XLR Balanced Audio
    Input Connector
    XLR(Female)
    Output Connector
    XLR(Male)
    Input / Output Impedance
    10K Ohm
    Input capacitance LINE inputs
    10 pF
    Max input/output voltage
    1.228Vp-p (+4dBu)
    Frequency Response
    20 Hz~24kHz @±3dB
    Sample Rates From
    48kHz
    SNR
    > 80dB
    Number of transmitter channel
    2-CH XLR Audio Input, 2-ch XLR Audio Output
    Number of Receiver channel
    2-ch XLR Audio Output , 2-CH XLR Audio Input

    10/100/1000 Ethernet

    Work Mode :
     Full  duplex/half duplex
    Data Rate :
    10/100/1000 Mbps  (AUTO)
    Connection terminal :
    RJ45

    General index

    Input power
    AC 90~240V
    Power consumption
    < 15W
    Net weight
    6KG /pair
    Dimension
    Standard 1U Rack
    Case Material:
    Aluminum Alloy
    Work Temp
    -20°C to 55°C
    Storage Temp
    -20°C to 70 °C
    humidity
    0 ~ 95% (non-condensing)
