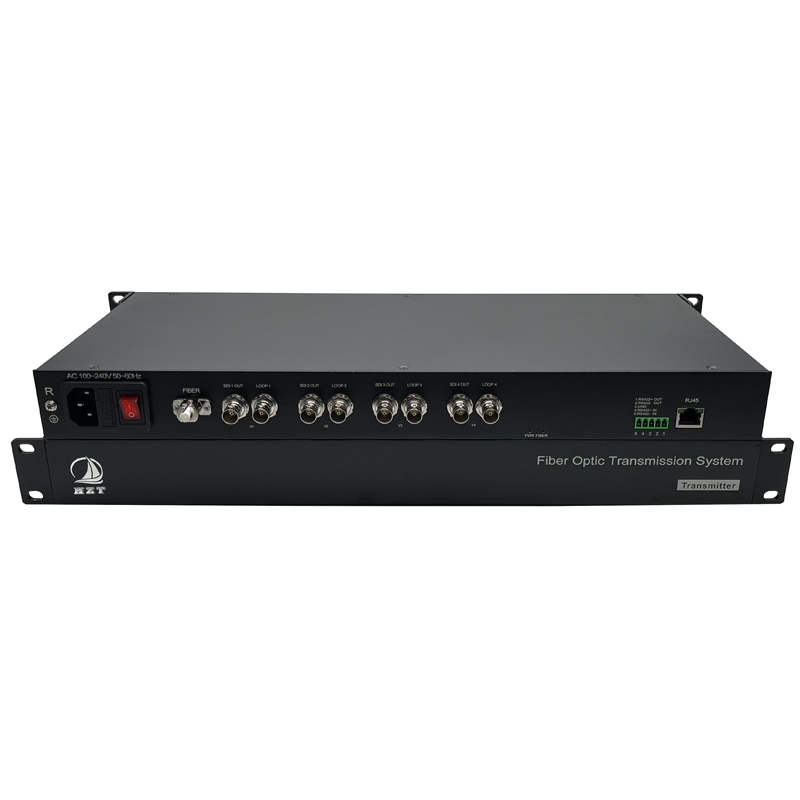

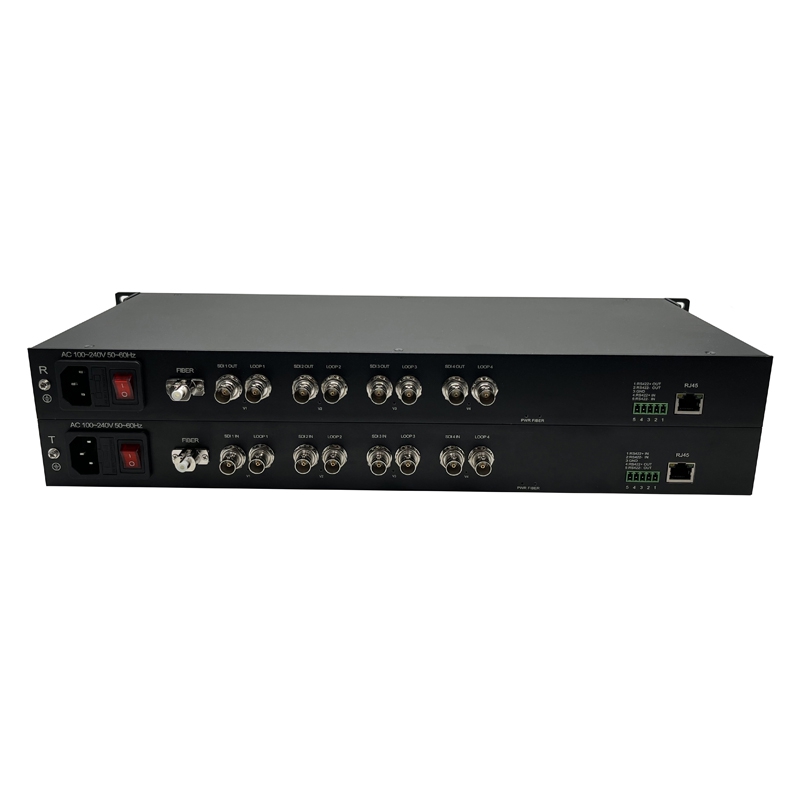

4-CH 3G-SDI+RS422+1000M Ethernet Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    1.Description:
    HZT-SDI-3G-4V1ESM001 4 channels SDI With 1 Port 10/100/1000 Ethernet To Fiber Converter is an ideal and economic solution for broadcasting or surveillance applications. It transmits 4-ch 3G/HD/SD-SDI Video signal+ 1 port 10/100/1000 Ethernet Over a Single ST/SC/LC/FC single mode Fiber Optical Cable. It supports transmission image of SDTV (143-540Mbps), HDTV (1.485Gbps) and HDTV (3Gbps, 1080p60).
    Both transmitter and receiver provide equalizing and reclocking at input unit in order to re-construct the signal for consistent quality. Besides, with HZT Technology advanced fiber technology, SDI can easily pass pathological pattern to prove its complete transmission.
    HZT SDI series fiber video converter are typically used in applications where the cameras have PTZ capabilities. Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment .
    2.Features
    ● 4 Channels 3G/HD-SDI High density digital audio/video fiber transmission
    ● Auto 10/100/1000 Ethernet
    ● Handle all Pathological patterns
    ● SD, HD, 3G input auto identification,support three datarate 270Mbit/s - 1.48Gbit/s - 3Gbit/s;support 1080P 3Gbps HD-SDI format
    ● Support SMPTE-424M 3Gbps HD-SDI、SMPTE-292M HD-SDI 、 SMPTE-259M SDI
    ● 10~60Km on single Mode Fiber transmission
    ● 1470~1610nm CWDM wavelengths optional.
    3.Application
    ● 3G/HD-SDI monitor system;
    ● Animals, filming;
    ● Live on optical fiber transmission;
    ● TV remote studio;
    ● The military and public security command and control
    Specification
    Fiber Optical
    Wavelength:
    CWDM Wavelength Optional
    Output Power:
    -5~0dBm(0±3dBm optional)
    Optical fiber:
    9/125u single mode
    Rx sensitivity:
    -18dBm
    Optical connector:
    Single LC, (ST, SC, FC Optional.)
    Distance:
    0~10KM   (SM Default)
    3G/HD-SDI Video
    Support :
    SDI level A and Level B
    SDI Signal Standard:
    SMPTE 424M, SMPTE 292M, SMPTE 259M
    Data Rates:
    270Mbit/s - 1.48Gbit/s - 3Gbit/s
    Cable Equalization:
    Automatic cable EQ (Belden 1694A cable)
    250m @ 270Mbit/s,
    140m @ 1.5Gbit/s,
    80m @ 3Gbit/s
    Connector:
    BNC 75 Ohm
    Number of Transmitter Channel:
    4-ch 3G-SDI Video Input with Loop-out
    Number of Receiver Channel:
    8-ch 3G-SDI Output (Each SDI input with 2-ch SDI output)
    RS422 Data
    Data protocol:
    RS422
    Data rate:
    0~500 Kbps
    Error rate:
    < 10-9
    Connector:
    Standard terminal lead

    10/100/1000 Ethernet

    Work Mode :
     Full  duplex/half duplex
    Data Rate :
    10/100/1000 Mbps  (AUTO)
    Connection terminal :
    RJ45

    General index

    Input power:
    AC 90~240V
    Power consumption:
    < 15W
    Net weight:
    6KG /pair
    Dimension :
    Standard 1U Rack
    Case Material:
    Aluminum Alloy
    Work Temp:
    -20°C to 55°C
    Storage Temp:
    -20°C to 70 °C
    humidity:
    0 ~ 95% (non-condensing)
