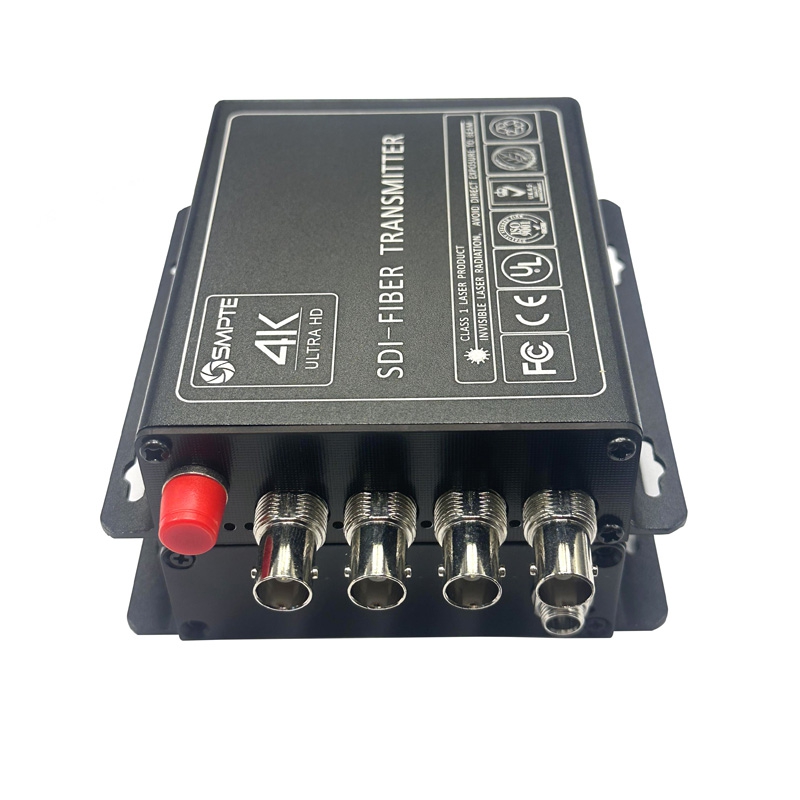

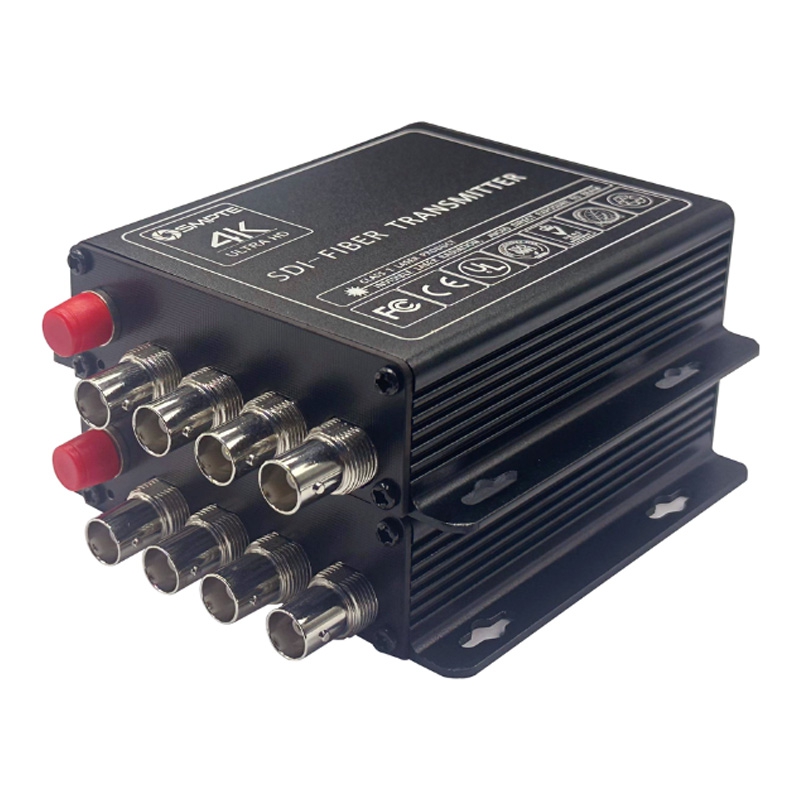

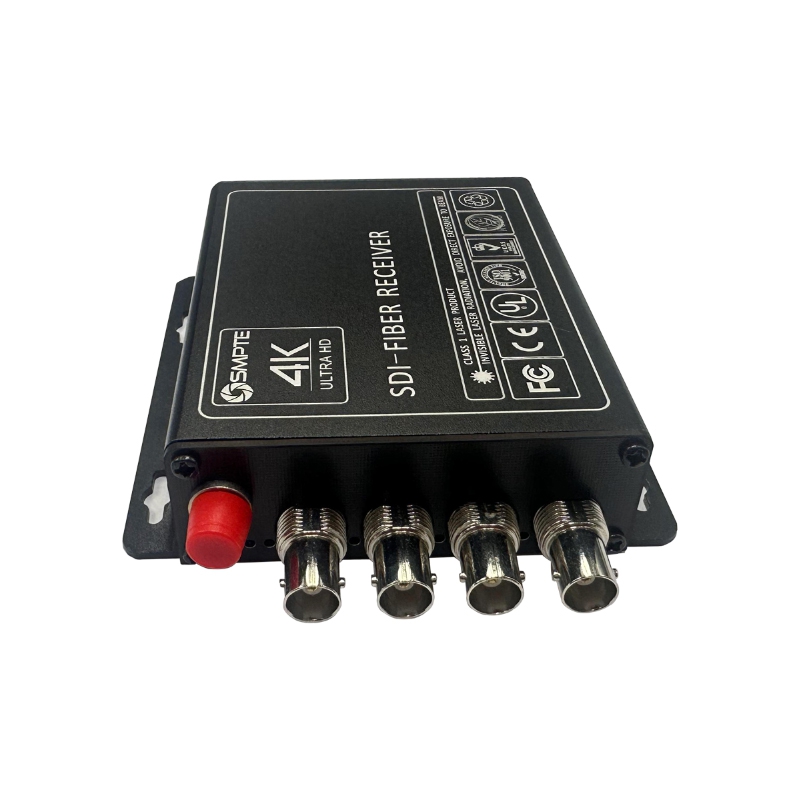

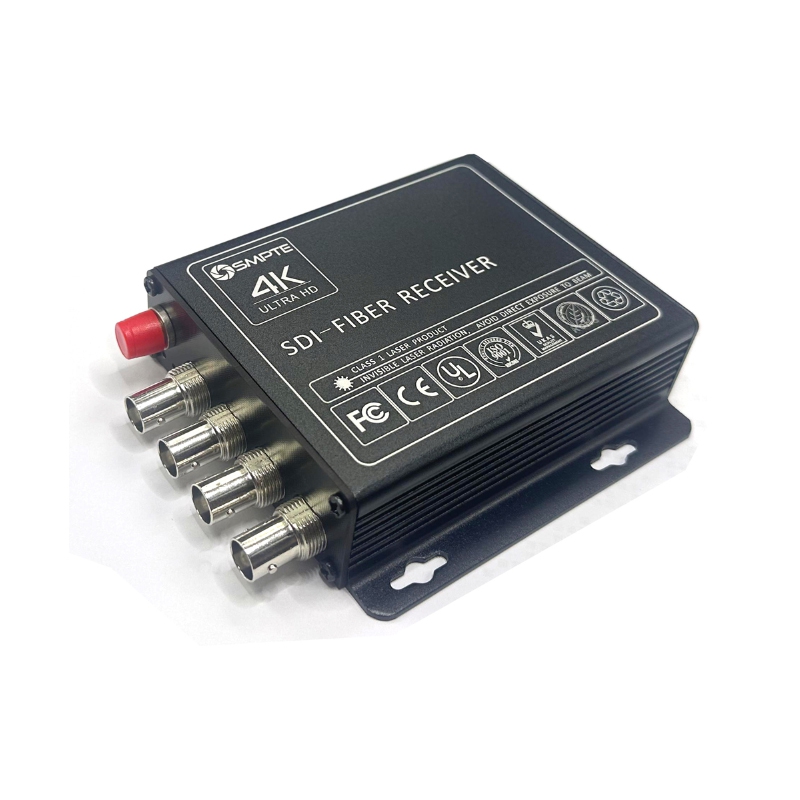

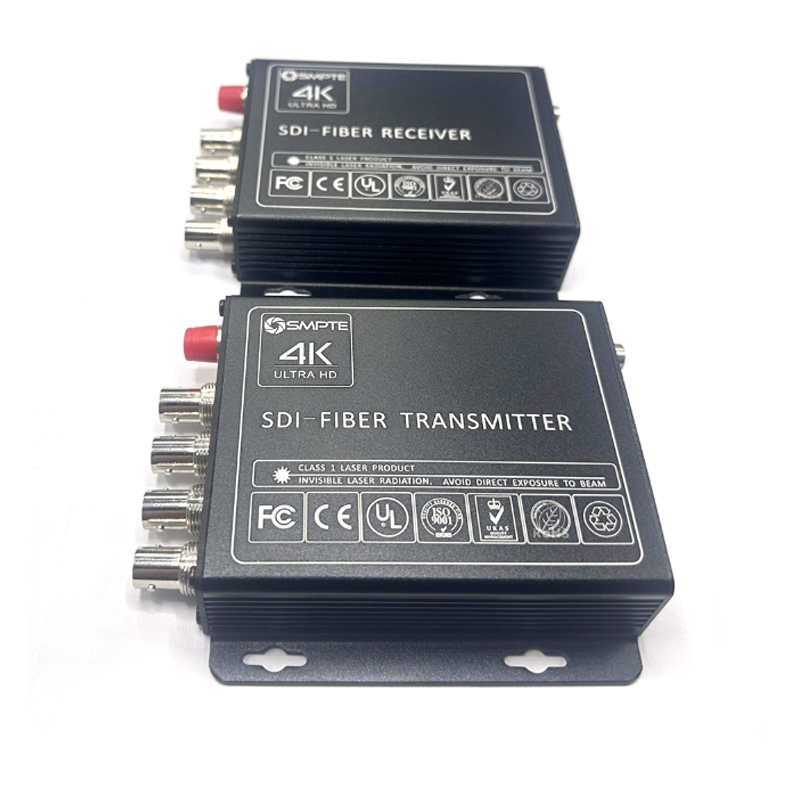

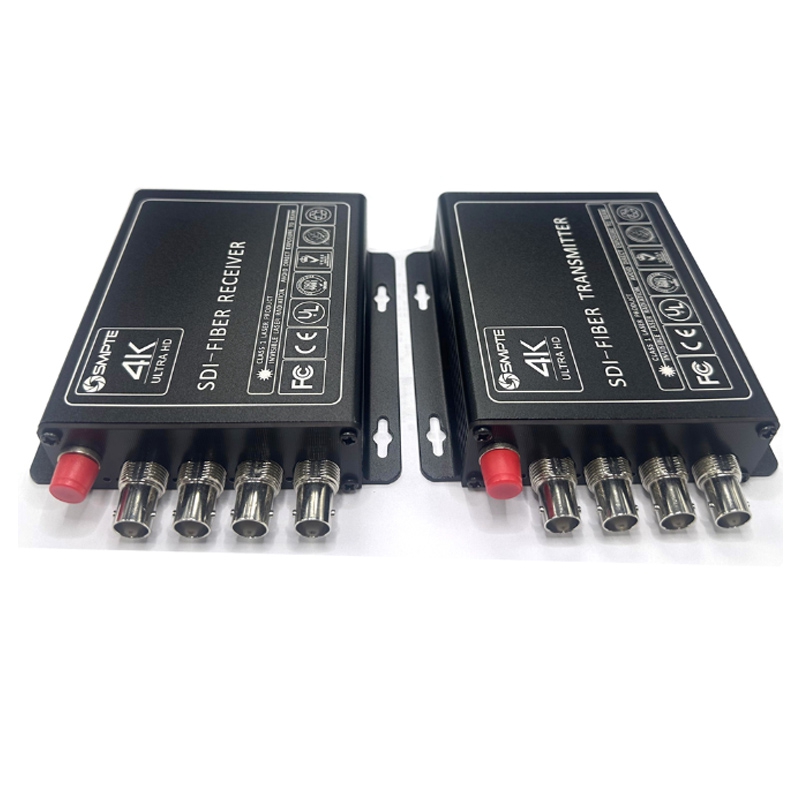

4-CH 3G/HD-SDI Video Fiber Converter

Part Number: HZT-SDI-3G-4V-SM001
  • Description
  • Technical data
  • Make an inquiry
    1.Description:
    HZT-SDI-3G-4VSM001 4 channels SDI To Fiber Converter is an ideal and economic solution for broadcasting or surveillance applications. It receives 4-ch 3G/HD/SD-SDI electrical input, perfectly converts electrical SDI signal to single mode optic SDI signal. It supports transmission image of SDTV (143-540Mbps), HDTV (1.485Gbps) and HDTV (3Gbps, 1080p60).
    Both transmitter and receiver provide equalizing and reclocking at input unit in order to re-construct the signal for consistent quality. Besides, with HZT Technology advanced fiber technology, SDI can easily pass pathological pattern to prove its complete transmission.
    HZT SDI series fiber video converter are typically used in applications where the cameras have PTZ capabilities. Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment .
    2.Features
    ● 4 Channels 3G/HD-SDI High density digital audio/video fiber transmission
    ● Handle all Pathological patterns
    ● SD, HD, 3G input auto identification,support three datarate 270Mbit/s - 1.48Gbit/s - 3Gbit/s;support 1080P 3Gbps HD-SDI format
    ● Support SMPTE-424M 3Gbps HD-SDI、SMPTE-292M HD-SDI 、 SMPTE-259M SDI
    ● 10~60Km on single Mode Fiber transmission
    ● 1470~1610nm CWDM wavelengths optional.
    3.Application
    ● 3G/HD-SDI monitor system;
    ● Animals, filming;
    ● Live on optical fiber transmission;
    ● TV remote studio;
    ● The military and public security command and control
     Specification
    Fiber Optical
    Wavelength:
    1310nm&1470nm~1610nm
    Output Power:
    -9~-3dBm /   -3~+2dBm
    Optical fiber:
    50/125u multimode,62.5/125u multimode,9/125u single mode
    Rx sensitivity:
    -18dBm
    Optical connector:
    Single LC fiber connector , (ST, SC, FC Optional )
    Distance:
    0~10KM   (SM Default),
    0~500M (MM)   /  20/40/60KM can customized.
    3G/HD-SDI Video
    Support :
    SDI level A and Level B
    SDI Signal Standard:
    SMPTE 424M, SMPTE 292M, SMPTE 259M
    Data Rates:
    270Mbit/s - 1.48Gbit/s - 3Gbit/s
    Cable Equalization:
    Automatic cable EQ (Belden 1694A cable)
    250m @ 270Mbit/s,
    140m @ 1.5Gbit/s,
    80m @ 3Gbit/s
    Connector:
    BNC 75 Ohm
    Number of Transmitter Channel:
    4-ch Forward 3G-SDI Video Input
    Number of Receiver Channel:
    4-ch Reverse 3G-SDI Video Output

    General index

    Input power:
     DC 12V
    Power consumption:
    < 5W
    Net weight:
    0.75Kg /pair
    Dimension:
    104 × 104 × 28mm
    Case Material:
    Aluminum Alloy
    Work Temp:
    0°C to 55°C
    Storage Temp:
    -10°C to 70 °C
    humidity:
    0 ~ 95% (non-condensing)
