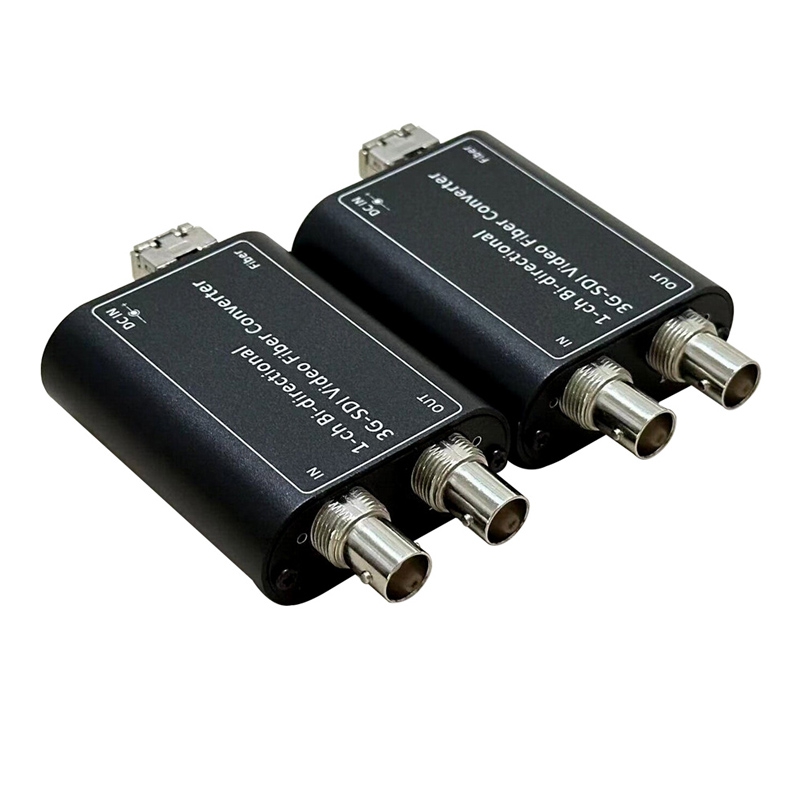

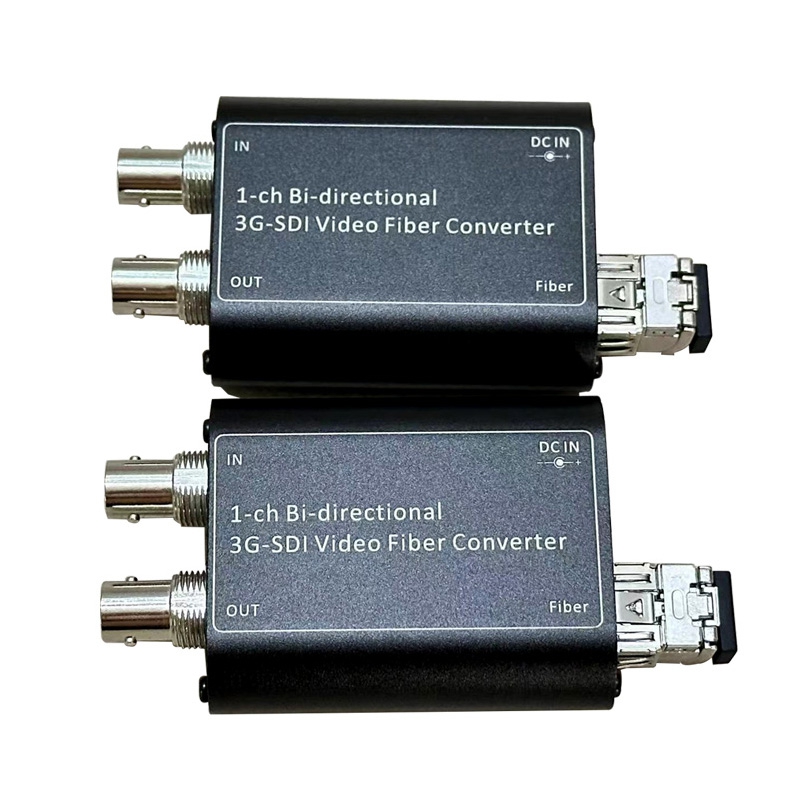

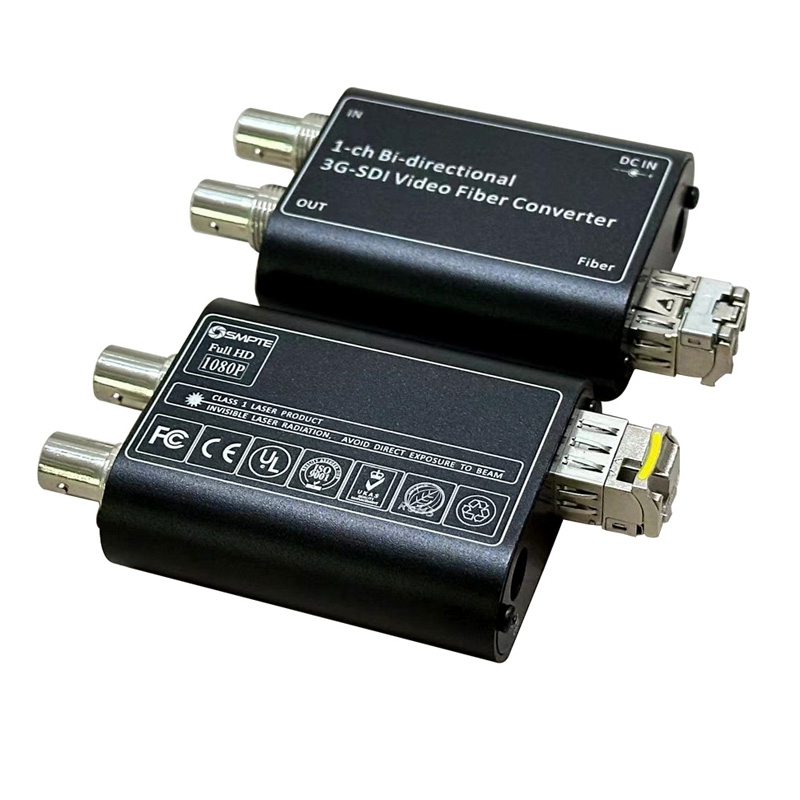

1-CH BIDI 3G-SDI Video Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    Description

    HZT-SDI-3G-1V1VSM001 1-CH BIDI 3G-SDI fiber video converter is an ideal and economic solution for broadcasting applications. It transmits 1-ch Bi-directional 3G/HD-SDI signal Over a single LC fiber optical cable. It supports transmission image of SDTV(143-540Mbps), HDTV (1.485Gbps) and HDTV (3Gbps, 1080p60).

    Both transmitter and receiver provide equalizing and Reclocking at input unit in order to re-construct the signal for consistent quality. Besides, with HZT Technology advanced fiber technology, SDI can easily pass pathological pattern to prove its complete transmission.

    HZT SDI series fiber video converter are typically used in applications where the cameras have PTZ capabilities. Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment .

    Features
    ● 1 channel Bi-directional video and audio transmission of digital video signal over optic fiber
    ● Handles pathological pattern
    ● Automatic cable equalization to ensure signal integrity
    ● Automatic reclocking 270Mbit/s-1.48Gbit/s -3Gbit/s
    ● Support signal type: 270Mbit/s to 3Gbit‘s according to SMPTE 424M, SMPTE 292M and SMPTE 259M standards
    ● Long transmission capability at least 10 km(6.2 miles), up to 80 km
    ● Terminal block power input for industrial application
    ● Supports hot swapping and hot plugging
    ● Simplex LC/PC single mode optical connection

    Typical applications:
    ● HD-SDl monitor system;
    ● Animals, filming;
    ● Live on optical fiber transmission;
    ● TV remote studio;
    ● The military and public security command and control
     Specification
    Fiber Optical
    Wavelength:
    1310nm&1470nm~1610nm
    Output Power:
    -9~-3dBm /   -3~+2dBm
    Optical fiber:
    50/125u multimode,62.5/125u multimode,9/125u single mode
    Rx sensitivity:
    -18dBm
    Optical connector:
    LC/PC
    Distance:
    0~10KM   (SM Default),
    0~500M (MM)   /  20/40/60KM can customized.
    3G/HD-SDI Video
    Support :
    SDI level A and Level B
    SDI Signal Standard:
    SMPTE 424M, SMPTE 292M, SMPTE 259M
    Data Rates:
    270Mbit/s - 1.48Gbit/s - 3Gbit/s
    Cable Equalization:
    Automatic cable EQ (Belden 1694A cable)
    250m @ 270Mbit/s,
    140m @ 1.5Gbit/s,
    80m @ 3Gbit/s
    Connector:
    BNC 75 Ohm
    Number of Transmitter Channel:
    1-CH 3G-SDI Video Input + 1-CH 3G-SDI Video Output
    Number of Receiver Channel:
    1-ch 3G-SDI Video Output + 1-CH 3G-SDI Video Input

    General index

    Input power:
     DC 12V
    Power consumption:
    < 5W
    Net weight:
    440g /pair
    Dimension:
    64 × 52 × 22mm
    Case Material:
    Aluminum Alloy
    Work Temp:
    0°C to 55°C
    Storage Temp:
    -20°C to 70 °C
    humidity:
    0 ~ 95% (non-condensing)
