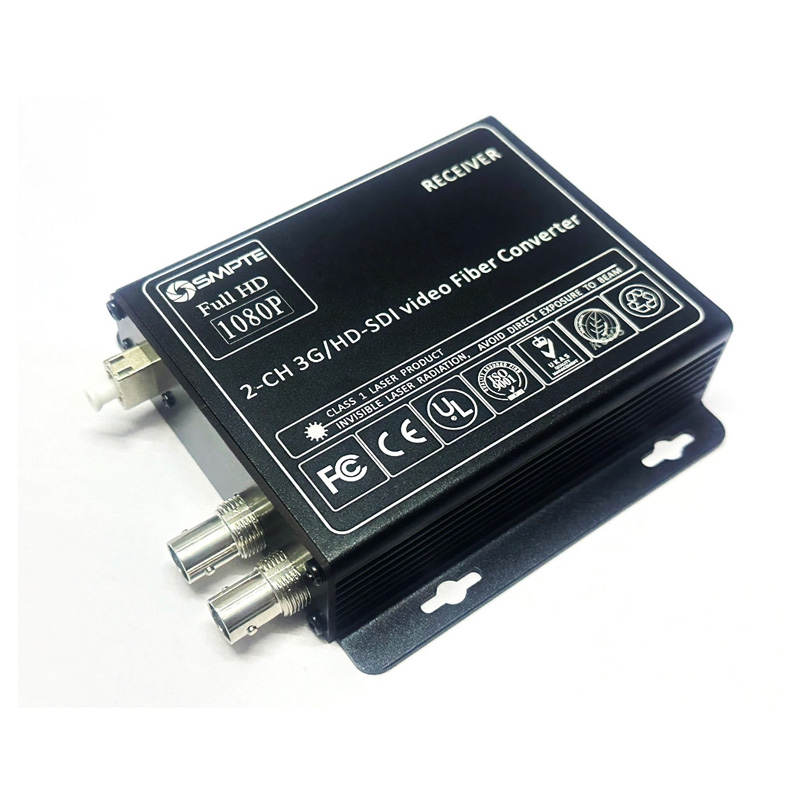

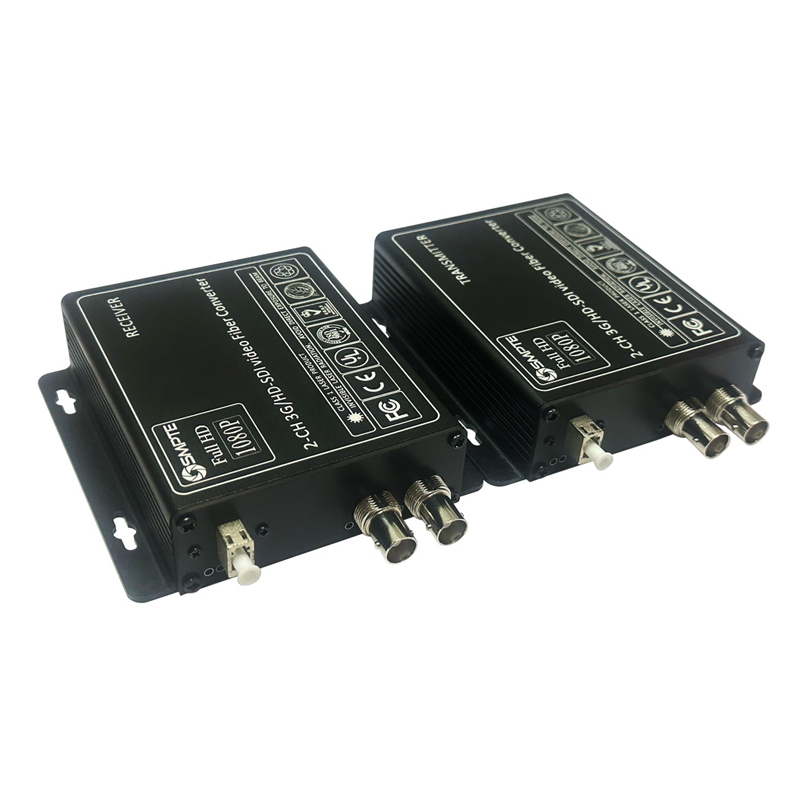

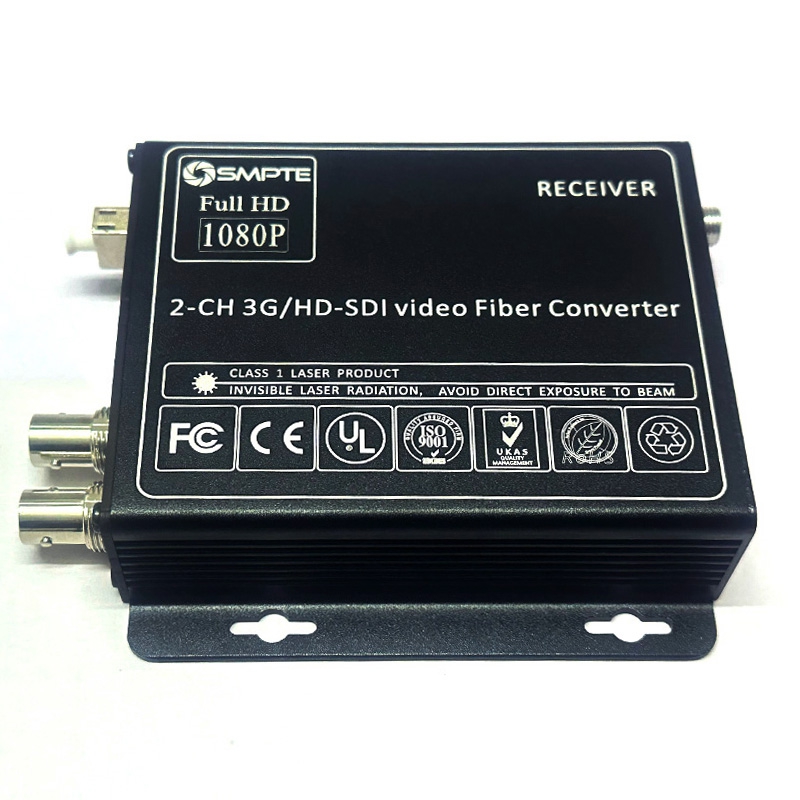

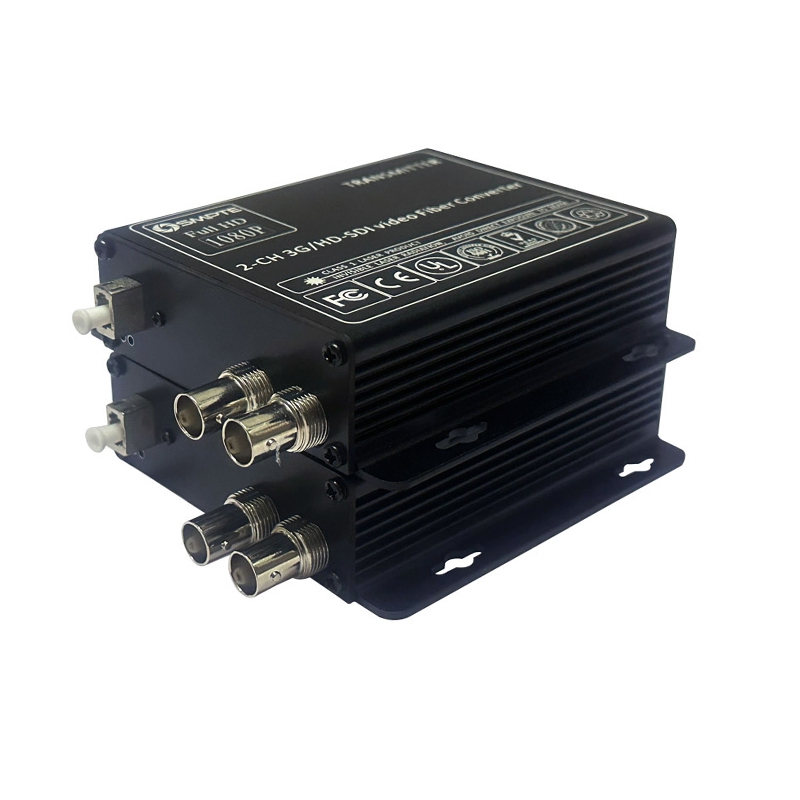

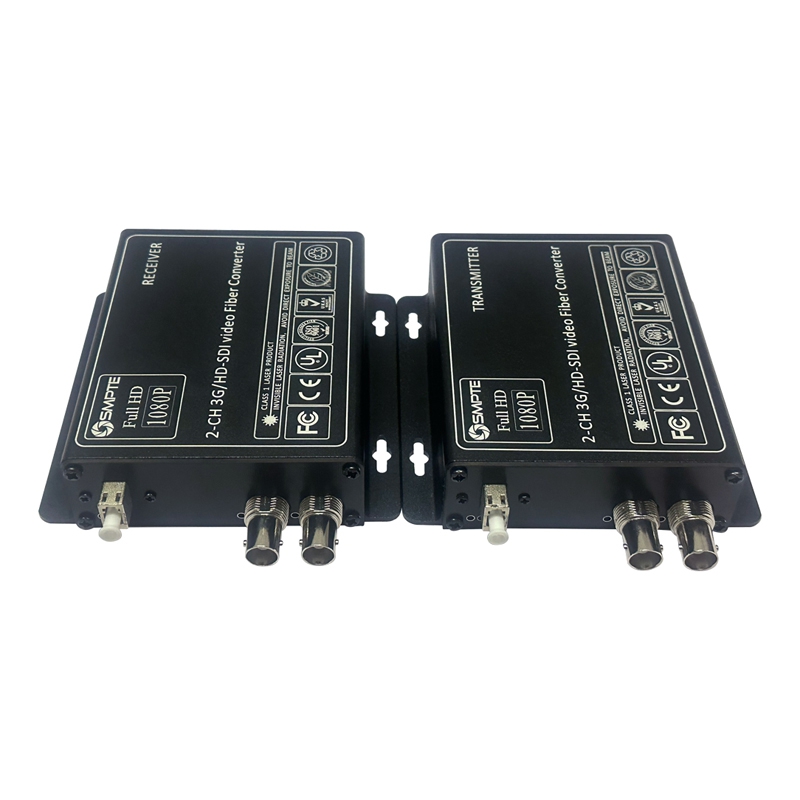

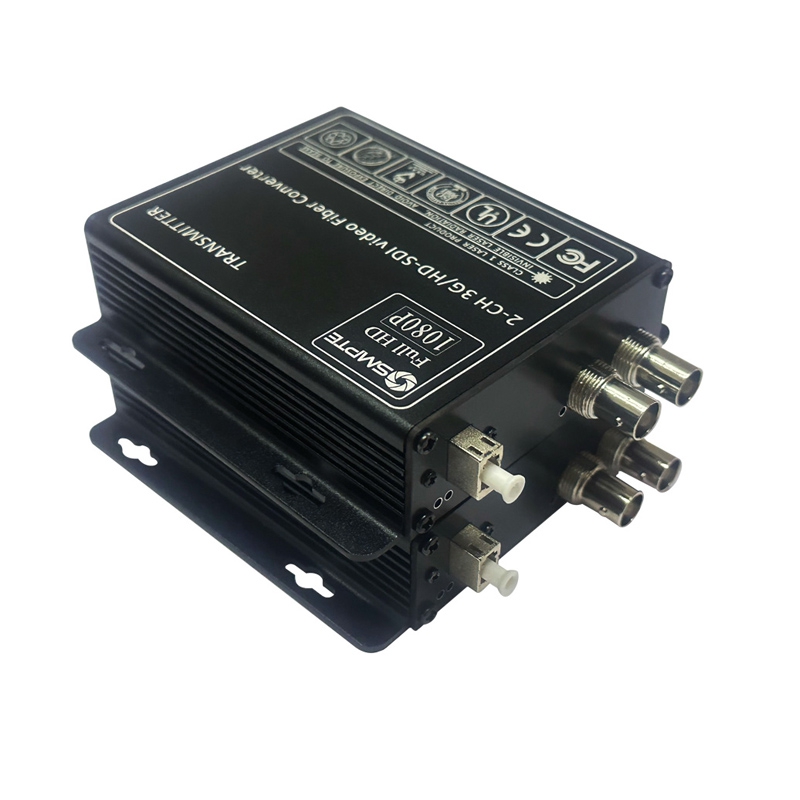

2-CH 3G/HD-SDI Video Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    Description

    2-ch 3G-SDl Video To Fiber Optical Converter is an ideal and economic solution for broadcasting or surveilance applications. it receives 2 Channels 3G/HD/SD-SDl electrical input, perfectly converts electrical SDl signal to single mode optical SDl signal. lt supports transmission image of SDTV (143-540MbpS), HDTV (1.485Gbps) and HDTV (3Gbps, 1080p60).Both transmiter and receiver provide equalizing and reclocking at input unit in order to re-construct the signal for consistent qualitly. Besides with HZT advanced fiber technology, VSDl can easily pass pathological pattern to prove its complete transmission.

    Features

    2 Channel 3G/HD-SDl High density digital audio/video fiber transmission
    Handle all Pathological patterns
    SD, HD, 3G input auto indentiication, support three datarate 270Mbit/s - 1.48Gbits - 3Gbits; support 1080P 3Gbps HD-SDl format
    Support SMPTE-424M 3GbpS HD-SDI、SMPTE-292M HD-SDI、SMPTE-259M SDI
    10-60Km on single Mode Fiber transmission
    1470~1610nm CWDM wavelengths optional.
     Specification
    Fiber Optical
    Wavelength:
    1310nm&1470nm~1610nm
    Output Power:
    -9~-3dBm /   -3~+2dBm
    Optical fiber:
    50/125u multimode,62.5/125u multimode,9/125u single mode
    Rx sensitivity:
    -18dBm
    Optical connector:
    LC/PC
    Distance:
    0~10KM   (SM Default),
    0~500M (MM)   /  20/40/60KM can customized.
    3G/HD-SDI Video
    Support :
    SDI level A and Level B
    SDI Signal Standard:
    SMPTE 424M, SMPTE 292M, SMPTE 259M
    Data Rates:
    270Mbit/s - 1.48Gbit/s - 3Gbit/s
    Cable Equalization:
    Automatic cable EQ (Belden 1694A cable)
    250m @ 270Mbit/s,
    140m @ 1.5Gbit/s,
    80m @ 3Gbit/s
    Connector:
    BNC 75 Ohm
    Number of Transmitter Channel:
    2-ch 3G-SDI Video Input
    Number of Receiver Channel:
    2-ch 3G-SDI Video Output

    General index

    Input power:
     DC 12V
    Power consumption:
    < 5W
    Net weight:
    0.75Kg /pair
    Dimension:
    104 × 104 × 28mm
    Case Material:
    Aluminum Alloy
    Work Temp:
    0°C to 55°C
    Storage Temp:
    -10°C to 70 °C
    humidity:
    0 ~ 95% (non-condensing)
