Description

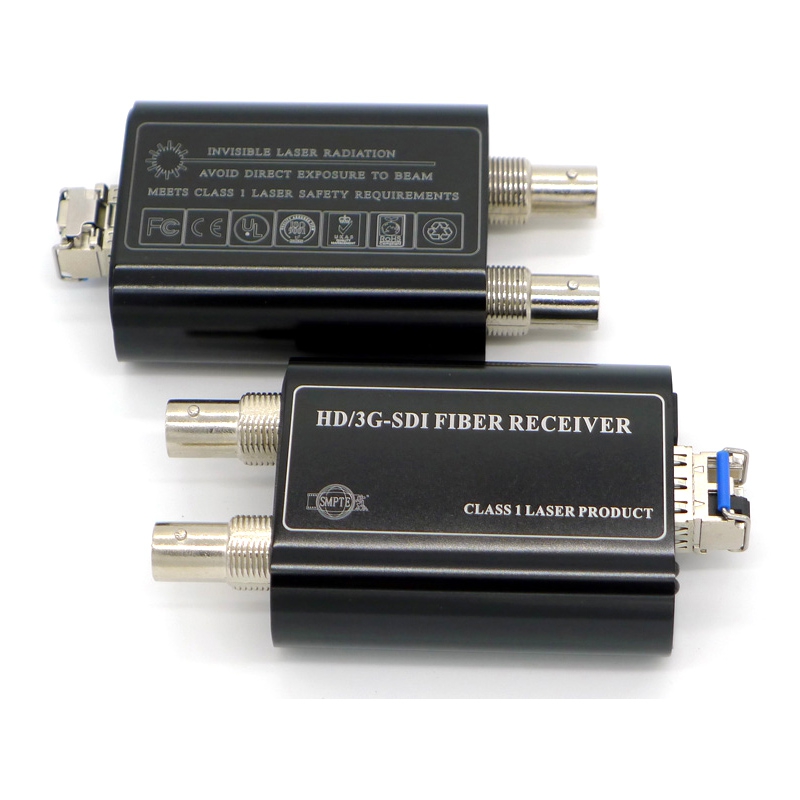

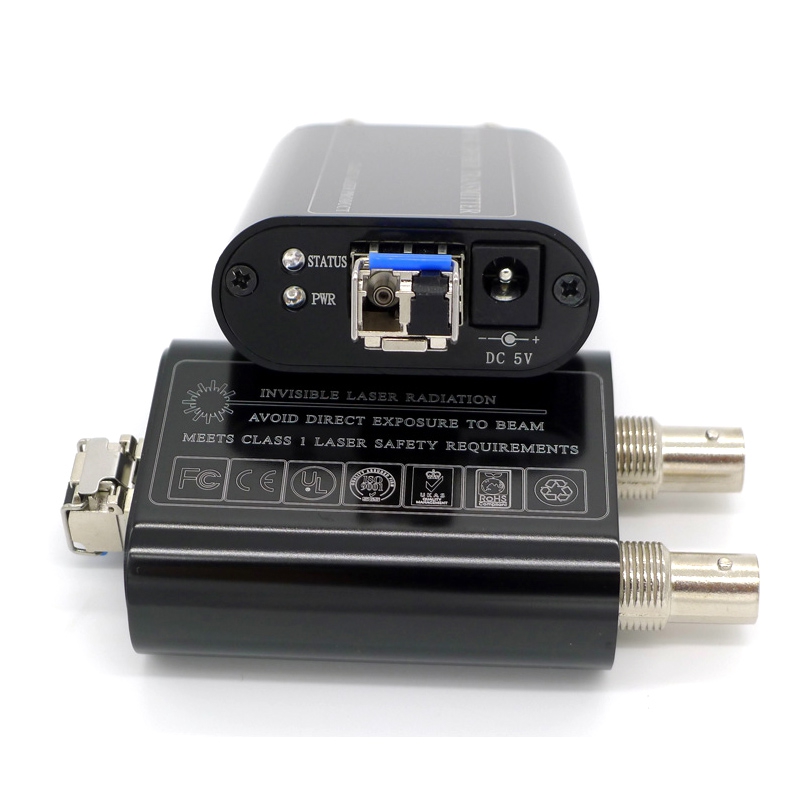

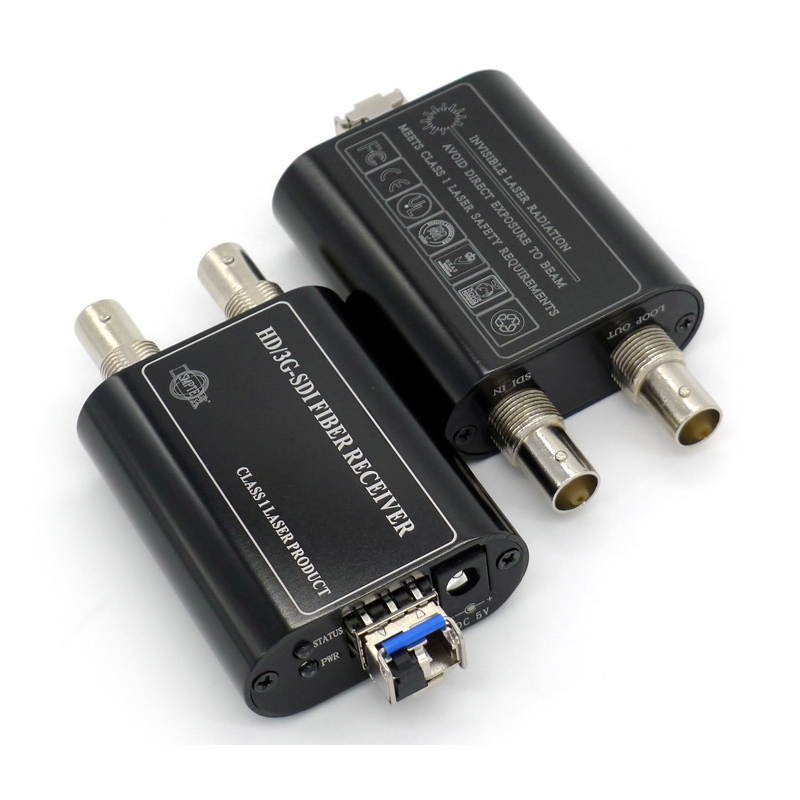

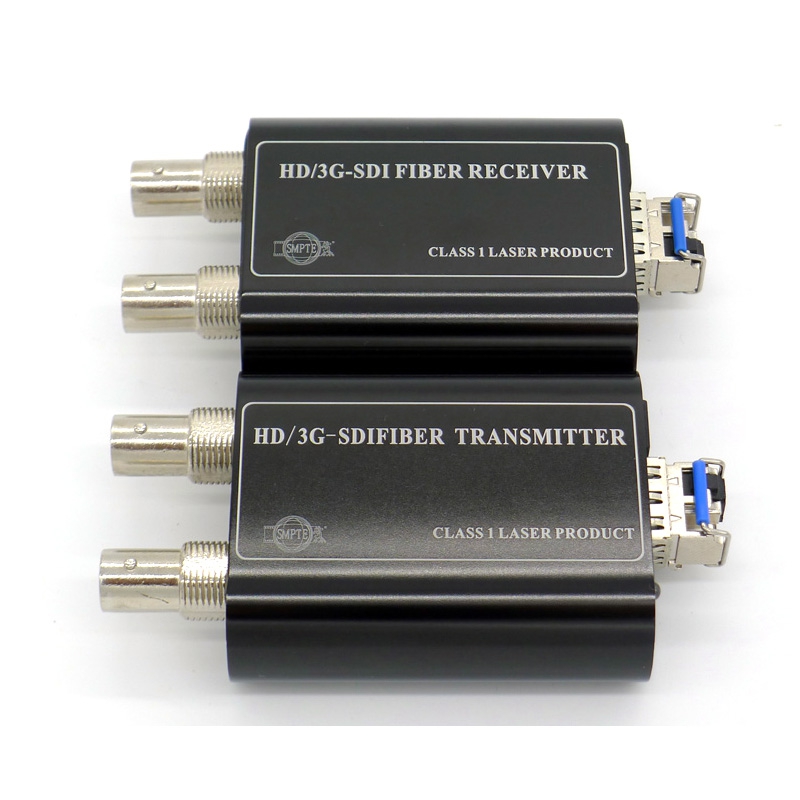

HZT-SDI-3G-1VSM001 3G-SDI fiber video converter is an ideal and economic solution for broadcasting or surveillance applications. It receives one 3G/HD-SDI electrical input, perfectly converts electrical SDI signal to single mode optic SDI signal. It supports transmission image of SDTV(143-540Mbps), HDTV (1.485Gbps) and HDTV (3Gbps, 1080p60).
Both transmitter and receiver provide equalizing and Reclocking at input unit in order to re-construct the signal for consistent quality. Besides, with HZT Technology advanced fiber technology, SDI can easily pass pathological pattern to prove its complete transmission.
HZT SDI series fiber video converter are typically used in applications where the cameras have P/T/Z capabilities. Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment .
Features
● 1 channel video and audio transmission of digital video signal over optic fiber
● Handles pathological pattern
● Automatic cable equalization to ensure signal integrity
● Automatic reclocking 270Mbit/s-1.48Gbit/s -3Gbit/s
● Support signal type: 270Mbit/s to 3Gbit‘s according to SMPTE 424M, SMPTE 292M and SMPTE 259M standards
● Long transmission capability at least 10 km(6.2 miles), up to 80 km
● Terminal block power input for industrial application
● Supports hot swapping and hot plugging
● Simplex LC/PC single mode optical connection
Typical applications:
● HD-SDl monitor system;
● Animals, filming;
● Live on optical fiber transmission;
● TV remote studio;
● The military and public security command and control
