Product Overview:

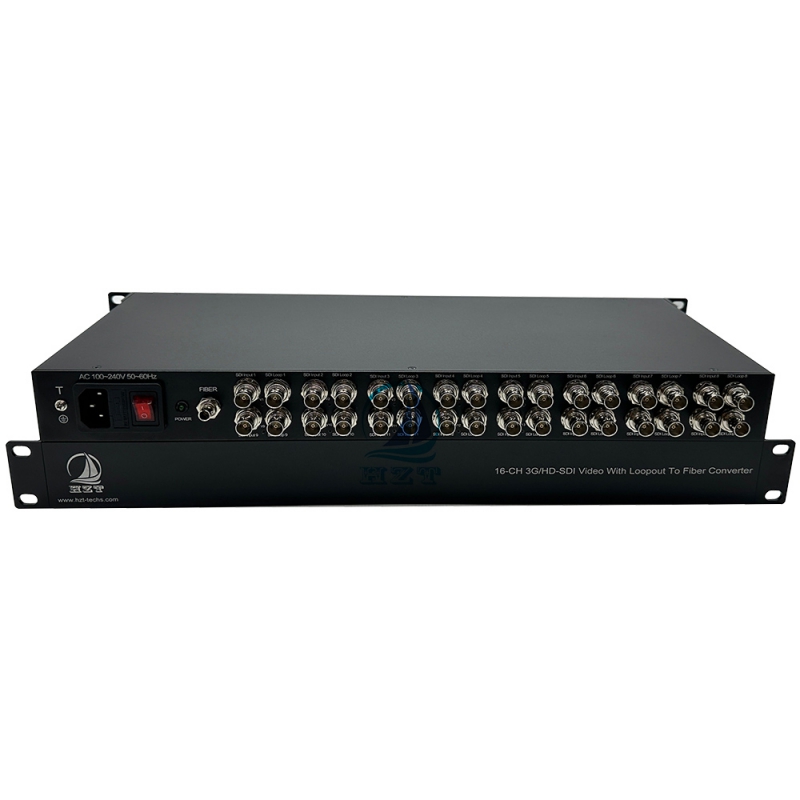

The HZT-SDI-3G-16V-SM001 from HZT Technology is a high-density fiber optic multiplexer, providing an ideal and cost-effective solution for demanding broadcast and live production environments. This system multiplexes 16 channels of full-rate, uncompressed 3G-SDI video—each with embedded audio—onto a single fiber with a robust ST-ST interface, ensuring a secure and reliable connection for crystal-clear signal transmission over distances of up to 10km.
Engineered for critical performance, it guarantees zero latency and handles all pathological patterns, making it the perfect choice for applications where signal integrity is paramount.
Key Advantages:
● High-Density Transmission: Multiplexes 16 full-bandwidth 3G-SDI signals over a single ST-ST fiber, maximizing fiber infrastructure efficiency.
Lossless & Zero-Latency: Uncompressed signal transmission ensures broadcast-quality video without any delay.
● Superior Signal Integrity: Features input equalization and re-clocking to handle all pathological patterns, guaranteeing robust SMPTE-compliant signal transmission.
● Extensive Compatibility: Auto-detects SD, HD, and 3G-SDI signals, fully supporting SMPTE 259M, 292M, and 424M standards.
● Flexible Deployment: Supports transmission distances of up to 60km over single-mode fiber, with optional CWDM wavelengths for network capacity expansion.
Technical Specifications:
● Model: HZT-SDI-3G-16VSM001
● Video Channels: 16 x 3G/HD/SD-SDI
● Supported Standards: SMPTE 424M (3G-SDI), SMPTE 292M (HD-SDI), SMPTE 259M (SD-SDI)
● Data Rates: 270 Mbps, 1.485 Gbps, 2.97 Gbps (Auto-Sensing)
● Fiber Interface: ST (Straight Tip) - ST (LC, FC, SC also available)
● Fiber Type / Distance: Single-Mode, up to 10 km
● Wavelength Options: 1470nm to 1610nm (CWDM)
● Key Features: Uncompressed & Zero-Latency Transmission, Handles All Pathological Patterns, Input Equalization & Re-clocking, Individual Embedded Audio per Channel.
Applications:
● Broadcast Studios & Remote Production
● Live Event Fiber Optic Transmission Systems
● Military & Public Security Command and Control Centers
● Sports and Large-Scale Event Production
● Wildlife Documentary Filming
