Description:

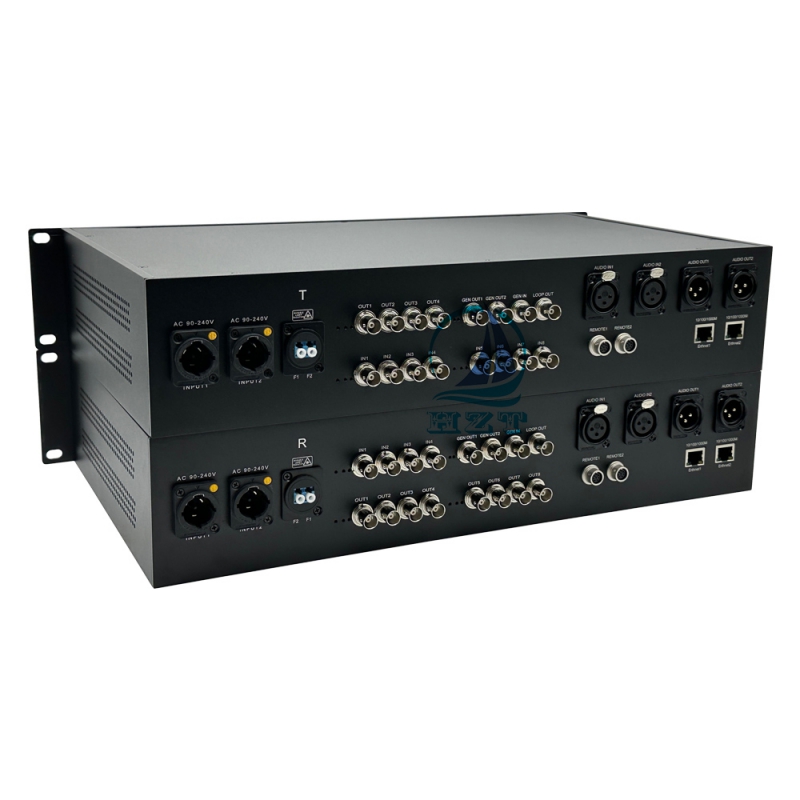

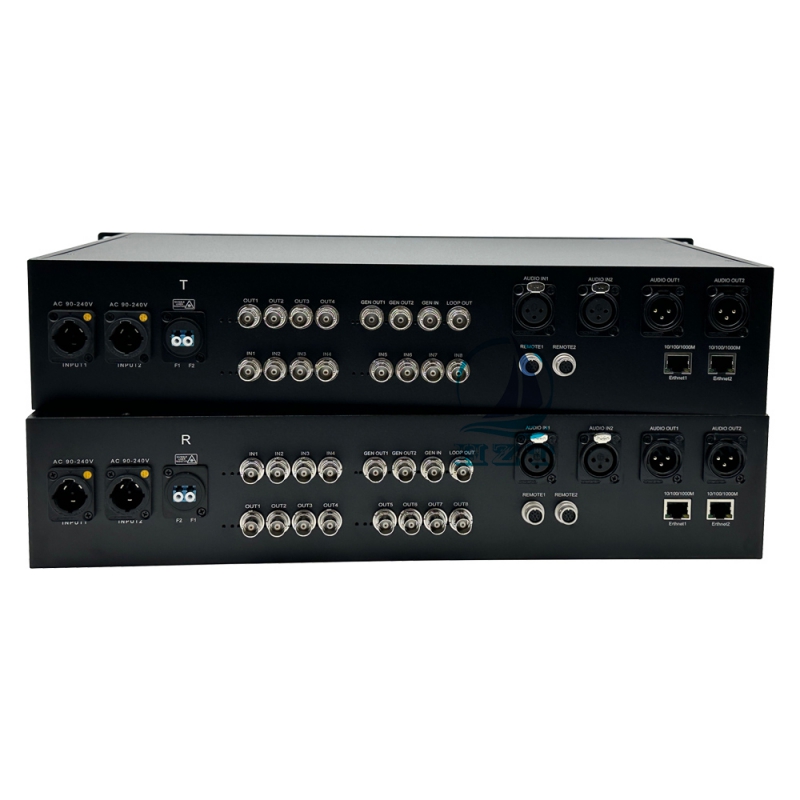

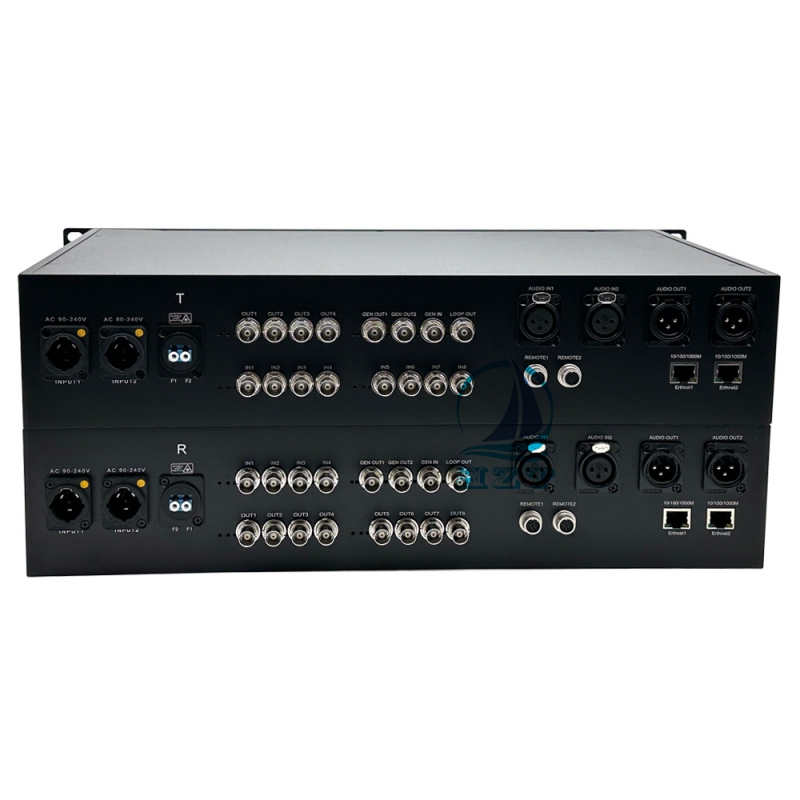

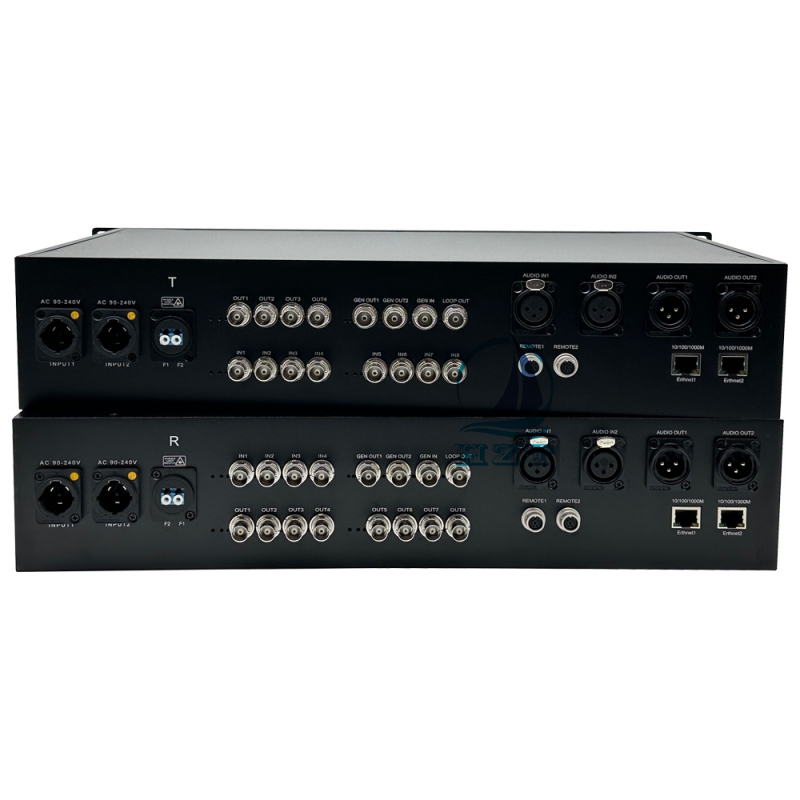

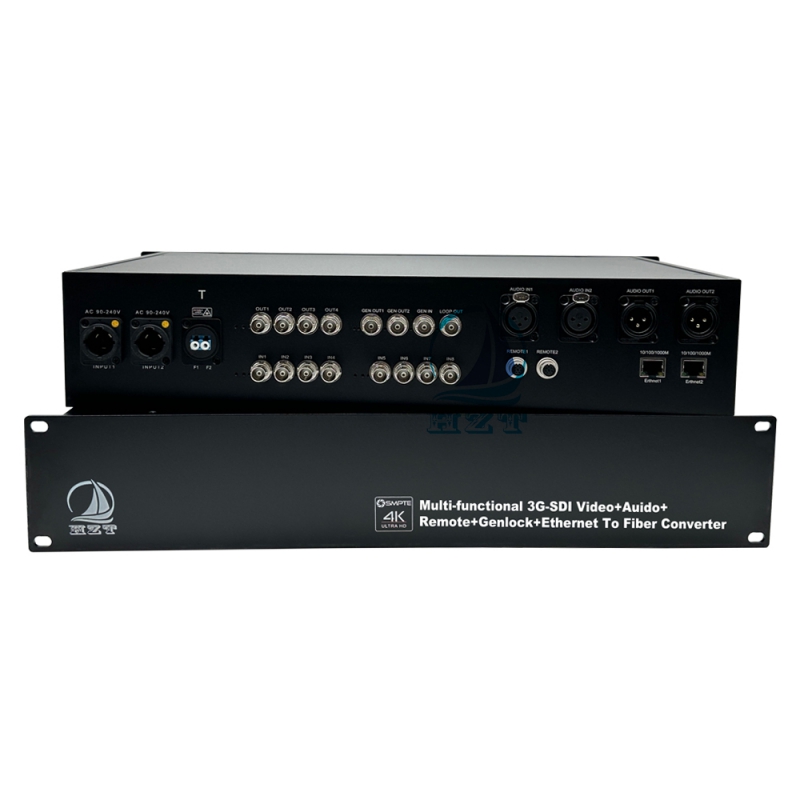

HZT-SDI-3G-8V4V2GG2R2AA2E-SM002 is designed and produced by HZT technology and which has an ideal solution for broadcasting event production applications. It can transmits 8-ch Forward 3G/HD-SDI digital video signal+4-ch Return 3G/HD-SDI digital video + 2-ch Bi-directional 3-pin XLR balanced Audio +2-ch BIDI Analog Genlock Signal+2-ch Sony 8-pin Remote Control+ 2 port 10/100/1000M Isolated Ethernet over Duplex LC Fiber Converter. It supports transmission of UHDTV/4K/HDTV/SDTV SDI signal. Each of the 3G/HD-SDI signals are fully isolated from each other and operate at a full 2.97 Gbps data rate. Each channel carries its own embedded audio.To achieve no delay, no compression, high-quality signal extension of 10 kilometers. It fully compatible with 3G SDI signals.
The high light of HZT-SDI-3G-8V4V2GG2R2AA2E-SM002 is using Dual PowerCon True1 Power instead of IEC power. During the use of traditional IEC power supply, the power line may fall off due to human accidentally touching or tripping, affecting the video production , but PowerCon can be fixed and locked on the chassis, so effectively avoid this situation. At the same time,HZT technology uses a dual power mode, you can plug in 2 Powercon power cables, or use either one of them, the other as a redundancy power, if one break, the other one can also ensure the converter works normal.
Both transmitter and receiver provide equalizing and re-clocking at input unit in order to re-construct the signal for consistent quality. Besides, with HZT technology advanced fiber technology, SDI can easily pass pathological pattern to prove its complete transmission.
Features
● 12 Channels 3G/HD-SDI High density digital audio/video fiber transmission
● 2 Channels Two-way 3-pin XLR Analog balanced Audio fiber transmission
● 2 ports 10/100/1000M Isolated Ethernet transmission, Independent operation without interference
● 2 Channels Two-way Analog Genlock Singal for synchronizing signal
● 2 Channels Sony 8-pin Remote Control
● Redundant Power supply with Locking
● Handle all Pathological patterns
● SD, HD, 3G input auto identification，support three data rate 270Mbit/s - 1.48Gbit/s - 3Gbit/s；support 1080P 3Gbps HD-SDI format
● Support SMPTE-424M 3Gbps HD-SDI、SMPTE-292M HD-SDI 、 SMPTE-259M SDI
● Support 0-10Km on single Mode Fiber transmission
● 1470~1610nm CWDM wavelengths optional.
Application
● 3G/HD-SDI monitor system;
● Live on optical fiber transmission;
● TV remote studio;
● The military and public security command and control
● Event production;
