Description:

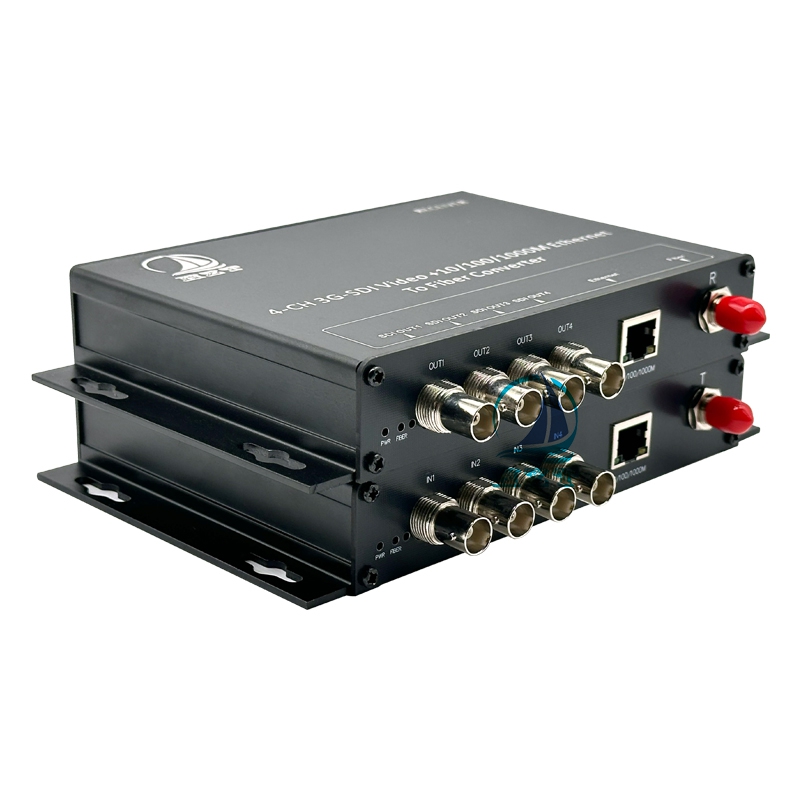

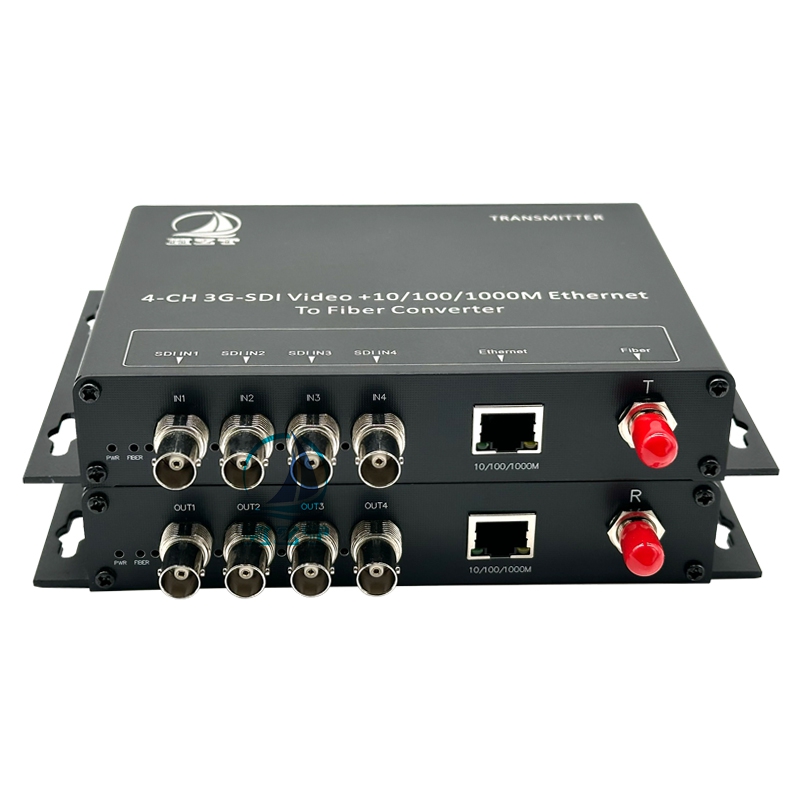

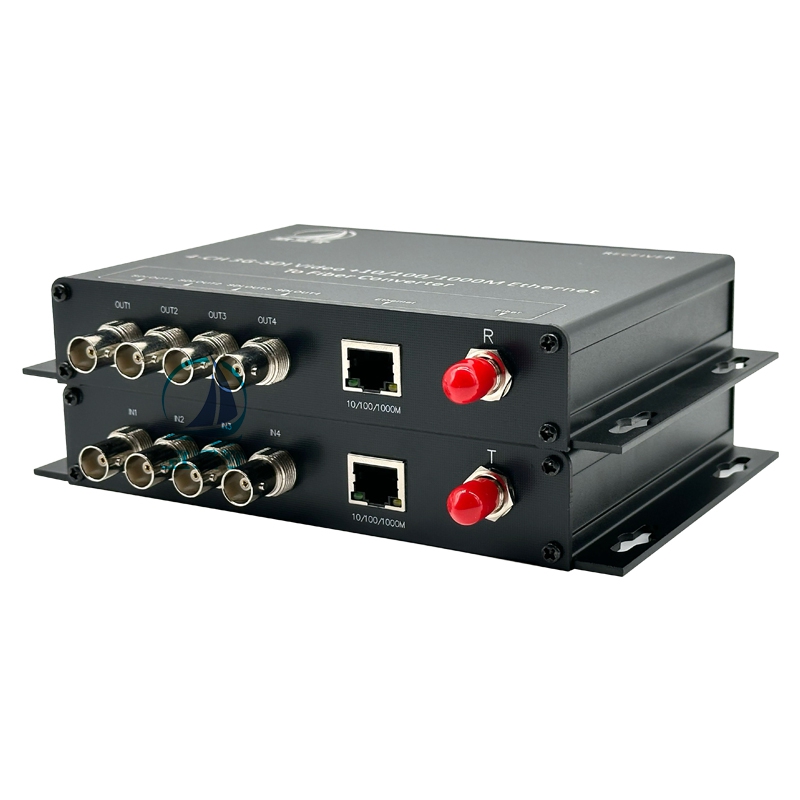

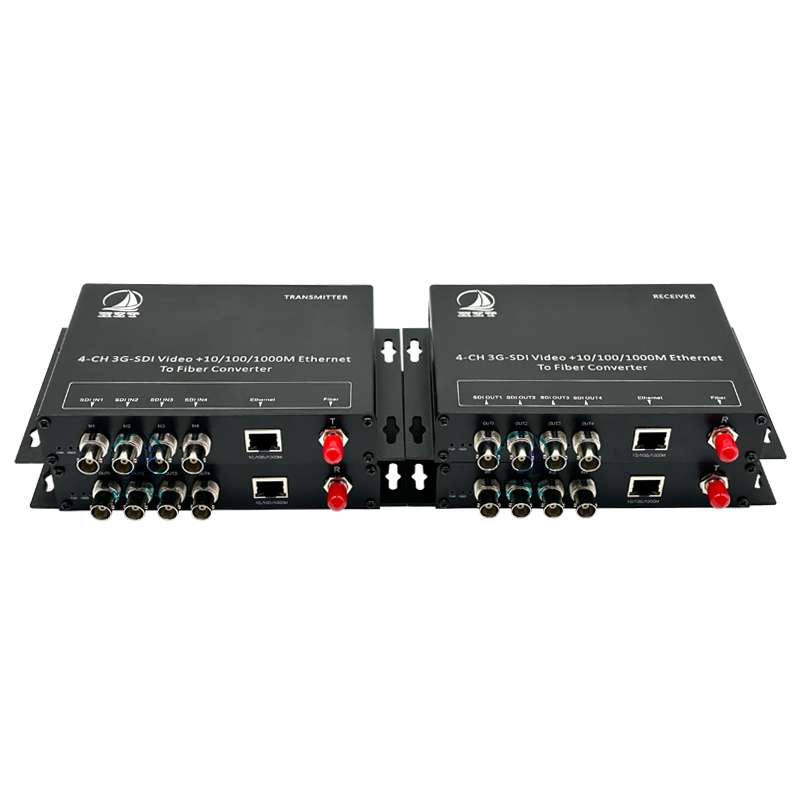

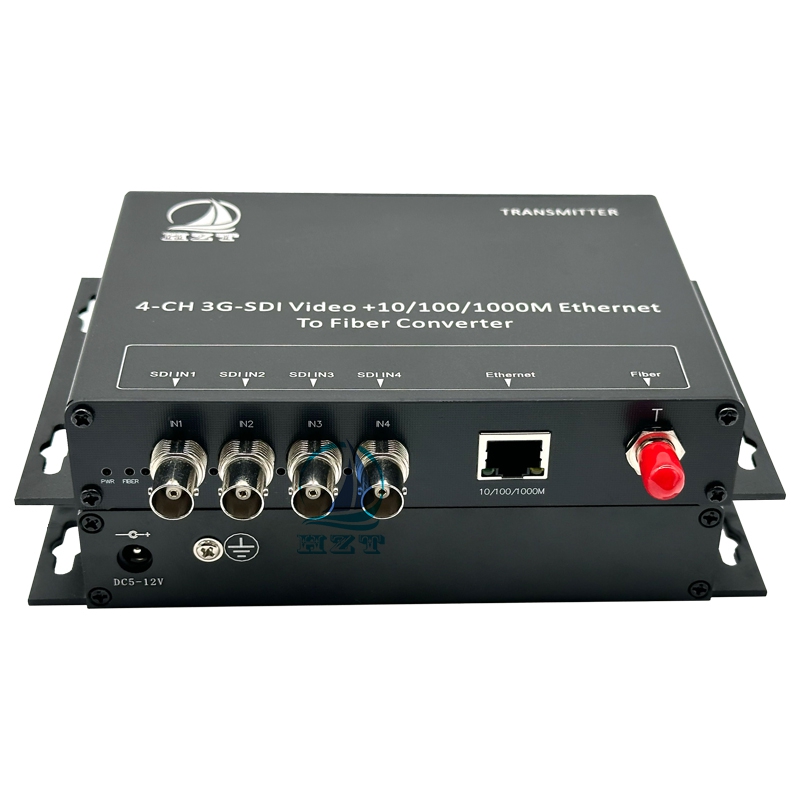

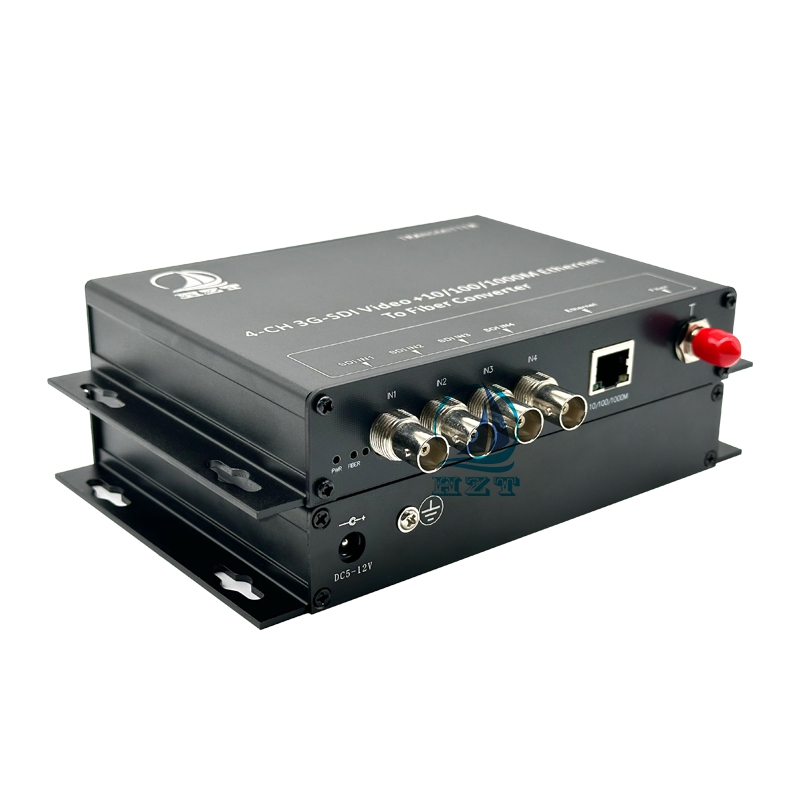

HZT-SDI-3G-4V1E-SM001 is developed by HZT technology and which has an ideal and economic solution for broadcasting applications. It can transmits 4-ch full rate 3G/HD-SDI digital video signals With 1 port 10/100/1000M Ethernet over a single ST Fiber. Each of the 3G/HD-SDI signals are fully isolated from each other and operate at a full 2.97 Gbps data rate. Each channel carries its own embedded audio. And each channel with 1-CH 3G/HD-SDI video loopout, it can easy to play and look back on the camera side. To achieve no delay, no compression, high-quality signal extension of 10 kilometers. It fully compatible with 3G SDI signals.
Both transmitter and receiver provide equalizing and re-clocking at input unit in order to re-construct the signal for consistent quality. Besides, with HZT technology advanced fiber technology, SDI can easily pass pathological pattern to prove its complete transmission.
Features
● 12 Channels 3G/HD-SDI High density digital audio/video fiber transmission
● Handle all Pathological patterns
● SD, HD, 3G input auto identification，support three data rate 270Mbit/s - 1.48Gbit/s - 3Gbit/s；support 1080P 3Gbps HD-SDI format
● Support SMPTE-424M 3Gbps HD-SDI、SMPTE-292M HD-SDI 、 SMPTE-259M SDI
● 10/100/1000M Auto Ethernet
● 10~60Km on single Mode Fiber transmission
● 1470~1610nm CWDM wavelengths optional.
Application
● 3G/HD-SDI monitor system;
● Animals, filming;
● Live on optical fiber transmission;
● TV remote studio;
● The military and public security command and control
