Description:

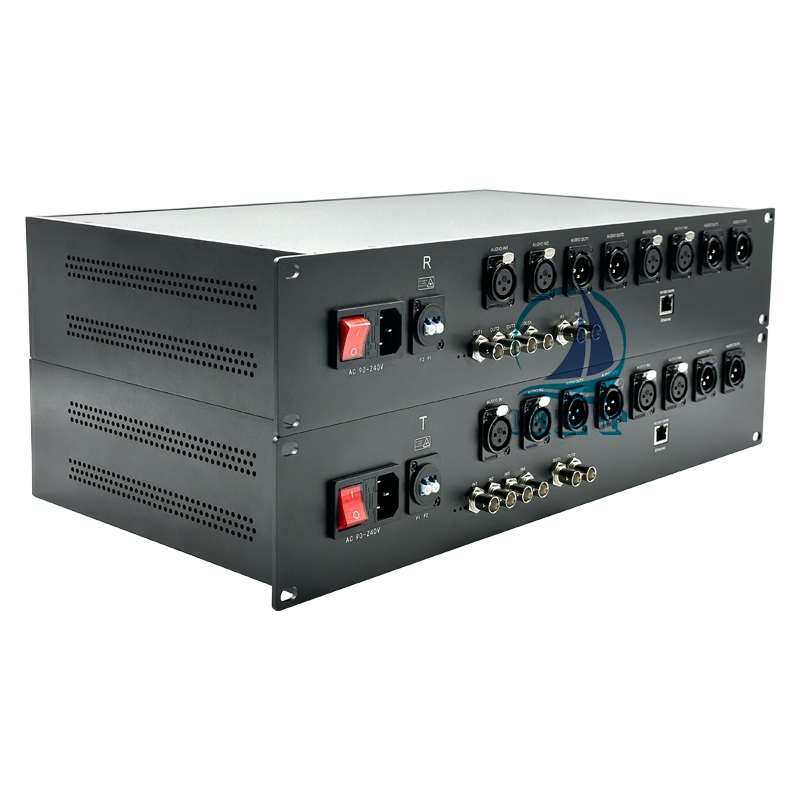

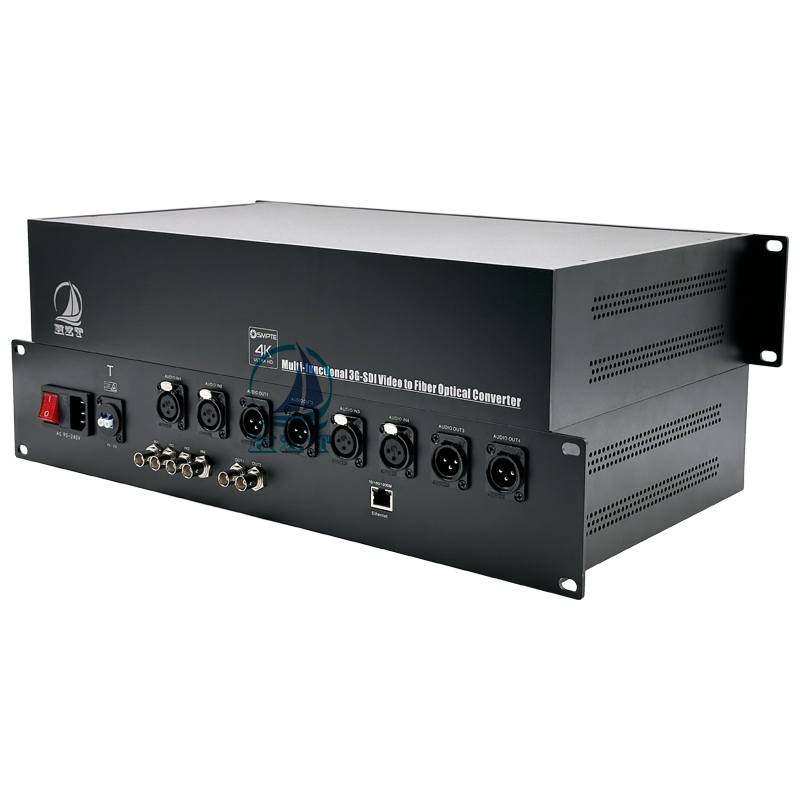

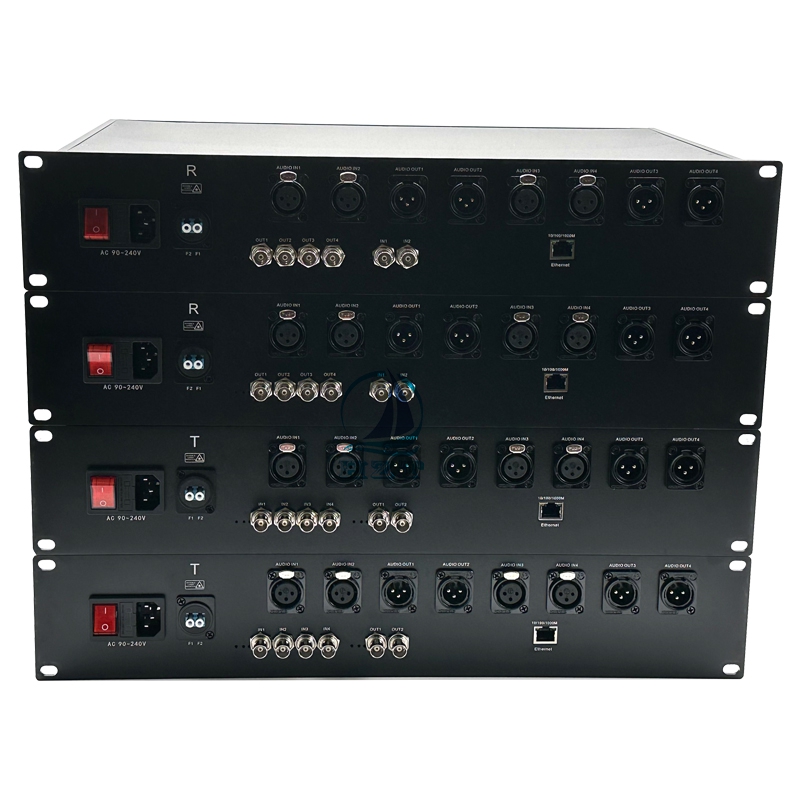

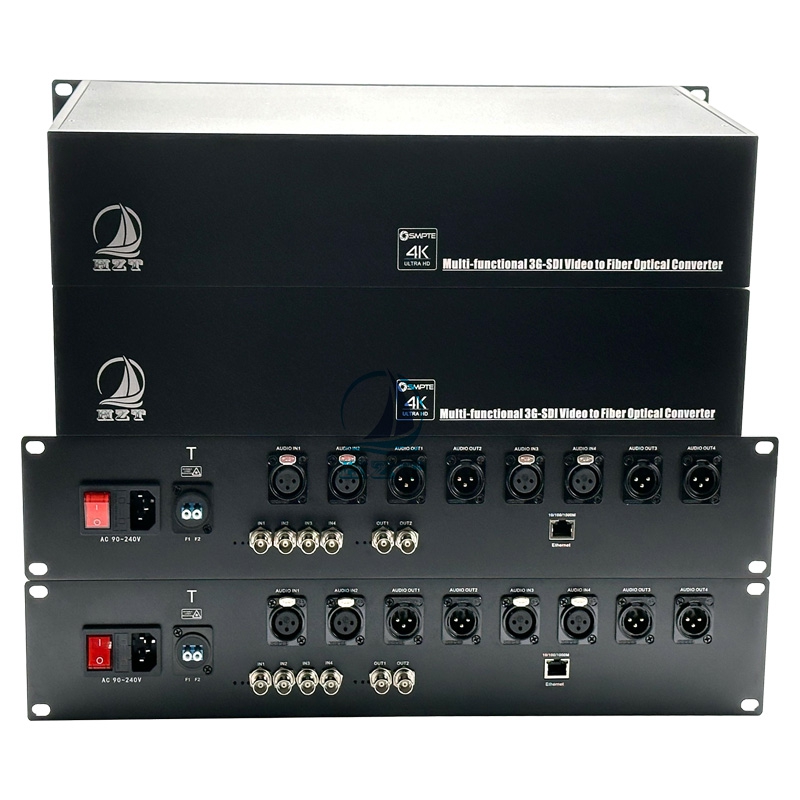

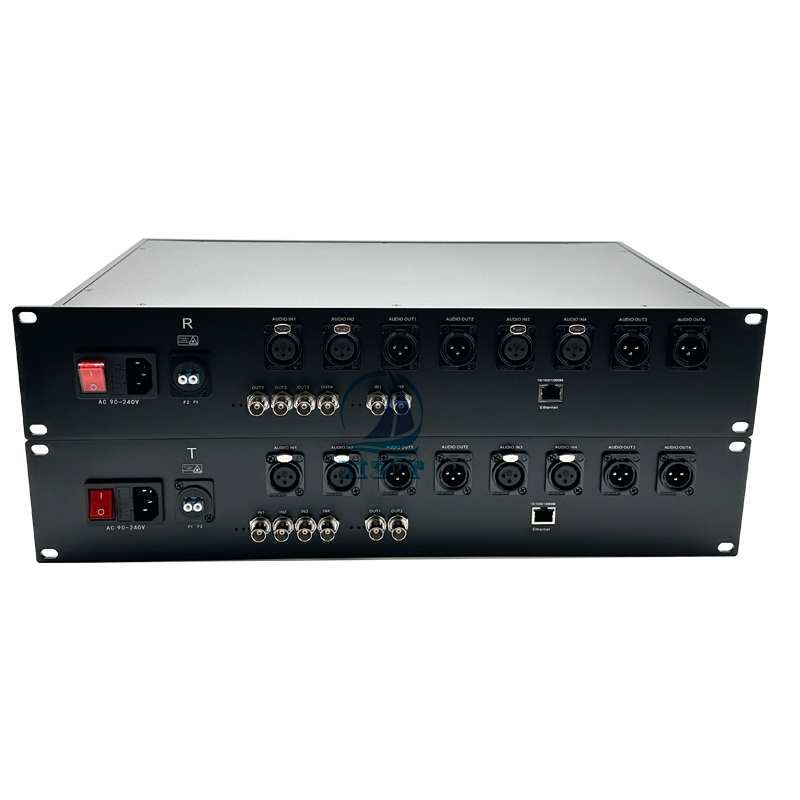

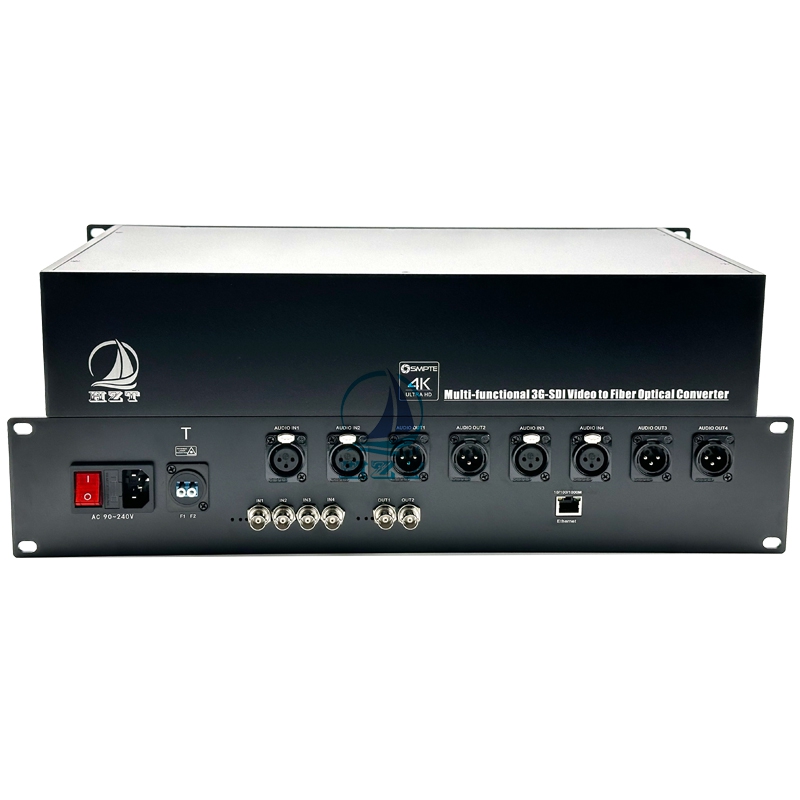

HZT-SDI-3G-4V2V2AA2E-SM002 is designed and produced by HZT technology and which has an ideal solution for broadcasting event production applications. It can transmits 4-ch Forward 3G/HD-SDI digital video signal+2-ch Return 3G/HD-SDI digital video + 2-ch Bi-directional 3-pin XLR balanced Audio + 2 port 10/100/1000M Isolated Ethernet over Duplex LC Fiber Converter. It supports transmission of UHDTV/4K/HDTV/SDTV SDI signal. Each of the 3G/HD-SDI signals are fully isolated from each other and operate at a full 2.97 Gbps data rate. Each channel carries its own embedded audio.To achieve no delay, no compression, high-quality signal extension of 10 kilometers. It fully compatible with 3G SDI signals.
Features
● 6 Channels 3G/HD-SDI High density digital audio/video fiber transmission
● 2 Channels Two-way 3-pin XLR Analog balanced Audio fiber transmission
● 2 ports 10/100/1000M Isolated Ethernet transmission, Independent operation without interference
● Handle all Pathological patterns
● SD, HD, 3G input auto identification，support three data rate 270Mbit/s - 1.48Gbit/s - 3Gbit/s；support 1080P 3Gbps HD-SDI format
● Support SMPTE-424M 3Gbps HD-SDI、SMPTE-292M HD-SDI 、 SMPTE-259M SDI
● Support 0-10Km on single Mode Fiber transmission
● 1470~1610nm CWDM wavelengths optional.
Application
● 3G/HD-SDI monitor system;
● Live on optical fiber transmission;
● TV remote studio;
● The military and public security command and control
● Event production;
