3-pin XLR balanced Audio Fiber Converter

Products

Can‘t find what you‘re looking for?
Click here to talk directly to a member of the sales team.

4-CH Balance Audio Fiber Converter with Switchable 48V Phantom Power

  • Description
  • Technical data
  • Make an inquiry
    Description

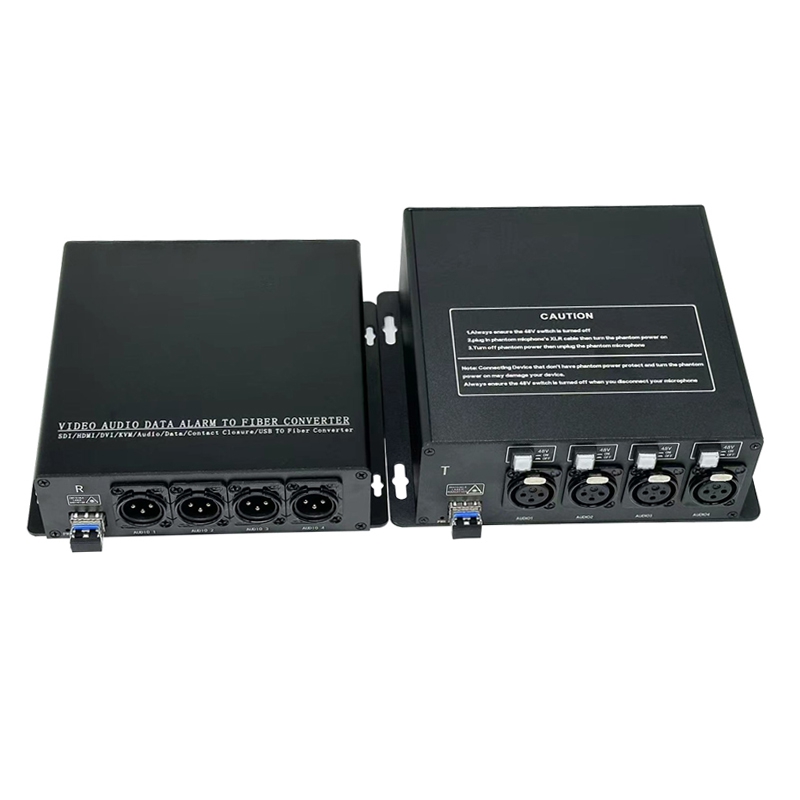

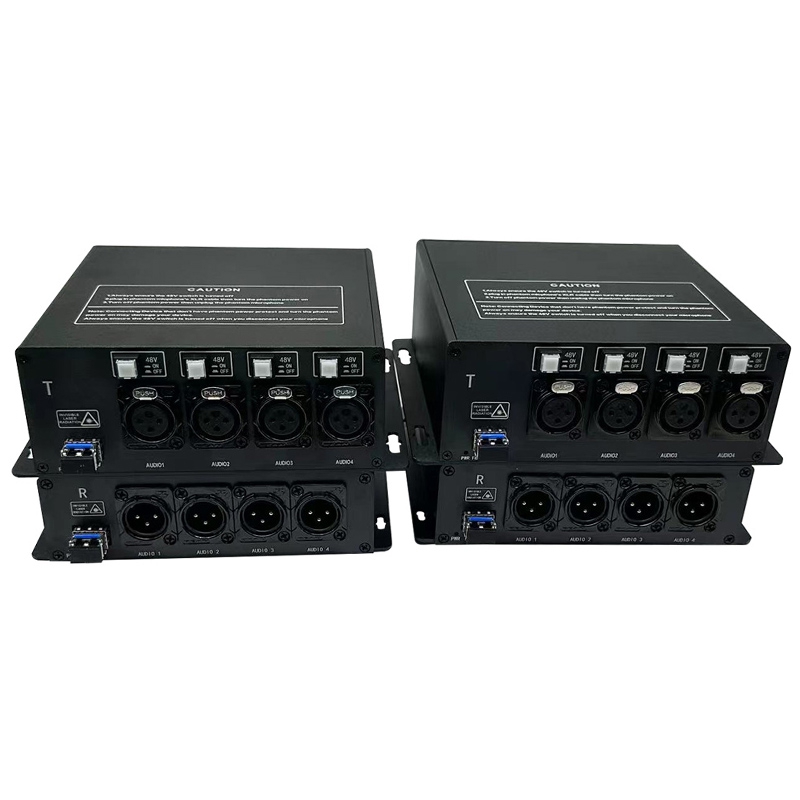

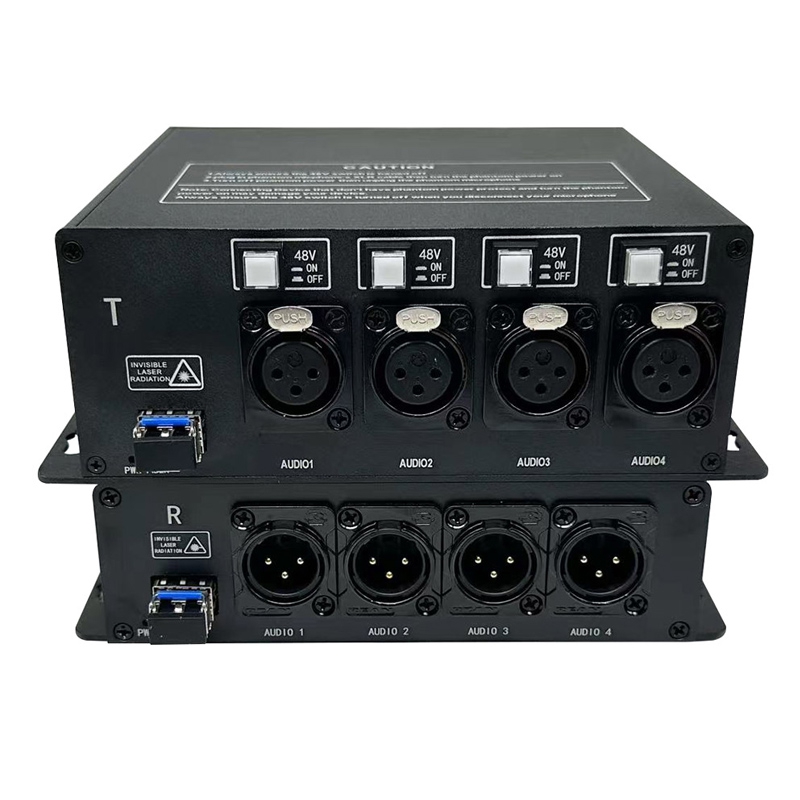

    HZT-XLR-4APH-SM001 4 ch balanced audio over fiber series support 4 Channel 16-bit 24-bit,32-bit also available by customized) digitally encodedbroadcast quality balanced audio over one multi-modeor single-mode optical fiber. These fiber optic transmitter and fiber optic receiver aretypically used in applications for Rental, Staging,Theater, Stadiums,Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and areavailable for stand-alone or rack-mount installations.FC, ST or SC optical connectors is optional.
    Plug and Play design ensuresadjustment-free installation and operation, and optical adjustments are neverrequired. LED indicators are provided to instantly monitor the system operatingstatus.

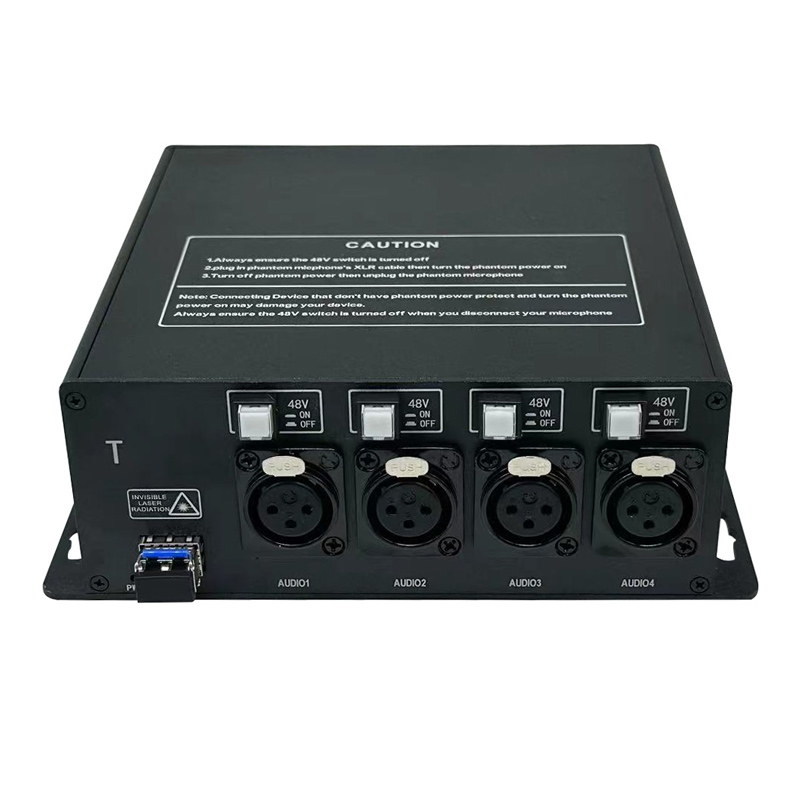

    Additional switchable 48V Phantom powersupply. If you would like to connect microphones that need 48V phantom power supply.You can enable 48V phantom power by push the switch button to ON position forthe mic phone need phantom power.
    Caution:

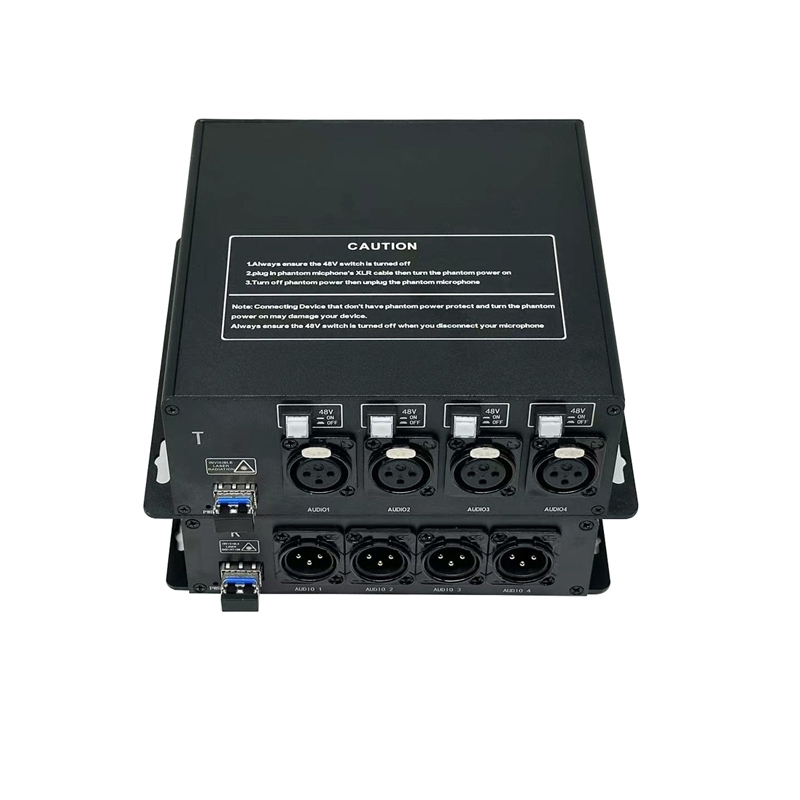

    1. Always ensure the 48V switch is truned off
    2. Plug in phantom microphone‘s XLR cablethen turn the phantom power on
    3. Turn off phantom power then unplug the phantom microphone----------------------------------------------------------------------------------------------------------------------
    Note: Connecting Device that don‘t have phantom power protect and turn thephantom power on may damage your equipment. Always ensure the 48V switch isturned off when you disconnect your microphone
    Feature
    ● 3-Pin Balanced XLR Audio input/output
    ● Uni-directional 2 or 4 or 8 or 16 or 32 Channel
    ● Bi-directional over single fiber available on 2 and 4 Channel model
    ● Single mode fiber up to 20km, Multimode fiber up to 3000feet
    ● Easy to Use, Plug and Play Untis

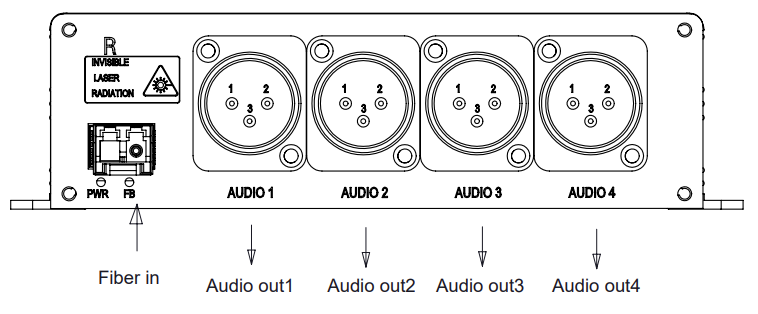

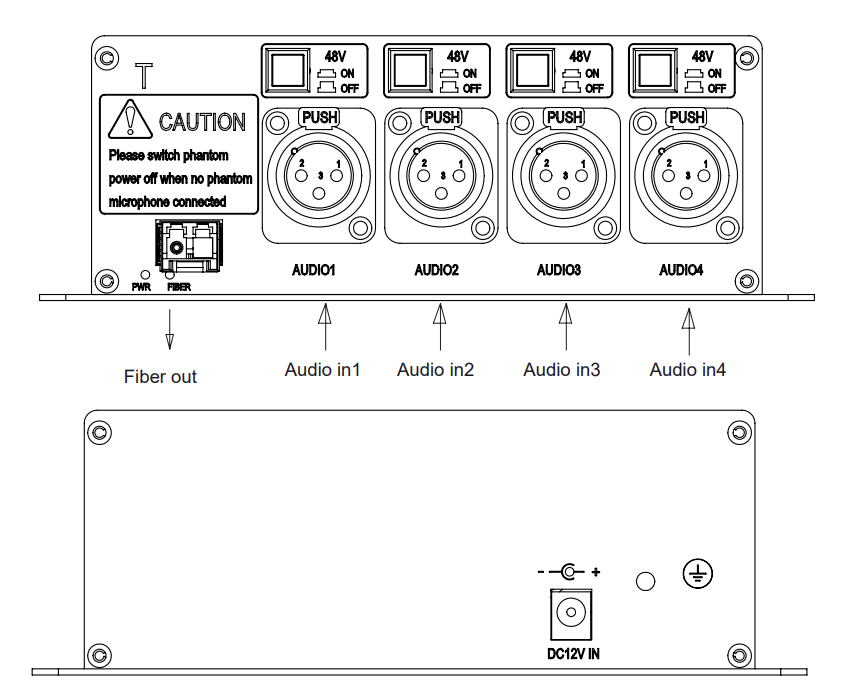

    Connection Diagram




    Specification
    Optical
    Wavelength:
    1310nm&1470nm~1610nm
    Output Power :
    -10~ -5dBm
    Optic fiber :
    50/125u multimode,62.5/125u multimode,9/125u single mode
    Rx sensitivity :
    -25dBm
    Optical connector :
    FC /ST /SC /LC (optional)
    Distance :
    0~500M (MM)   /   0~20KM/40KM/60KM/80KM (SM)

    Balanced Audio

    Input Connector :
    XLR(Female)
    Output Connector :
    XLR(Male)
    Input / Output Impedance :
    10K Ohm
    Input capacitance LINE inputs :
    10 pF
    Max input/output voltage :
    1.228Vp-p (+4dBu)
    Frequency Response :
    20 Hz~24kHz @±3dB
    Sample Rates From :
    48kHz
    SNR :
    > 80dB
    Number of  Transmitter Channel :
    4-ch XLR Audio Input
    Number of  Receiver Channel :
    4-ch XLR Audio Output

    Electrical & Mechanical

    Input Power Requirements :
    DC 12V@2A
    Power Adapter :
    AC 90V~240V
    Power Consumption :
    < 5W
    Phantom Power Output :
    48V
    Stand-Alone Dimensions :
    168mm × 154mm × 45mm
    Shipping Weight :
    (include Transmitter & Receiver ) 2.5Kg

    Environmental

    Operation Temperature :
    -20°C ~ +75°C
    Storage Temperature :
    -40°C ~ +85°C
    Relative Humidity:
    0% ~ 95% (non-condensing)
    MTBF:
    >100,000 hours

    If you have any special requirements or questions that require prior consultation. Please fill out the following form and we will have the specialist contact you as soon as possible.
