Description

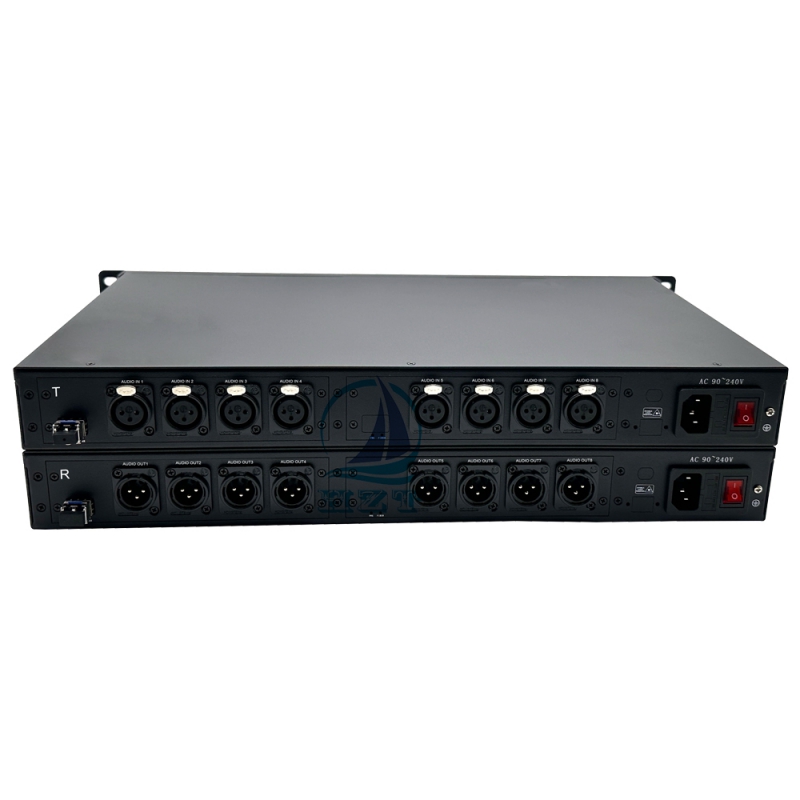

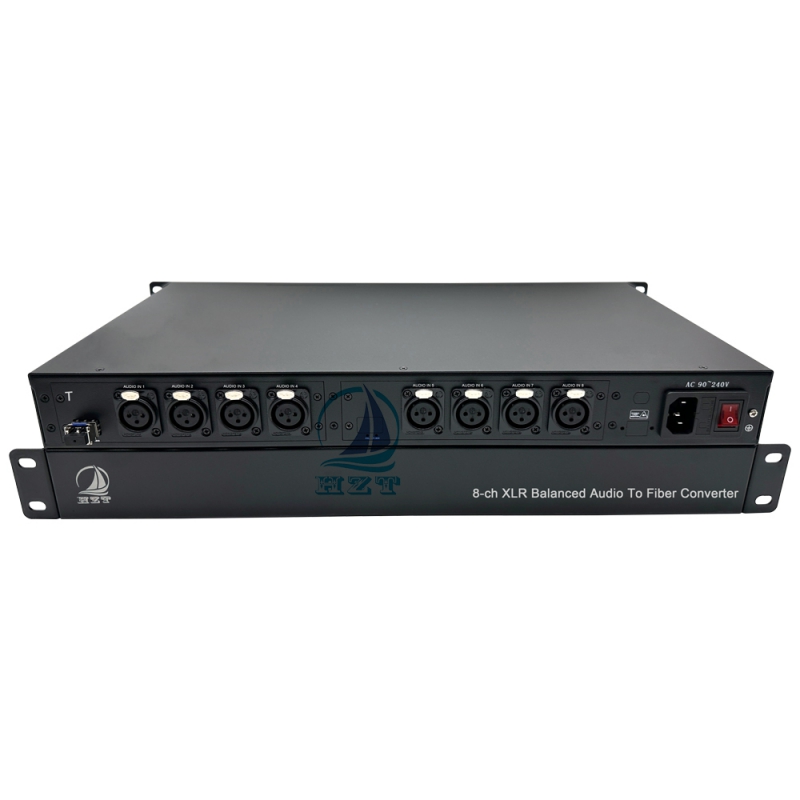

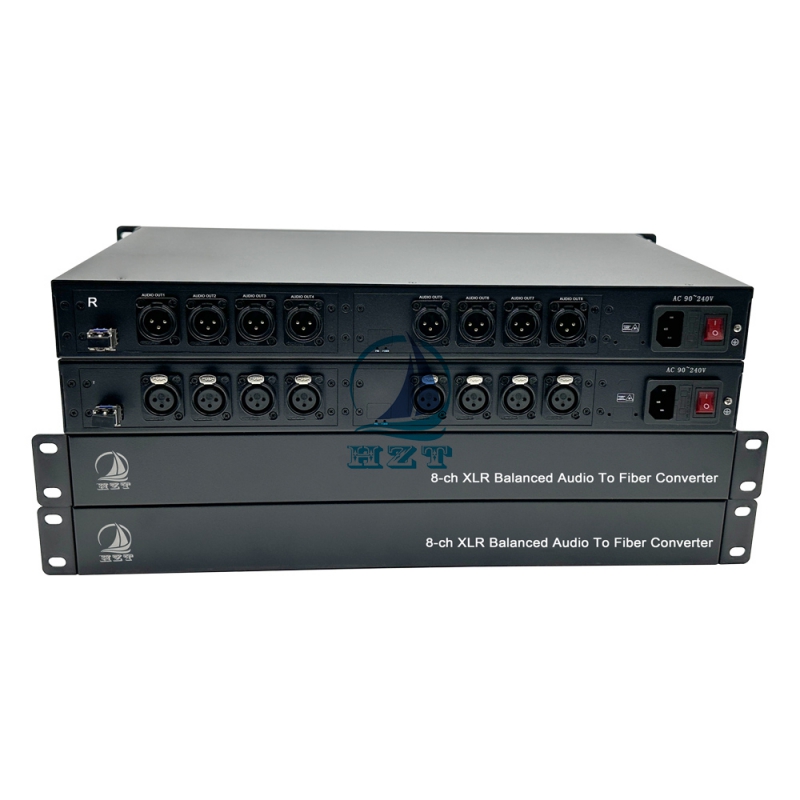

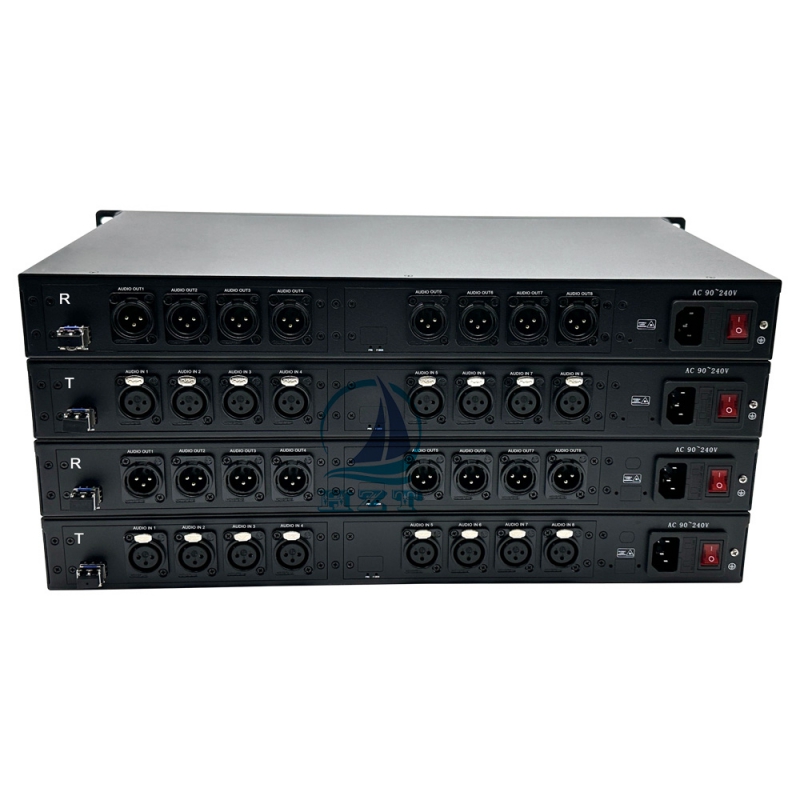

HZT-XLR-8A-SM001 8-CH XLR Balanced Audio To Fiber Optic Converter support 8 Channel Forward balanced audio 16-bit digitally encoded broadcast quality balanced audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional. Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LEDindicators are provided to instantly monitor the system operating status.
Feature
● 3-Pin Balanced XLR Audio input/output
● Uni-directional 2 or 4 or 8 or 16 or 32 Channel
● Bi-directional over single fiber available on 2, 4, 8 and 16 Channel model
● Single mode fiber up to 20km, Multimode fiber up to 500 meter
● Easy to Use, Plug and Play Untis
Connection Diagram
