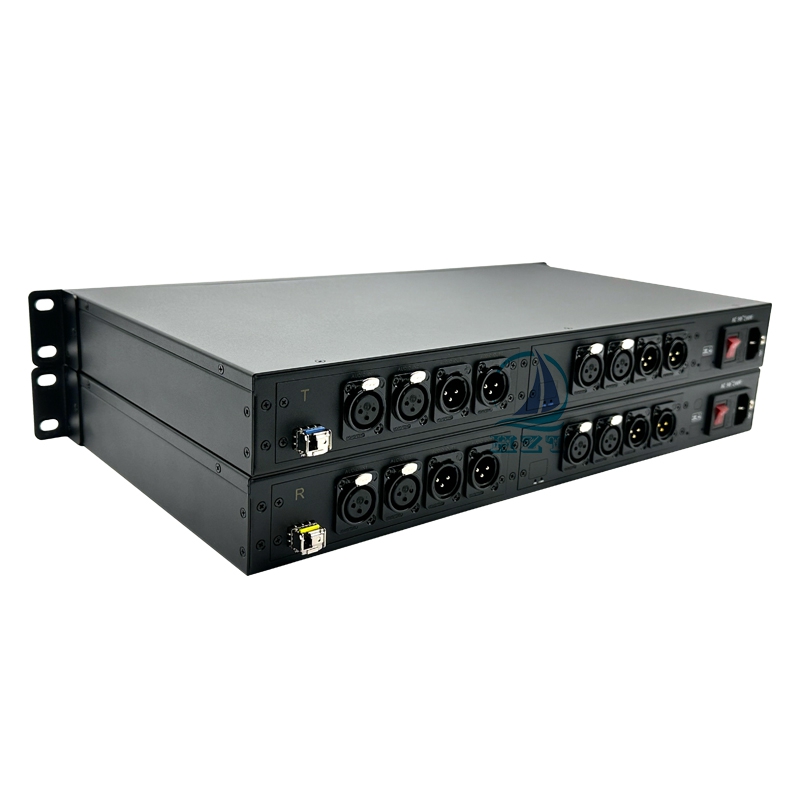

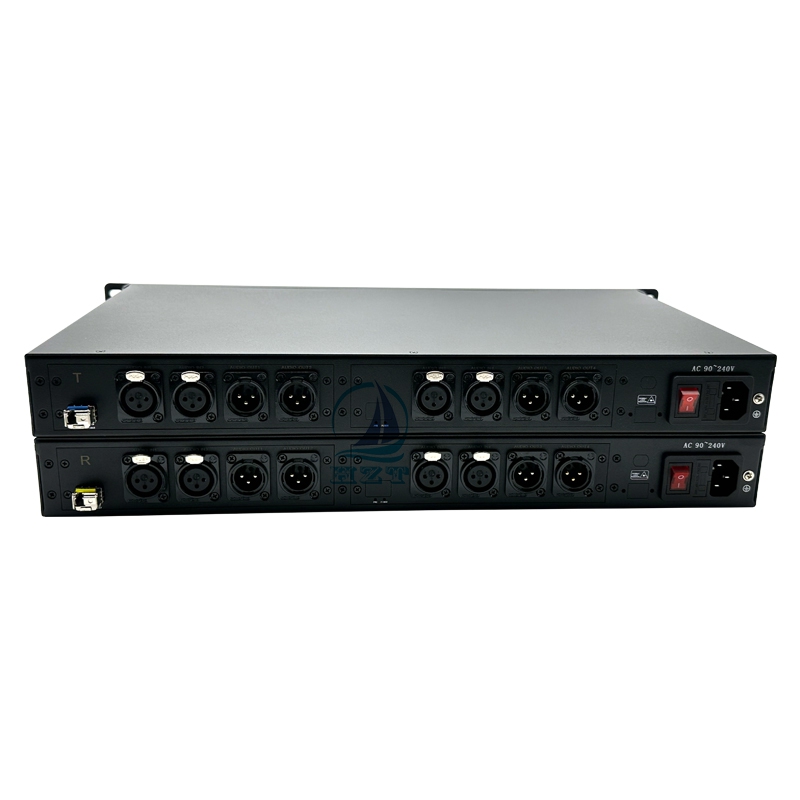

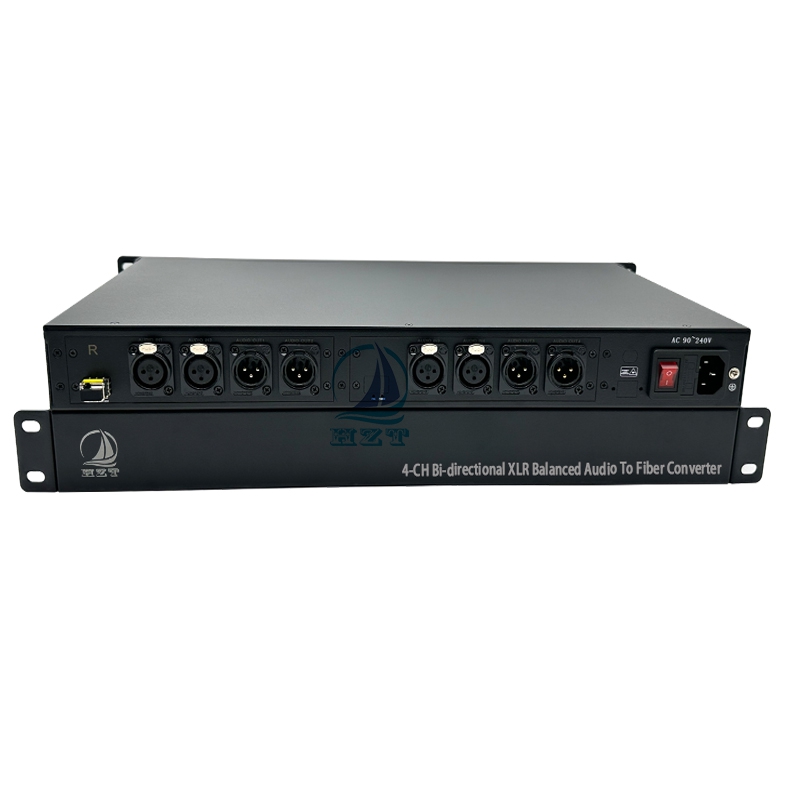

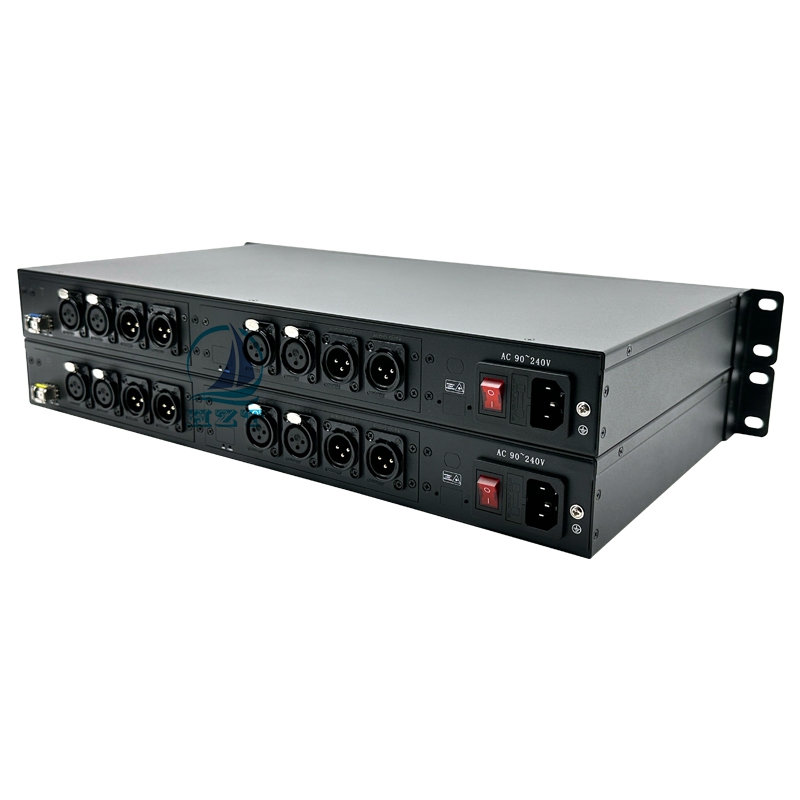

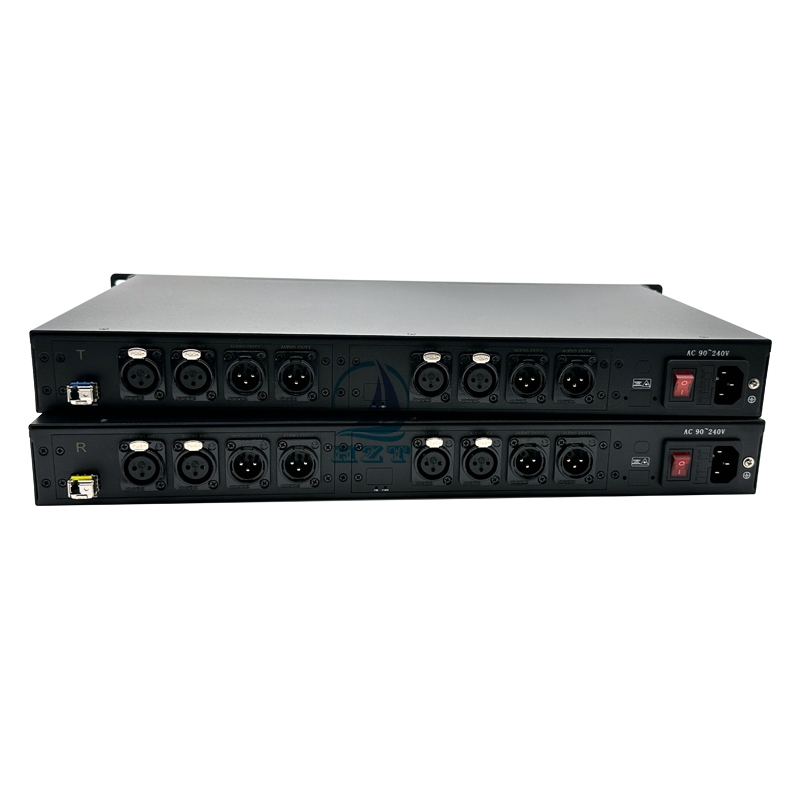

4-CH BIDI XLR Balanced Audio Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT-XLR-4AA-SM001 4-CH BlDl XLR Balanced Audio To Fiber Optic Converter support 4 Channel BlDl balanced audio 16-bit digitally encoded broadcast quality balanced audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional. Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LEDindicators are provided to instantly monitor the system operating status.
    Feature
    ● 3-Pin Balanced XLR Audio input/output
    ● Uni-directional 2 or 4 or 8 or 16 or 32 Channel
    ● Bi-directional over single fiber available on 2, 4, 8 and 16 Channel model
    ● Single mode fiber up to 20km, Multimode fiber up to 500 meter
    ● Easy to Use, Plug and Play Untis

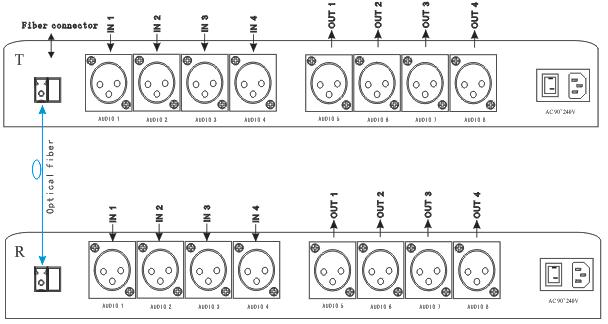

    Connection Diagram




    Specification
    Optical
    Wavelength:
    1310nm&1470nm~1610nm
    Output Power :
    -10~ -5dBm /   -5~0dBm
    Optic fiber :
    50/125u multimode,62.5/125u multimode,9/125u single mode
    Rx sensitivity :
    -25dBm
    Optical connector :
    FC /ST /SC /LC (optional)
    Distance :
    0~500M (MM)   /   0~20KM/40KM/60KM/80KM (SM)

    Balanced Audio

    Input Connector :
    XLR(Female)
    Output Connector :
    XLR(Male)
    Input / Output Impedance :
    10K Ohm
    Input capacitance LINE inputs :
    10 pF
    Max input/output voltage :
    1.228Vp-p (+4dBu)
    Frequency Response :
    20 Hz~24kHz @±3dB
    Sample Rates From :
    48kHz
    SNR :
    > 80dB
    Number of  Transmitter Channel :
    4-ch XLR Audio input, 4-ch XLR Audio output
    Number of  Receiver Channel :
    4-ch XLR Audio input, 4-ch XLR Audio output

    Electrical & Mechanical

    Power Adapter :
    AC 90V~240V
    Power Consumption :
    < 8W
    Stand-Alone Dimensions :
    480mm × 248mm × 28mm
    Shipping Weight :
    (include Transmitter & Receiver ) 5Kg

    Environmental

    Operation Temperature :
    -20°C ~ +75°C
    Storage Temperature :
    -40°C ~ +85°C
    Relative Humidity:
    0% ~ 95% (non-condensing)
    MTBF:
    >100,000 hours
