Optical
|
|
|
Wavelength:
|
1310nm&1470nm~1610nm
|
|
Output Power :
|
-14~ -8dBm / -5~0dBm
|
|
Optic fiber :
|
50/125u multimode，62.5/125u multimode，9/125u single mode
|
|
Rx sensitivity :
|
-30dBm
|
|
Optical connector :
|
FC /ST /SC /LC (optional)
|
|
Distance :
|
0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM)
|
|
Balanced Audio |
|
|
Input Connector :
|
XLR（Female）
|
|
Output Connector :
|
XLR（Male）
|
|
Input / Output Impedance :
|
10K Ohm
|
|
Input capacitance LINE inputs :
|
10 pF
|
|
Max input/output voltage :
|
1.228Vp-p （+4dBu）
|
|
Frequency Response :
|
20 Hz～24kHz @±3dB
|
|
Sample Rates From :
|
48kHz
|
|
SNR :
|
> 80dB
|
|

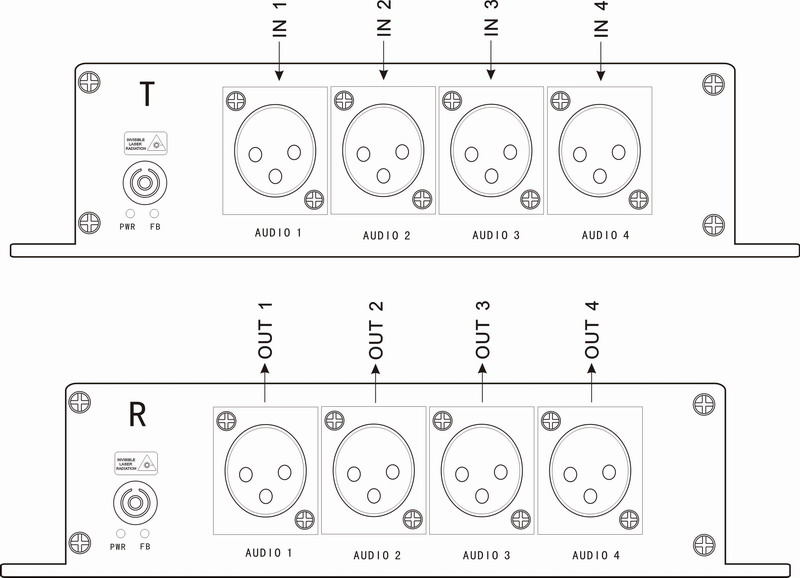

Number of Transmitter Channel :
|
4-ch XLR Audio input (Forward)
|
|
Number of Receiver Channel :
|
4-ch XLR Audio Output
|
|
Electrical & Mechanical |
|
|
Input Power Requirements :
|
DC 5V@2A
|
|
Power Adapter :
|
AC 90V~240V
|
|
Power Consumption :
|
< 5W
|
|
Stand-Alone Dimensions :
|
168mm × 154mm × 45mm
|
|
Shipping Weight :
|
(include Transmitter & Receiver ) 2.5kg
|
|
Environmental |
|
|
Operation Temperature :
|
-20°C ~ +75°C
|
|
Storage Temperature :
|
-40°C ~ +85°C
|
|
Relative Humidity:
|
0% ~ 95% (non-condensing)
|
|
MTBF:
|
>100,000 hours
|
 |
