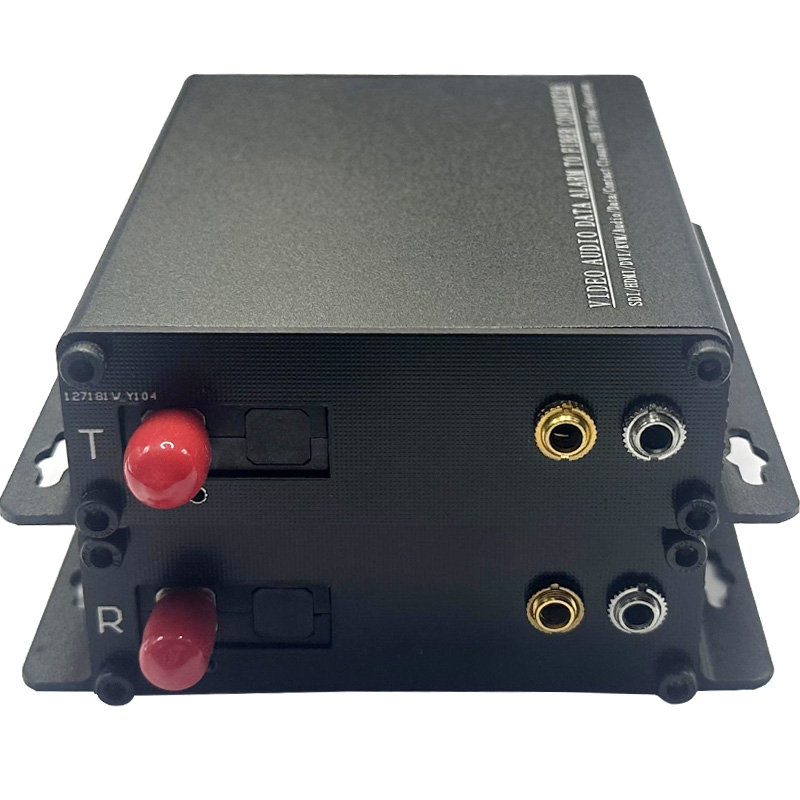

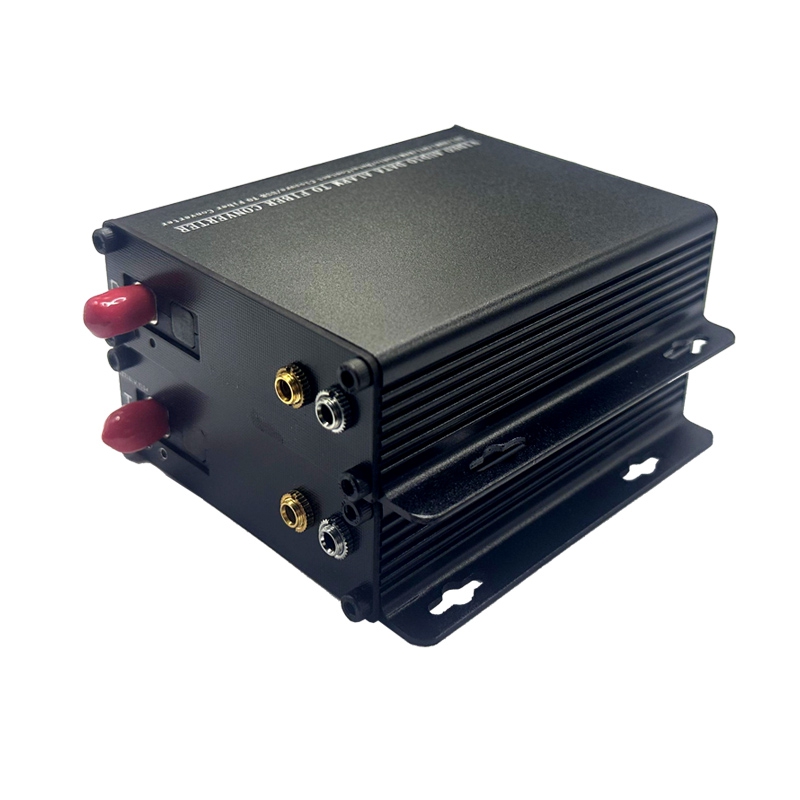

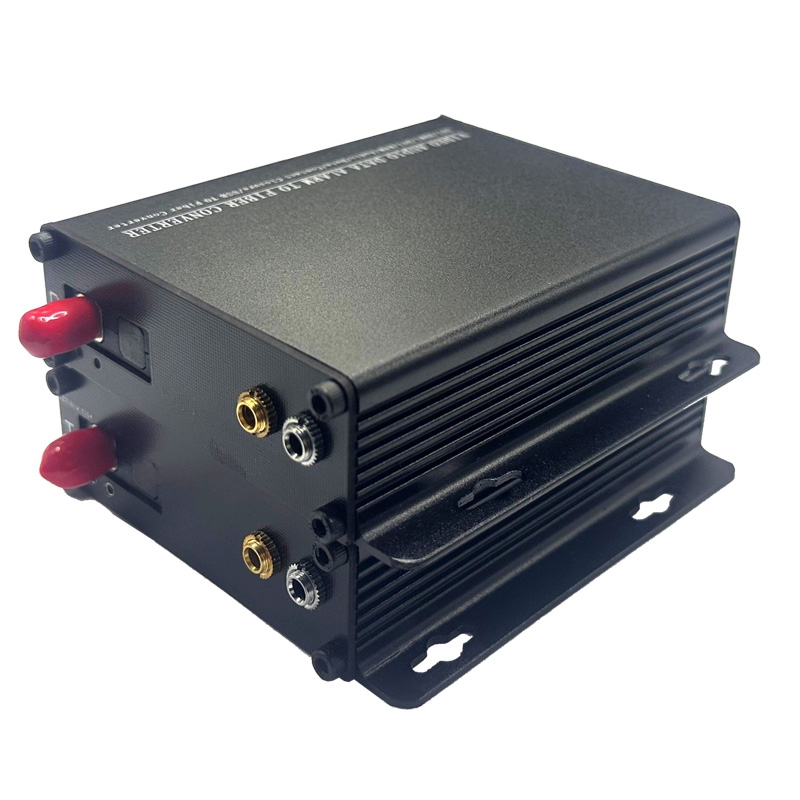

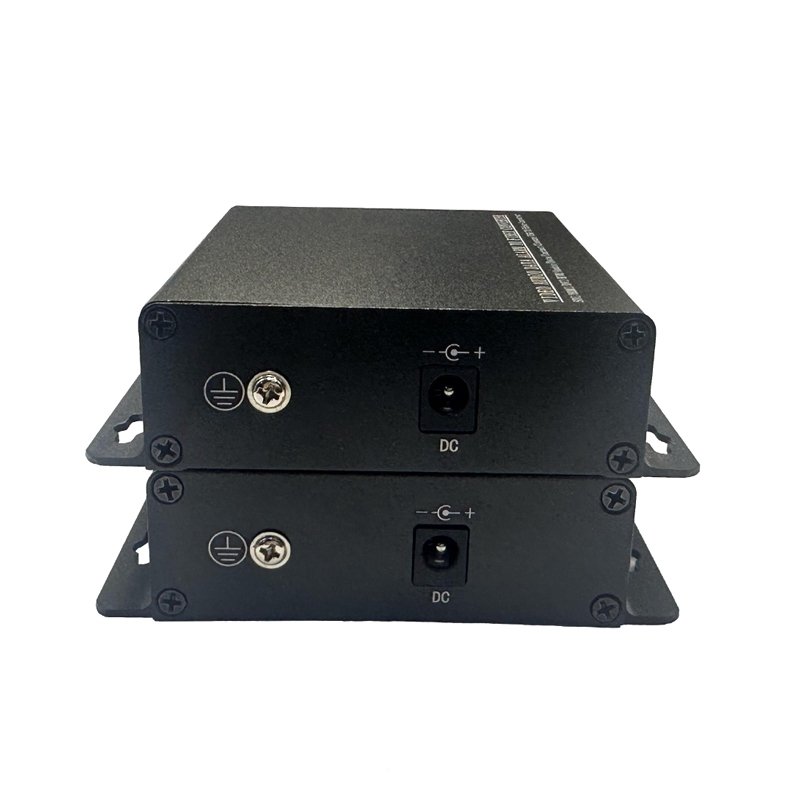

2-CH 3.5mm Stereo Audio to Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    Description
    3.5mm Stereo To Fiber support 1~8 channels 3.5mm Stereo over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.
    Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

    Features
    • 24-Bit Digitally Encoded Audio
    • Support Point-to-Point or Daisy-Chain connection
    • Multimode Fiber transmit up to 4km without Optical Attenuation
    • Single-Mode Fiber transmit up to 100km without Optical Attenuation
    • No EMI, RFI, Cross Talk or Video Distortion and no ground loops
    • LED Indicators for Instant System Monitoring
    • Standalone or Rack Mount in FVC14 Chassis
    • Produce according to customer‘s specifications, providing OEM

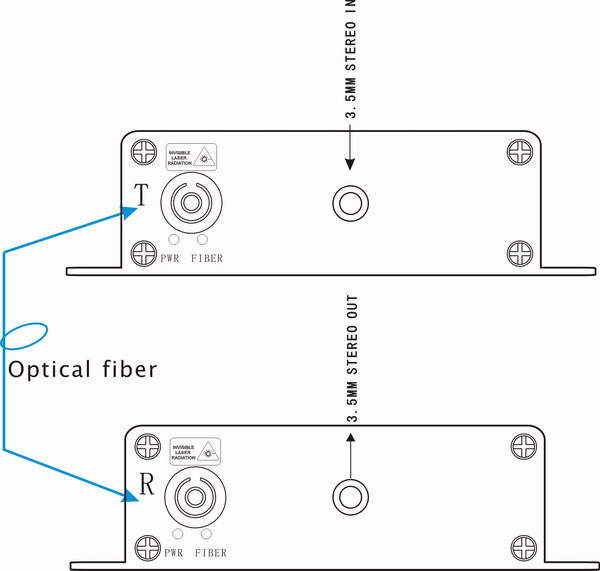

    Connection Diagram

    Specification
    Optical
    Wavelength:
    1310nm&1470nm~1610nm
    Output Power :
    -14~ -8dBm /-5~0dBm
    Optic fiber :
    50/125u multimode,62.5/125u multimode,9/125u single mode
    Rx sensitivity :
    -30dBm
    Optical connector :
    FC /ST /SC /LC (optional)
    Distance :
    0~500M(MM)   /   0~20KM/40KM/60KM/80KM(SM)

    Audio

    Input/output Impedance
    600ohm(unbalance)
    Max input/output voltage
    3.0Vp-p
    Frequency Response
    10 Hz~29kHz @±3dB
    SNR
    > 70dB
    Connector
    3.5mm Stereo
    Number of  Transmitter Channel :
    2-ch Analog line-level 3.5mm Audio Input
    Number of  Receiver Channel :
    2-ch Analog line-level 3.5mm Audio Output

    Electrical & Mechanical

    Input Power Requirements :
    DC 5V@2A
    Power Adapter :
    AC 90V~240V
    Power Consumption :
    < 3W
    Stand-Alone Dimensions :
    104mm × 104mm × 28mm
    Shipping Weight :
    (include Transmitter & Receiver ) 0.8Kg

    Environmental

    Operation Temperature :
    -20°C ~ +75°C
    Storage Temperature :
    -40°C ~ +85°C
    Relative Humidity:
    0% ~ 95% (non-condensing)
    MTBF:
    >100,000 hours
