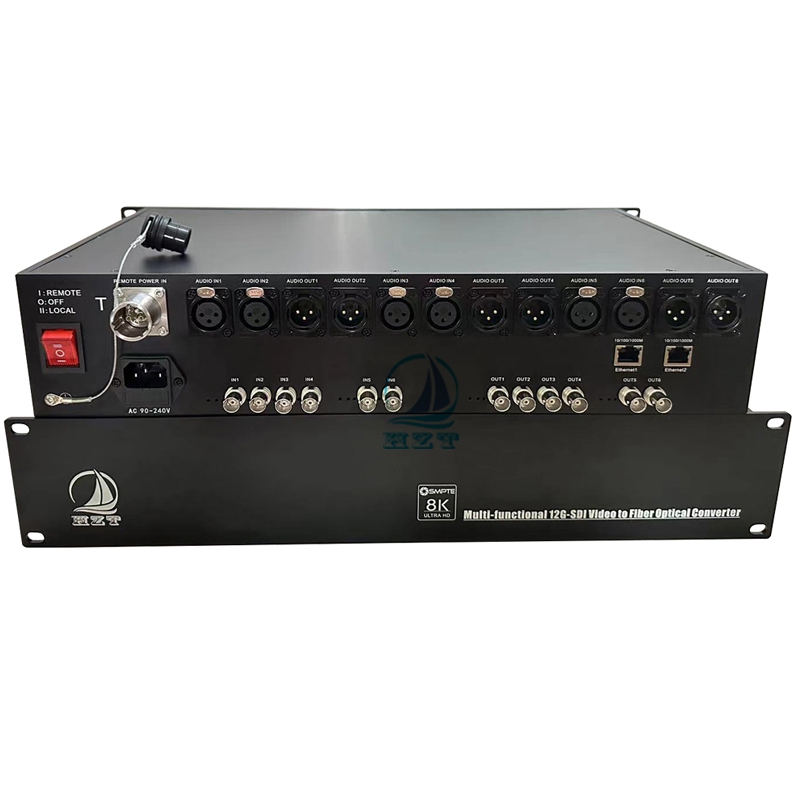

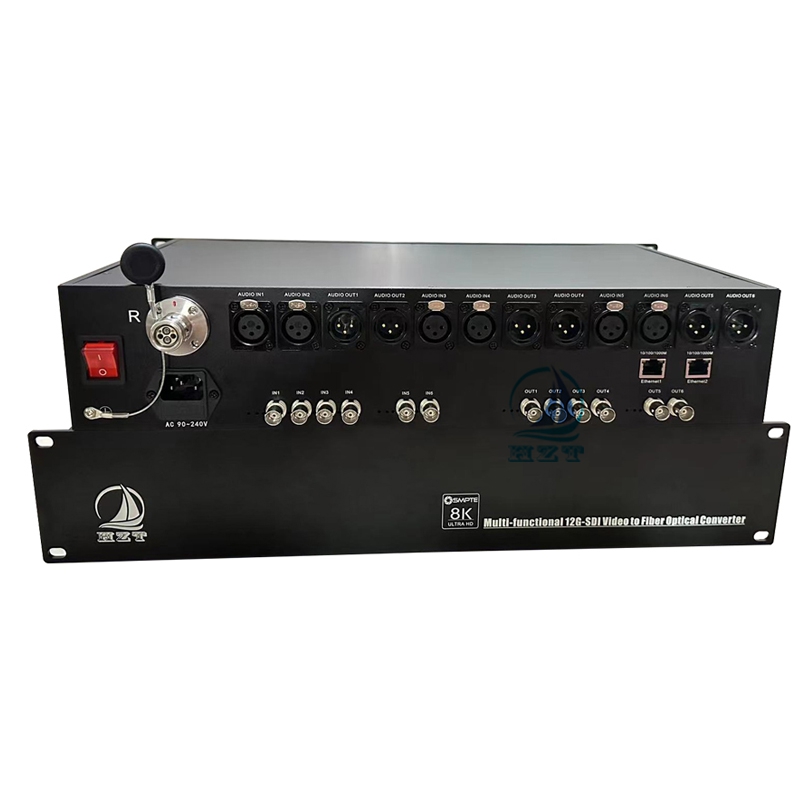

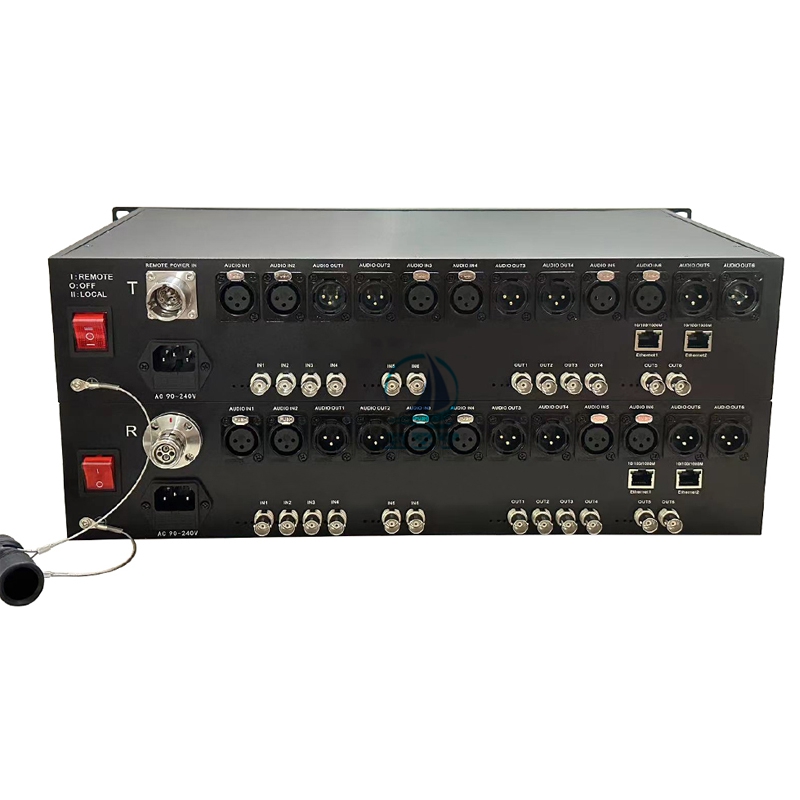

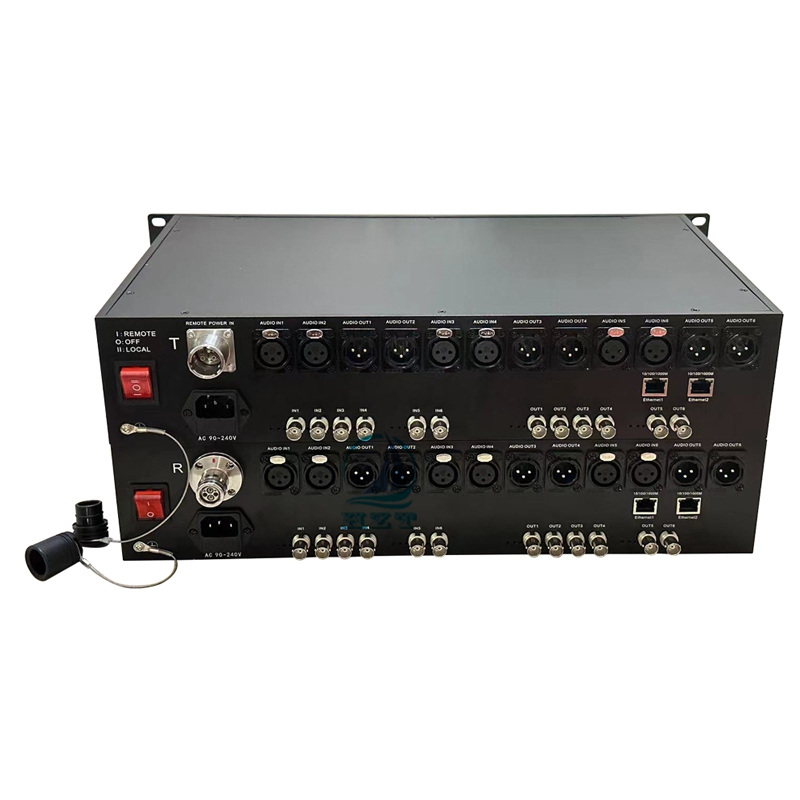

6-CH BIDI 12G-SDI+6-CH BIDI XLR Audio+2-CH 1000M Ethernet To SMPTE Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT-SDI-12G-6VV6AA2E-HSM002 is designed and produced by HZT technology and which has an ideal solution for broadcasting event production applications. It can transmits 6-ch Bi-directional 12G-SDI digital video signal + 6-ch Bi-directional 3-pin XLR balanced Audio + 2 port 10/100/1000M Isolated Ethernet over SMPTE Fiber Converter. It supports transmission of UHDTV/4K/8K/HDTV/SDTV SDI signal.
    3K.93C SMPTE FXW-EDW Connector provides Remote Power Supply is the high light for HZT-SDI-12G-6VV6AA2E-HSM0S2. It provides 2 modes of power supply. One uses IEC to power converter itself. However, when the transmitter or receiver is not convenient to connect  the power, at this time, the SMPTE connector comes into play, you only need to insert the hybrid SMPTE Cable into Tx and RX. HZT SMPTE connector can provide 200V power output, can ensure 0-5KM power supply through hybrid cable. Certainly,you can connect IEC and SMPTE at the same time, dual power design also make sure the production will not be terminated due to power failure during the event production .
    Both transmitter and receiver provide equalizing and re-clocking at input unit in order to re-construct the signal for consistent quality. Besides, with HZT technology advanced fiber technology, SDI can easily pass pathological pattern to prove its complete transmission.
    Features
    ● 6 Channels Two-way 12G-SDI High density digital video fiber transmission
    ● 6 Channels Two-way 3-pin XLR balanced Audio fiber transmission
    ● 2 ports 10/100/1000M Isolated Ethernet transmission, Independent operation without interference
    ● Handle all Pathological patterns
    ● Supports SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI, Serial Digital Video Standards
    ● With integrated reclocker 270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s
    ● 0~5Km on single Mode Fiber transmission
    ● Supports hot swapping and hot plugging
    ● Supports IEC and SMPTE dual power output.
    Application
    ● Event production;
    ● Live on optical fiber transmission;
    ● TV remote studio;
    ● The military and public security command and control
     Specification
    Optical Index：
    Wavelength:
    1270~1610nm Wavelength
    Output Power:
    0~5dBm
    Optical fiber:
    9/125u single mode
    Rx sensitivity:
    ≤-10dBm
    Optical connector:
    3K.93C SMPTE FXW and EDW
    Distance:
    Default: SM: 0-5KM
    12G-SDI input/output
    Signal format:
    SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI,
    Data rate:
    270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s
    Cable Equalization:
    Automatic cable EQ (Belden 1694A cable)
    75 m at 11.88 Gbps (4Kp60 UHD)
    100 m at 5.94 Gbps (UHD)
    190 m at 2.97 Gbps (FHD)
    260 m at 1.485 Gbps (HD)
    450 m at 270 Mbps (SD)
    SDI interface:
    BNC 75 Ohm
    Jitter:
    ≤0.2UI
    Auto scale:
    When 12G-SDI input, and SDI output connect 3G Monitor, the image will be automatically scales.
    Number of transmitter channel:
    6-CH 12G-SDI Video Input + 6-CH 12G-SDI Video Output
    Number of Receiver channel:
    6-CH 12G-SDI Video Input + 6-CH 12G-SDI Video Output
    XLR balanced Audio
    Input Connector
    XLR（female）
    Output Connector
    XLR（male）
    Input / Output Impedance
    10K Ohm
    Input capacitance LINE inputs
    10 pF
    Max input/output voltage
    1.228Vp-p （+4dB）
    Frequency Response
    20 Hz～24kHz @±3dB
    Sample Rates From
    48kHz
    SNR:
    > 80dB
    Number of transmitter channel:
    6-CH XLR Audio Input + 6-ch XLR Audio Output,
    Number of Receiver channel:
    6-ch XLR Audio Output + 6-CH XLR Audio Input,
    Ethernet
    Work mode:
    Full duplex/half duplex
    Data Rate:
    10/100/1000Mbps(AUTO)
    Connection terminal:
     RJ45
    Number of transmitter channel:
    2-ch Isolated 10/100/1000M Ethernet
    Number of Receiver channel:
    2-ch Isolated 10/100/1000M Ethernet
    General index
    Transmitter power supply:
    Remote SMPTE FXW-EDW Hybrid power supply from Receiver,  and one IEC AC 90~240V output ,
    Receiver Power supply:
    IEC 90~240V input
    Transmitter Switch:
    Three-speed switch(Control Remote power/Off/IEC power)
    Receiver Switch:
    Second gear switch(Control IEC power/Off)
    Net weight:
    Approax. 7.5KG /pair
    Dimension:
    19‘‘ Standard 2U rack-mount chassis
    Case material:
    Aluminum
    Power consumption:
    ≤ 30 w
    Humidity:

    If you have any special requirements or questions that require prior consultation. Please fill out the following form and we will have the specialist contact you as soon as possible.
