Description:

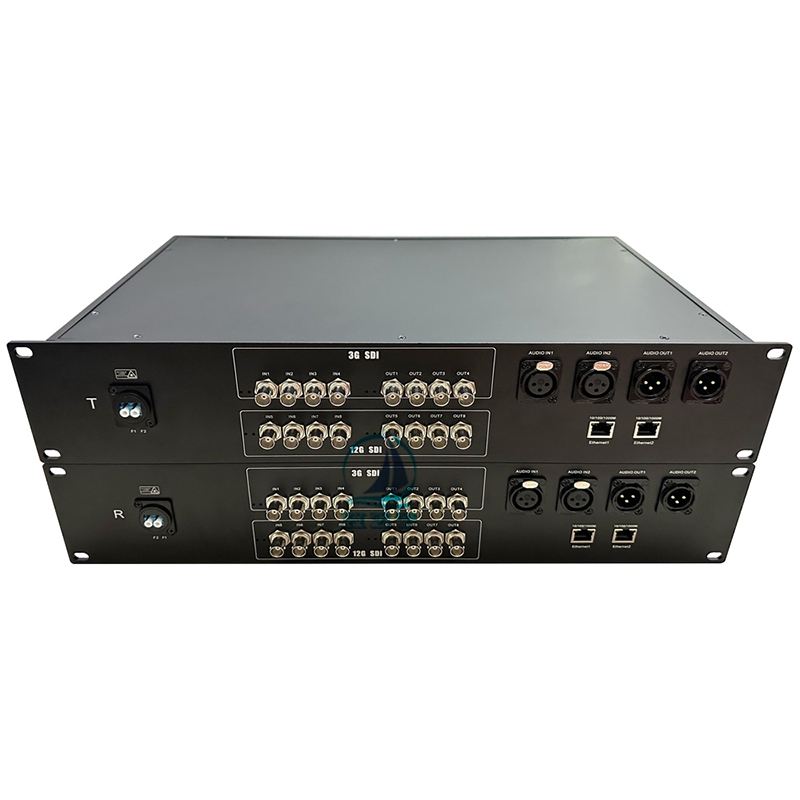

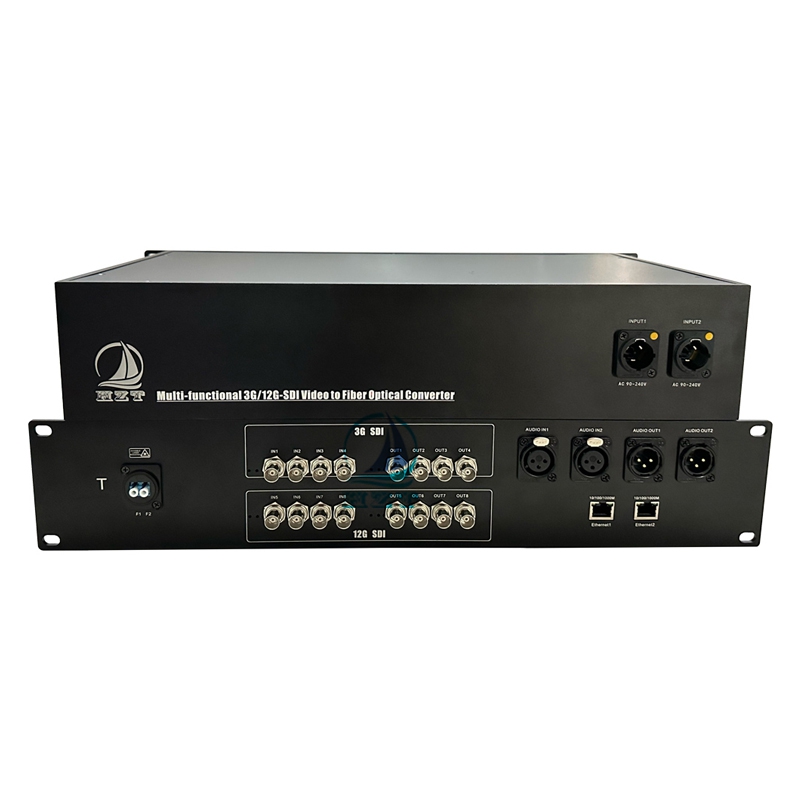

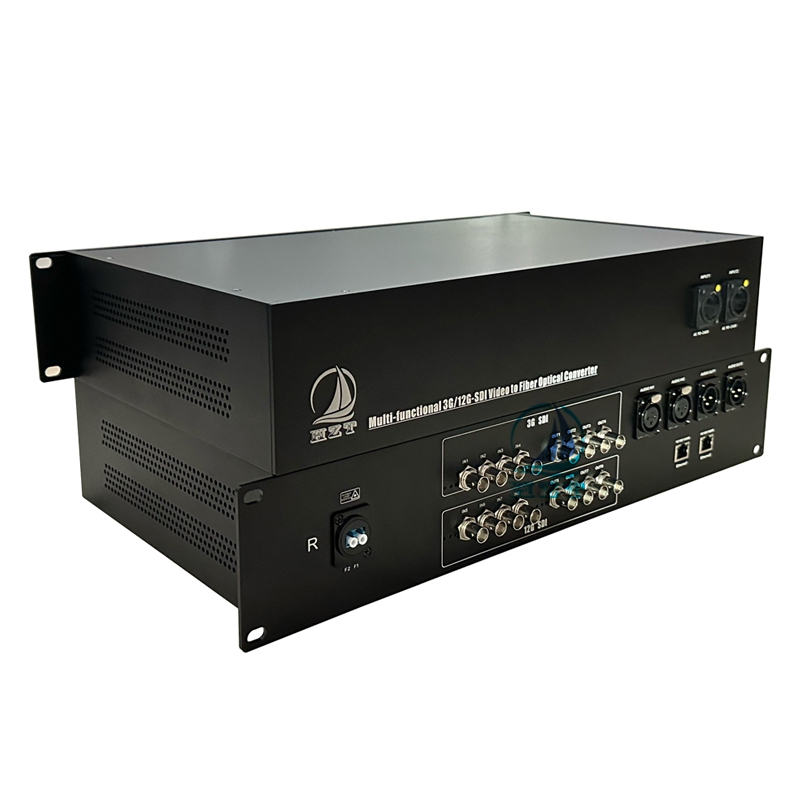

HZT-SDI-HG-4VV4VV2AA2ESM002 is designed and produced by HZT technology and which has an ideal solution for broadcasting event production applications. It can transmits 4-ch Bi-directional 12G-SDI digital video signal+4-ch Bi-directional 3G/HD-SDI digital video + 2-ch Bi-directional 3-pin XLR balanced Audio + 2 port 10/100/1000M Isolated Ethernet over Duplex LC Fiber Converter. It supports transmission of UHDTV/4K/8K/HDTV/SDTV SDI signal. Each of the 3G/HD-SDI signals are fully isolated from each other and operate at a full 2.97 Gbps data rate. Each channel carries its own embedded audio.To achieve no delay, no compression, high-quality signal extension of 10 kilometers.

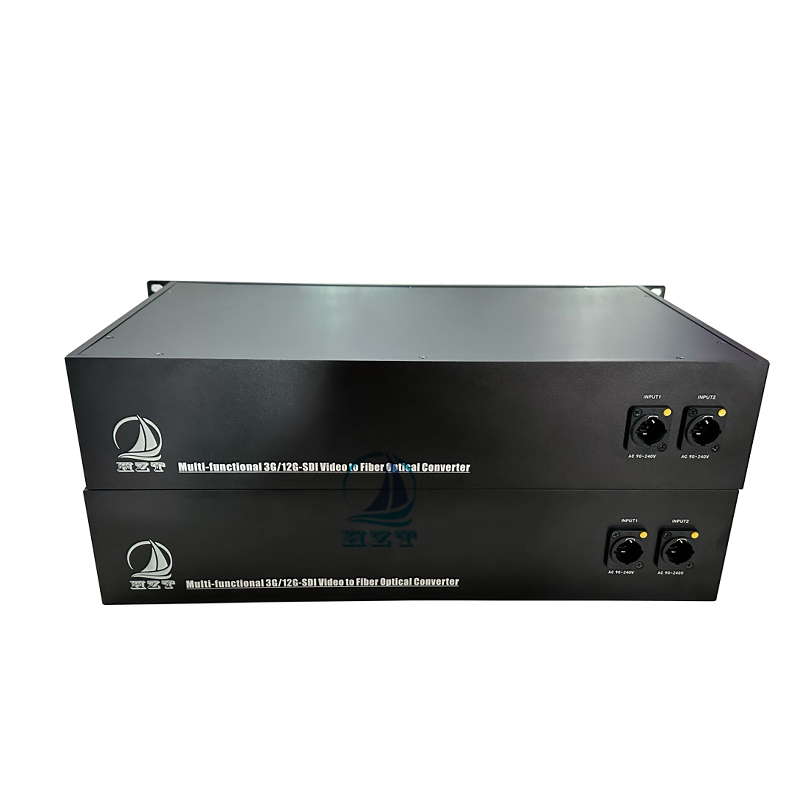

The high light of HZT-SDI-HG-4VV4VV2AA2ESM002 is using Dual PowerCon Power instead of IEC power. During the use of traditional IEC power supply, the power line may fall off due to human accidentally touching or tripping, affecting the video production , but PowerCon can be fixed and locked on the chassis, so effectively avoid this situation. At the same time,HZT technology uses a dual power mode, you can plug in 2 Powercon power cables, or use either one of them, the other as a redundancy power, if one break, the other one can also ensure the converter works normal. The second highlight of our Fiber converter is when you plug into 12G-SDI input, but you use for a 3G monitor, the image will automatically scales and adapts to 3G displays.
Both transmitter and receiver provide equalizing and re-clocking at input unit in order to re-construct the signal for consistent quality. Besides, with HZT technology advanced fiber
technology, SDI can easily pass pathological pattern to prove its complete transmission.
Features
● Mixed 3G/HD-SDI +12G-SDI High density digital audio/video fiber transmission
● 2 Channels Two-way 3-pin XLR Analog balanced Audio fiber transmission
● 2 ports 10/100/1000M Isolated Ethernet transmission, Independent operation without interference
● Handle all Pathological patterns
● 3G-SDI Video: Support SMPTE-424M 3Gbps HD-SDI、SMPTE-292M HD-SDI 、 SMPTE-259M SDI , SD, HD, 3G,12G input auto identification，support three data rate 270Mbit/s - 1.48Gbit/s - 3Gbit/s；support 1080P 3Gbps HD-SDI format
● 12G-SDI: Supports SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M, and SMPTE 259M (C) Serial Digital Video Standards, Supports 270Mbit/s - 1.48Gbit/s - 3Gbit/s, 5.94Gbit/s, and 11.88Gbit/s Serial Data Rate
● Support 0-10Km on single Mode Fiber transmission
● 1470~1610nm CWDM wavelengths optional.
Application
● 12G/3G/HD-SDI monitor system;
● Live on optical fiber transmission;
● TV remote studio;
● The military and public security command and control
● Event production;
