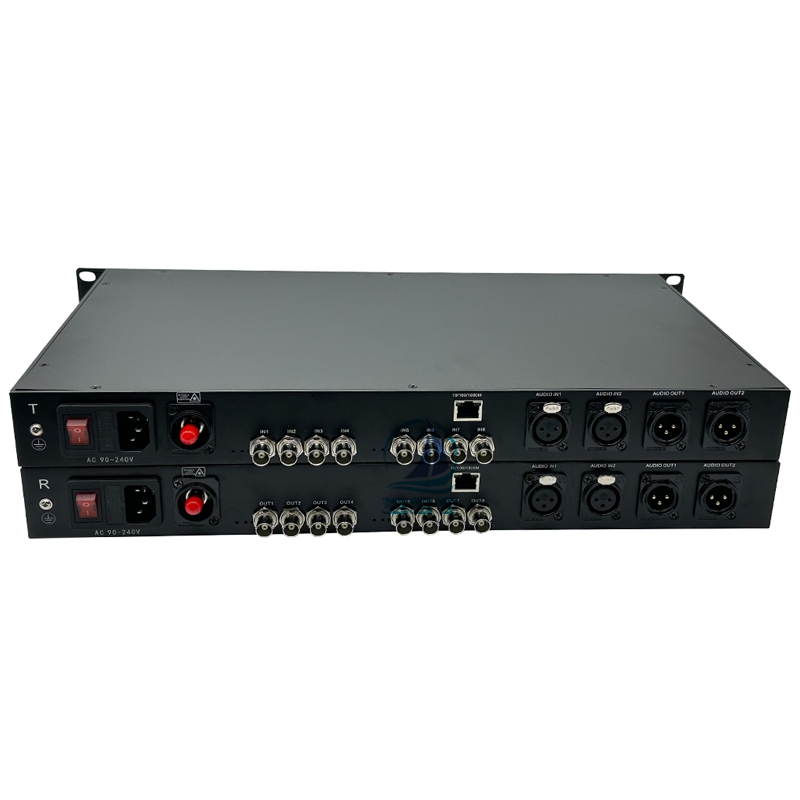

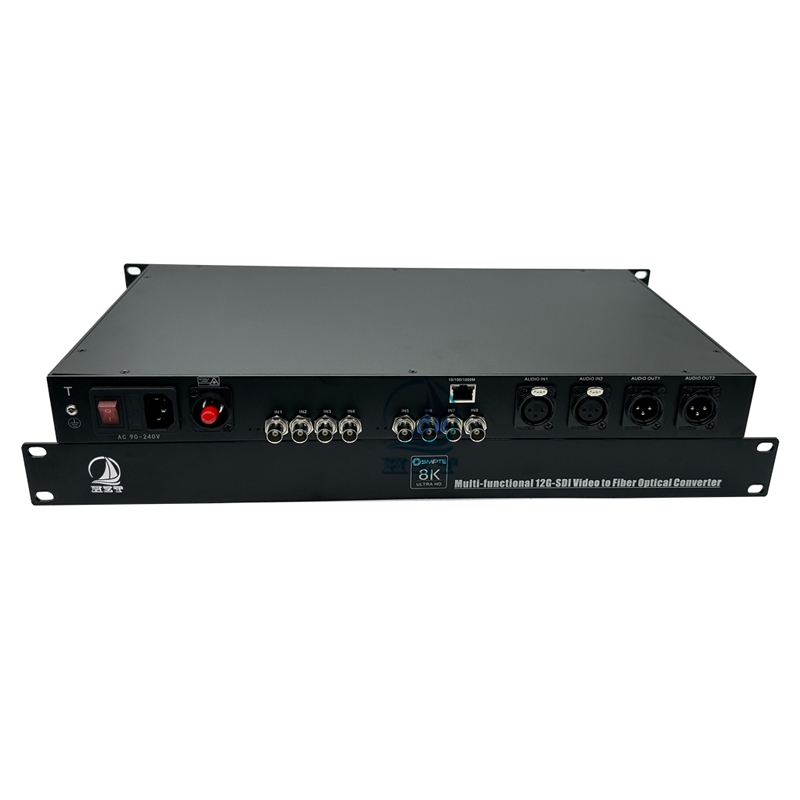

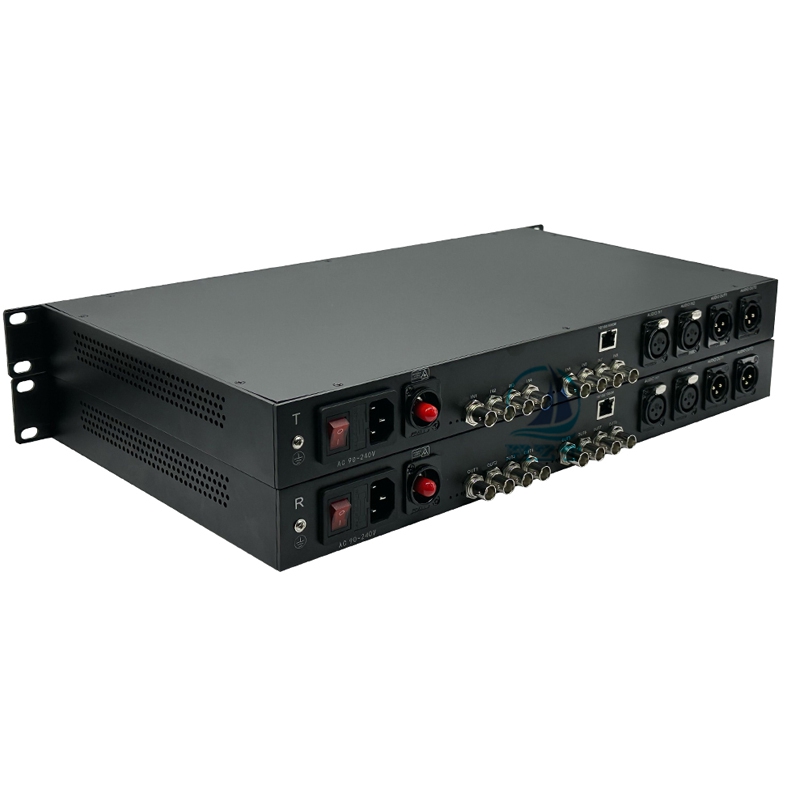

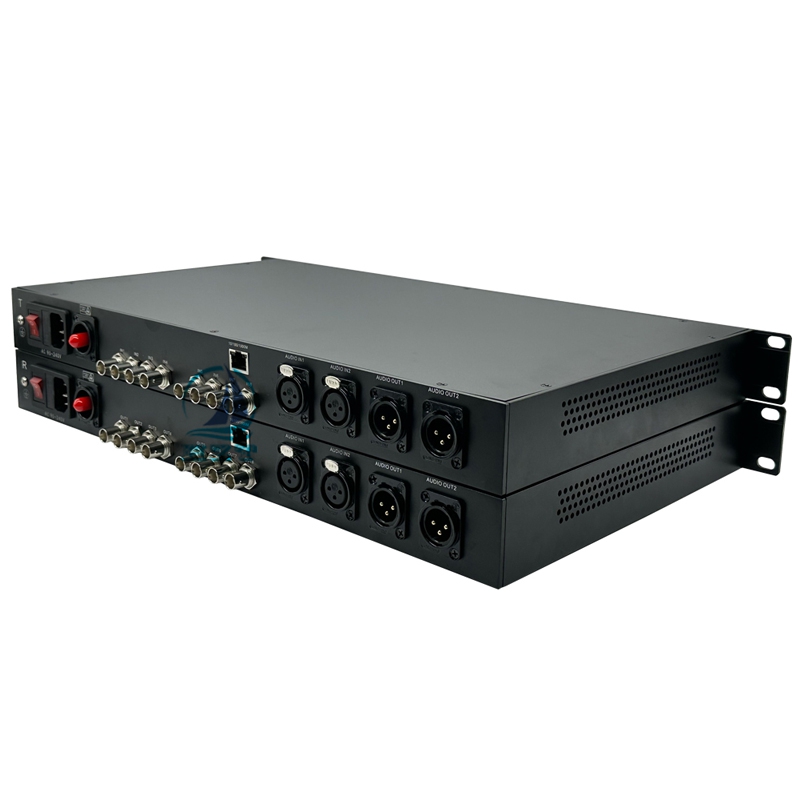

Optical Index：
|
|
|
Wavelength:
|
CWDM Wavelength Optional
|
|
Output Power:
|
0~5dBm（0±3dBm optional）
|
|
Optical fiber:
|
9/125u single mode
|
|
Rx sensitivity:
|
-10dBm～0 dBm
|
|
Optical connector:
|
Single ST Connector (LC, SC, FC Optional)
|
|
Distance:
|
Default: SM: 0-10KM
|
|
12G-SDI input/output
|
|
|
Signal format:
|
SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI,
|
|
Data rate:
|
270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s
|
|
Cable Equalization:
|
Automatic cable EQ (Belden 1694A cable)
75 m at 11.88 Gbps (4Kp60 UHD)
100 m at 5.94 Gbps (UHD)
190 m at 2.97 Gbps (FHD)
260 m at 1.485 Gbps (HD)
450 m at 270 Mbps (SD)
|
|
SDI interface:
|
BNC 75 Ohm
|
|
Jitter:
|
≤0.2UI
|
|
Auto scale:
|
When 12G-SDI input, and SDI output connect 3G Monitor, the image will be automatically scales.
|
|
Number of transmitter channel:
|
8-CH 12G-SDI Video Input
|
|
Number of Receiver channel:
|
8-CH 12G-SDI Video Output
|
|
3-pin XLR Balanced Audio
|
|
|
Input Connector:
|
XLR（Female）
|
|
Output Connector:
|
XLR（Male）
|
|
Input / Output Impedance:
|
10K Ohm
|
|
Input capacitance LINE inputs:
|
10 pF
|
|
Max input/output voltage:
|
1.228Vp-p （+4dBu）
|
|
Frequency Response:
|
20 Hz～24kHz @±3dB
|
|
Sample Rates From:
|
48kHz
|
|
SNR:
|
> 80dB
|
|
Number of transmitter channel:
|
2-CH XLR Audio Input, 2-ch XLR Audio Output,
|
|
Number of Receiver channel:
|
2-ch XLR Audio Output, 2-CH XLR Audio Input,
|
|
Ethernet
|
|
|
Work mode:
|
Full duplex/half duplex
|
|
Data Rate:
|
10/100/1000Mbps (AUTO)
|
|
connection terminal:
|
RJ45
|
|
Number of transmitter channel:
|
2-ch Isolated 10/100/1000M Ethernet
|
|
Number of Receiver channel:
|
2-ch Isolated 10/100/1000M Ethernet
|
|
General index
|
|
|
Input power:
|
AC90~240V
|
|
Net weight:
|
Approax. 7.5KG /pair
|
|
Dimension:
|
19‘‘ Standard 2U rack-mount chassis
|
|
Case material:
|
Aluminum
|
|
Power consumption:
|
≤ 30 w
|
|
Humidity:
|
0 ~ 95% (non-condensing)
|
|
Operation Temperature:
|
-20°C to 55°C
|
|
Storage Temperature:
|
-10°C to 70°C
|
 |
