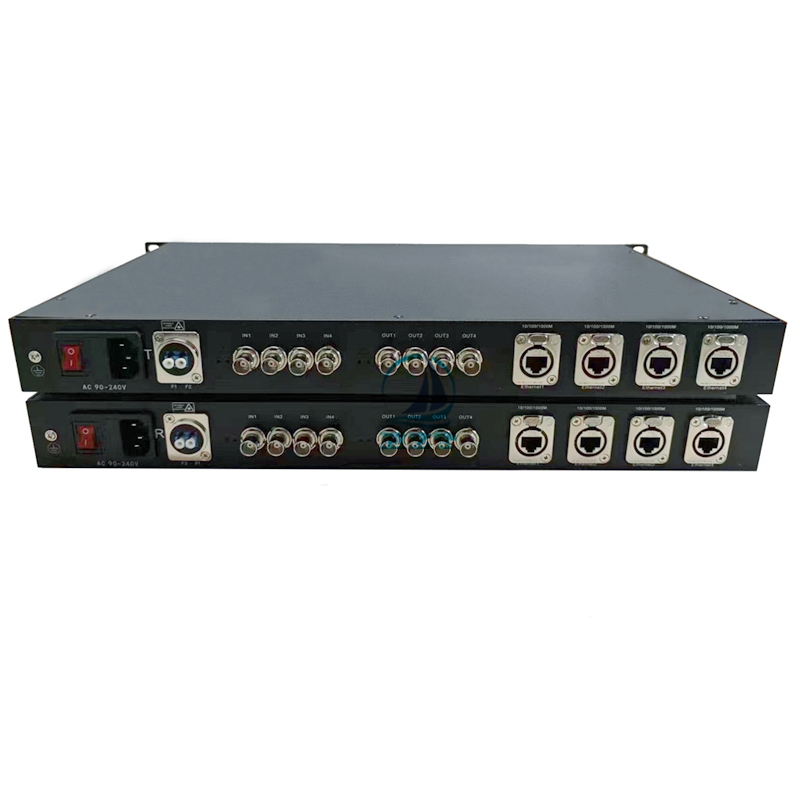

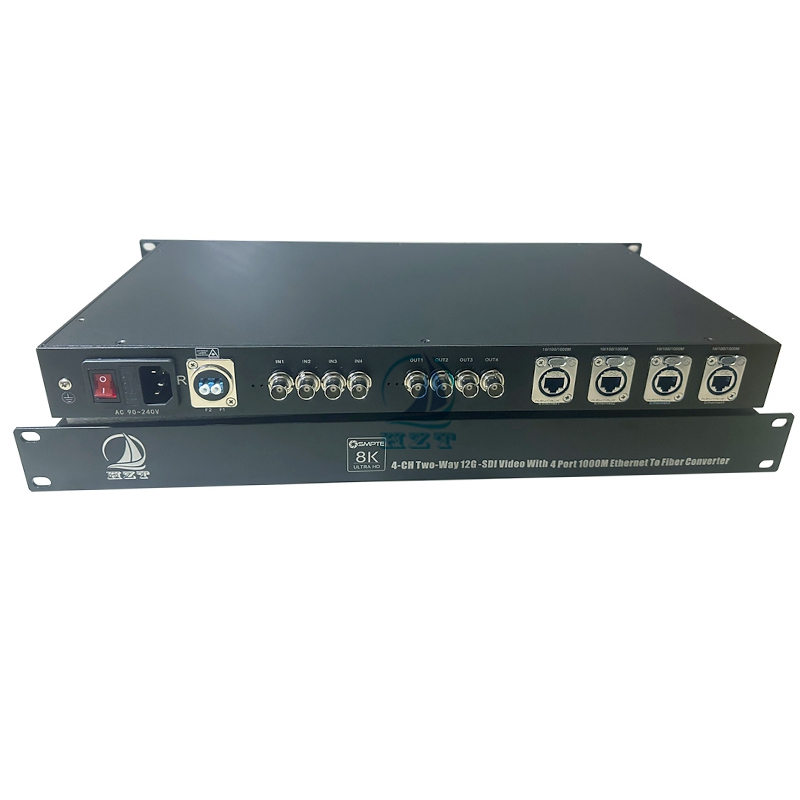

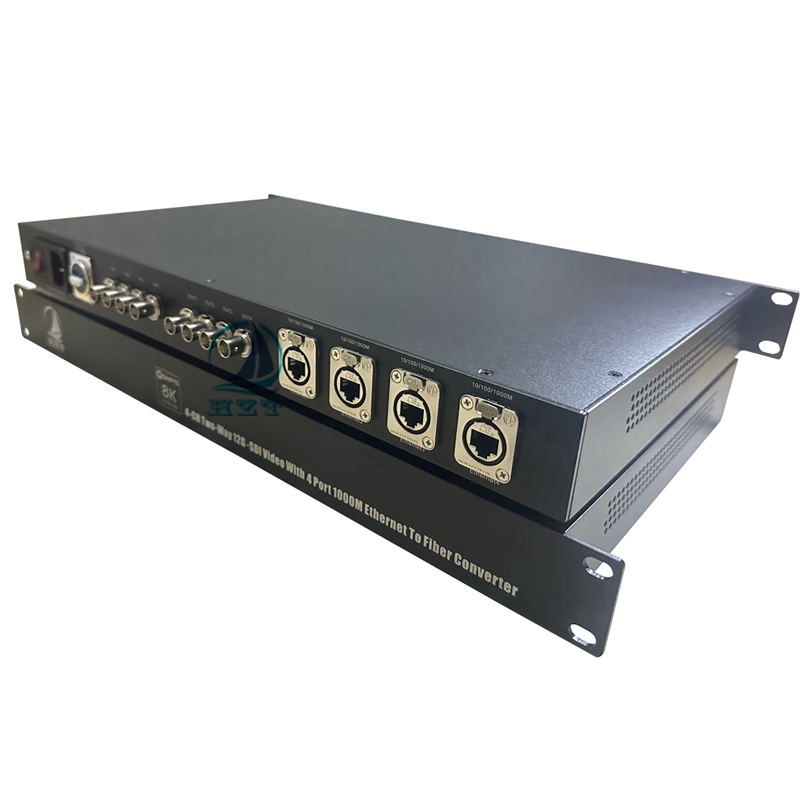

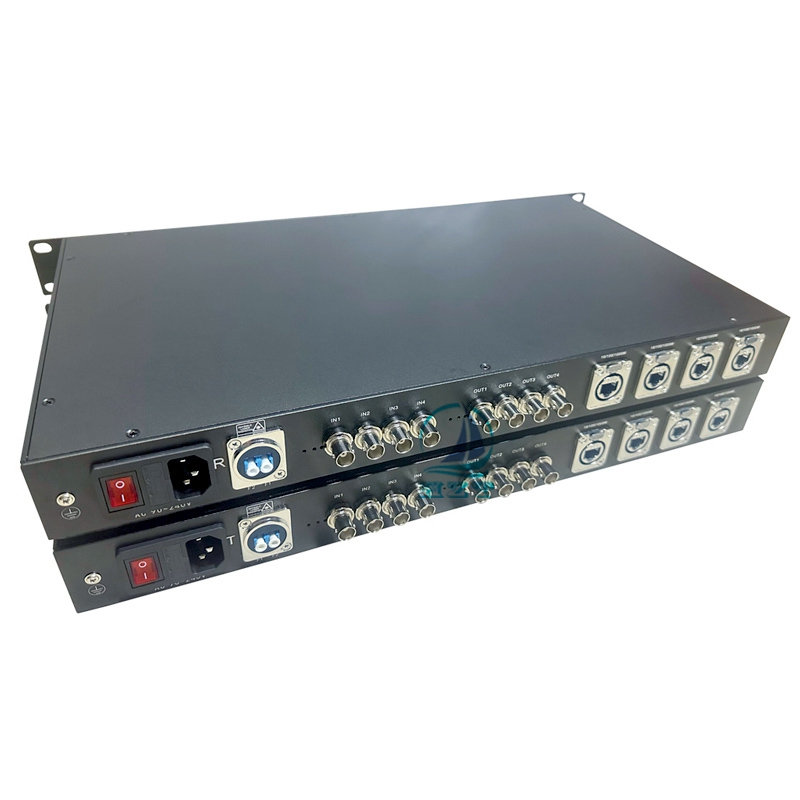

4-CH Two-way 12G-SDI With 4-CH Independent 1000M Ethernet To Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT-SDI-12G-4V4V4E-SM002 is developed by HZT technology and has independent intellectual property rights. It can transmits 4-ch Bi-directional 12G-SDI video signal with 4 port 10/100/1000M Ethernet(etherCON® RJ45 Connectors) over dual LC Fiber , to achieve no delay, no compression, high-quality signal extension of 10 kilometers. It also can compatible with 6G/3G SDI signals.
    The optical module and core circuit of the HZT-SDI-12G-4V4VESM002 fiber optical extender are imported components, stable performance, the use of integrated circuit design, simple design, easy to install and debug, maintenance-free, and because of the use of optical fiber as the transmission medium, so excellent performance, high temperature resistance, cold, can effectively prevent strong electromagnetic radiation interference, lightning impact and power surge. Greatly improve the stability and reliability.
    Features
    ● 8 Channel 12G-SDI High density digital audio/video fiber transmission
    ● Handle all Pathological patterns
    ● SD, HD, 3G, 6G,12G input auto identification,support 270Mbit/s - 11.88Gbit/s data rate
    ● Support SMPTE ST-2082, SMPTE ST-2081, SMPTE-424M, SMPTE-292M, SMPTE-259M
    ● 10KM on single Mode Fiber transmission
    Connection Diagram

    Specification
    Optical Index
    Wavelength:
    CWDM Wavelength Optional
    Output Power:
    0~5dBm(0±3dBm optional)
    Optical fiber:
    9/125u single mode
    Rx sensitivity:
    -10dBm~0 dBm
    Optical connector:
    Dual LC Connector (Dual ST, SC, FC Optional)
    Distance:
    Default: SM: 0-10KM
    12G-SDI input/output
    Signal format:
    SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI,
    Data rate:
    270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s
    Cable Equalization:
    Automatic cable EQ (Belden 1694A cable)
    75 m at 11.88 Gbps (4Kp60 UHD)
    100 m at 5.94 Gbps (UHD)
    190 m at 2.97 Gbps (FHD)
    260 m at 1.485 Gbps (HD)
    450 m at 270 Mbps (SD)
    SDI interface:
    BNC 75 Ohm
    Jitter:
    ≤0.2UI
    Auto scale:
    When 12G-SDI input, and SDI output connect 3G Monitor, the image will be automatically scales.
    Number of transmitter channel:
    8-CH 12G-SDI Video Input
    Number of Receiver channel:
    8-CH 12G-SDI Video Output
    Ethernet
    Work mode:
    Full  duplex/half duplex
    Data Rate:
    10/100/1000Mbps  (AUTO)
    connection terminal:
     RJ45
    Number of transmitter channel:
    4-ch Isolated 10/100/1000M Ethernet With  EtherCON® RJ45 Connector
    Number of Receiver channel:
    4-ch Isolated 10/100/1000M Ethernet With etherCON®RJ45 Connectors
    General index
    Input power:
    AC90~240V
    Net weight:
    Approax. 7.5KG /pair
    Dimension:
    19‘‘ Standard 2U rack-mount chassis
    Case material:
    Aluminum
    Power consumption:
     30 w
    Humidity:
    0 ~ 95% (non-condensing)
    Operation Temperature:
    -20°C to 55°C
    Storage Temperature:
    -10°C to 70°C
