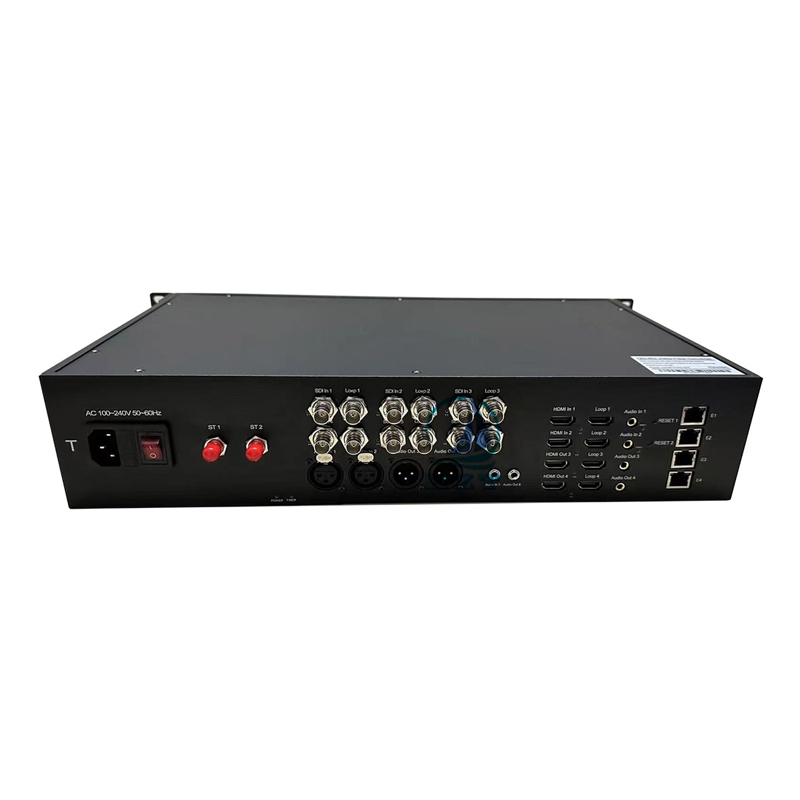

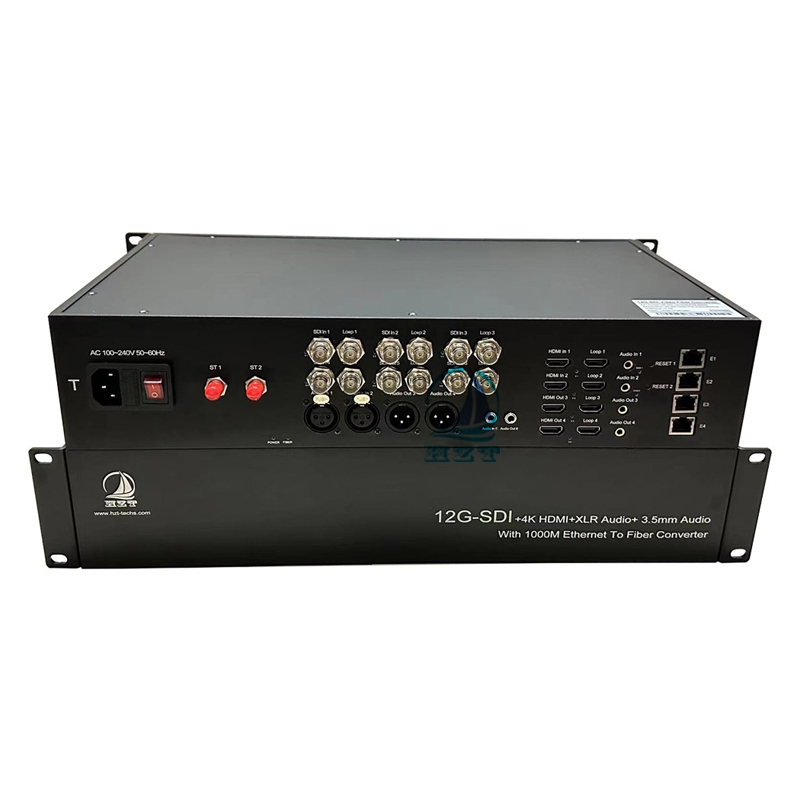

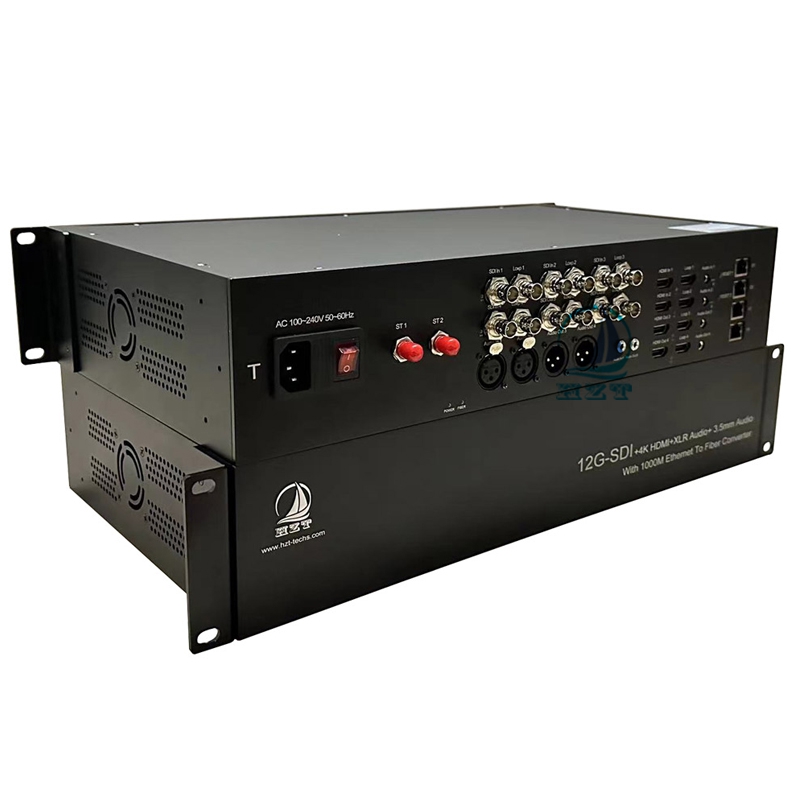

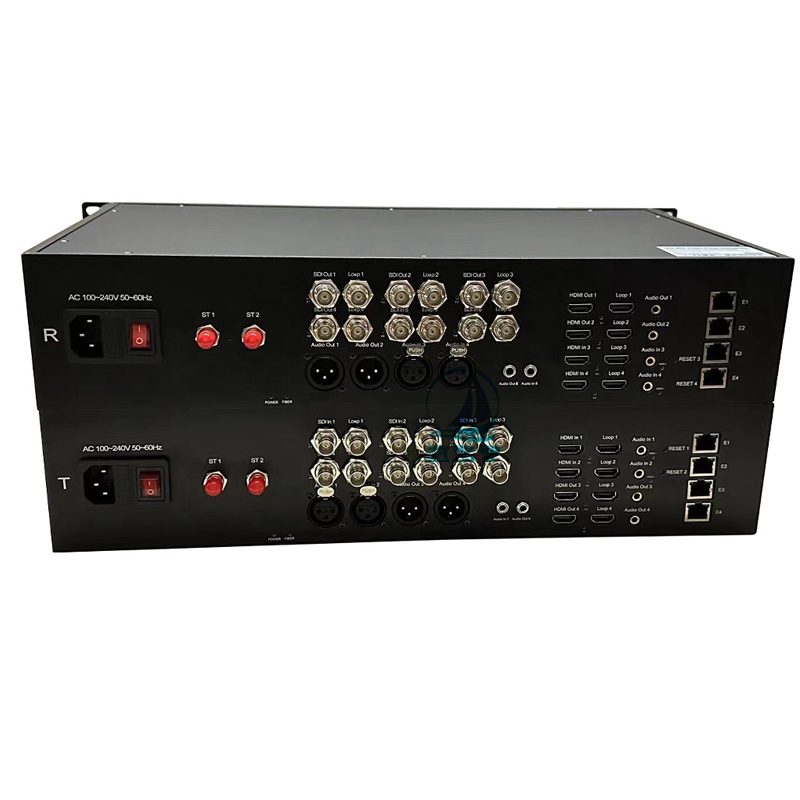

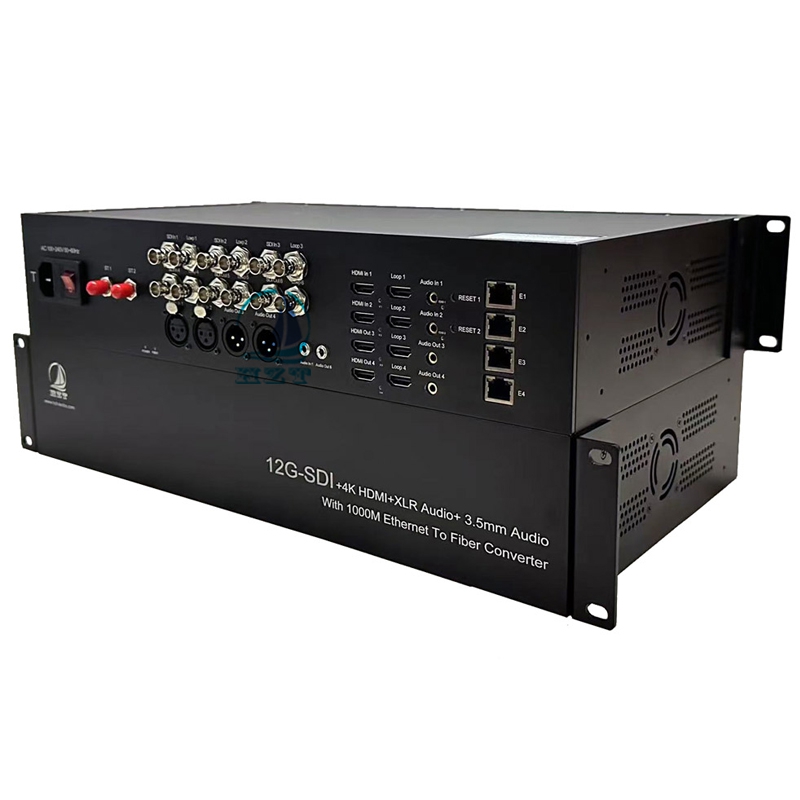

4-CH 12G-SDI+2-CH BIDI 4K HDMI+2-CH BIDI XLR Audio+ 1-ch BIDI 3.5MM Audio+4-CH Ethernet To Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT-SDI-12G-4V2V2HH2XA1AA4E-SM002 is designed and produced by HZT technology and which has an ideal solution for broadcasting event production applications. It can transmits 4-ch 12G-SDI digital video signal+ 2-ch Return 12G-SDI Video+  2-ch Bi-directional 3-pin XLR balanced Audio + 2-ch BIDI 4K HDMI@60HZ Video + 4-CH 10/100/1000M Ethernet over dual ST Fiber Converter. It supports transmission of UHDTV/4K/8K/HDTV/SDTV SDI signal. Each of the 12G/HD-SDI signals are fully isolated from each other and operate at a full 11.97 Gbps data rate.  Each channel carries its own embedded audio. To achieve no delay, no compression, high-quality signal extension of 10 kilometers.
    Both transmitter and receiver provide equalizing and re-clocking at input unit in order to re-construct the signal for consistent quality. Besides, with HZT technology advanced fiber technology, SDI can easily pass pathological pattern to prove its complete transmission.
    The highlight of HZT-SDI-12G-4V2V2HH2XA1AA4E-SM002 is the integration of HDMI signal and SDI signal into one box. No matter the signal source is 12G-SDI or 4K HDMI, it can be transmitted to the Ob-van through one single LC fiber. It greatly increases the ease of production, and there is no need to re-purchase a separate HDMI Fiber converter.
    Feature
    ● 4-ch 12G-SDI +2-ch Return 12G-SDI High density digital audio/video fiber transmission
    ● 2-ch Two-way 3-pin XLR Analog balanced Audio fiber transmission
    ● 2-ch BIDI  4K @60HZ HDMI video fiber transmission
    ● Support 3.5mm Audio embeded
    ● Support separate 3.5mm Audio input
    ● Support EDID management function, support built-in EDID/ Manual setup EDID
    ● Handle all Pathological patterns
    ● 12G-SDI: Supports SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M, and SMPTE 259M (C) Serial Digital Video Standards, Supports 270Mbit/s - 1.48Gbit/s - 3Gbit/s, 5.94Gbit/s, and 11.88Gbit/s Serial Data Rate
    ● Support 0-10Km on single Mode Fiber transmission
    ● CWDM wavelengths optional.
    Application
    ● 12G/3G/HD-SDI monitor system;
    ● Live on optical fiber transmission;
    ● TV remote studio;
    ● The military and public security command and control
    ● Event production;

    Specification
    Optical Index：
    Wavelength:
    CWDM Wavelength Optional
    Output Power:
    0~5dBm（0±3dBm optional）
    Optical fiber:
    9/125u single mode
    Rx sensitivity:
    -10dBm～0 dBm
    Optical connector:
    Dual ST Connector (LC, SC, FC Optional)
    Distance:
    Default: SM: 0-10KM
    12G-SDI input/output
    Signal format:
    SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI,
    Data rate:
    270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s
    Cable Equalization:
    Automatic cable EQ (Belden 1694A cable)
    75 m at 11.88 Gbps (4Kp60 UHD)
    100 m at 5.94 Gbps (UHD)
    190 m at 2.97 Gbps (FHD)
    260 m at 1.485 Gbps (HD)
    450 m at 270 Mbps (SD)
    SDI interface:
    BNC 75 Ohm
    Jitter:
    ≤0.2UI
    Auto scale:
    When 12G-SDI input, and SDI output connect 3G Monitor, the image will be automatically scales.
    Number of transmitter channel:
    4-CH 12G-SDI Video Input + 2-CH 12G-SDI Video Output
    Number of Receiver channel:
    4-CH 12G-SDI Video Output + 2-CH 12G-SDI Video Input
    3-pin XLR Balanced Audio
    Input Connector:
    XLR（Female）
    Output Connector:
    XLR（Male）
    Input / Output Impedance:
    10K Ohm
    Input capacitance LINE inputs:
    10 pF
    Max input/output voltage:
    1.228Vp-p （+4dBu）
    Frequency Response:
    20 Hz～24kHz @±3dB
    Sample Rates From:
    48kHz
    SNR:
    > 80dB
    Number of transmitter channel:
    2-CH XLR Audio Input, 2-ch XLR Audio Output,
    Number of Receiver channel:
    2-ch XLR Audio Output, 2-CH XLR Audio Input,
    4K HDMI Video/3.5mm Audio/Ethernet
    HDMI Version:
    HDMI2.0
    Bandwidth:
    18GHz
    Pixel clock:
    594MHZ
    Resolution:
    4096*2160@60Hz and downward compatibility
    Color Precision:
    RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
    Physical interface:
    HDMI Female
    HDMI Cable suggestion:
    ≤10M
    HDMI Numbers of  Transmitter:
    2-ch 4K HDMI Input + 2-ch 4K HDMI Output +3.5mm Audio unembed
    HDMI Numbers of Receiver:
    2-ch 4K HDMI Input + 2-ch 4K HDMI Output +3.5mm Audio unembed
    3.5mm Audio Number of transmitter :
    2-ch Independent 3.5mm Audio input
    3.5mm Audio Number of transmitter :
    2-ch Independent 3.5mm Audio Output
    Ethernet Numbers:
    4-ch Isolated 10/100/1000M Auto Ethernet
    General index
    Input power:
    AC90~240V
    Net weight:
    Approax. 7.5KG /pair
    Dimension:
    19‘‘ Standard 2U rack-mount chassis
    Case material:
    Aluminum
    Power consumption:
    ≤ 30 w
    Humidity:
    0 ~ 95% (non-condensing)
    Operation Temperature:
    -20°C to 55°C
    Storage Temperature:
    -10°C to 70°C
