4 Pairs 12G-SDI 1U Rack Chassis Management

  • Description
  • Technical data
  • Make an inquiry
    Description

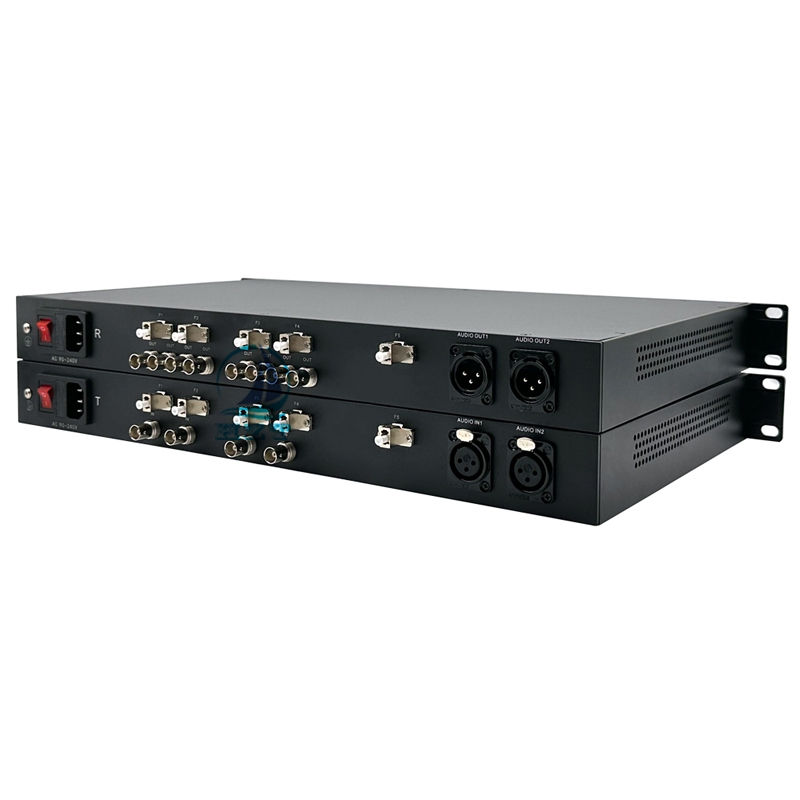

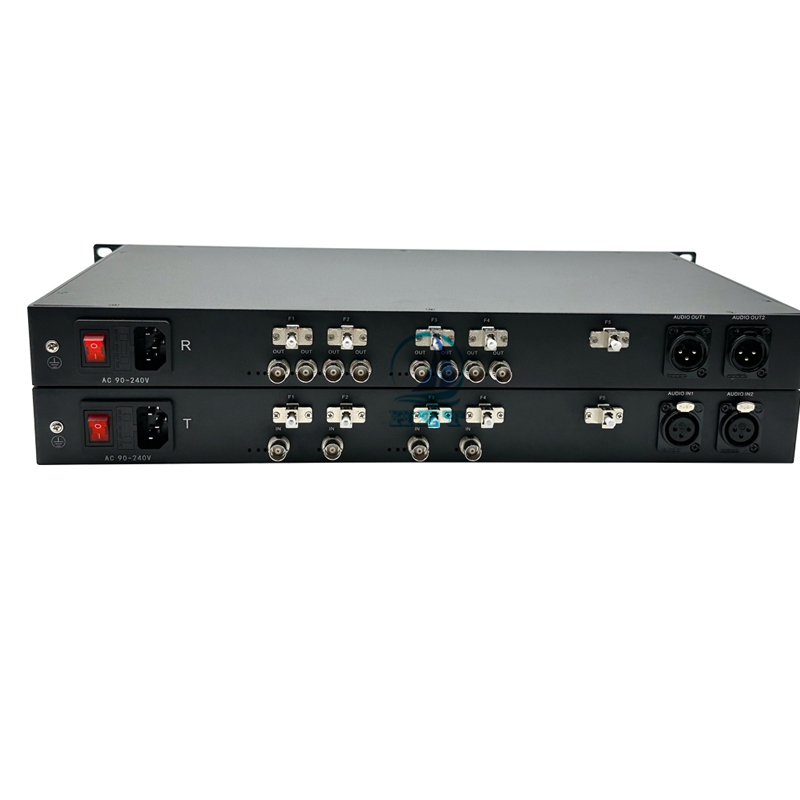

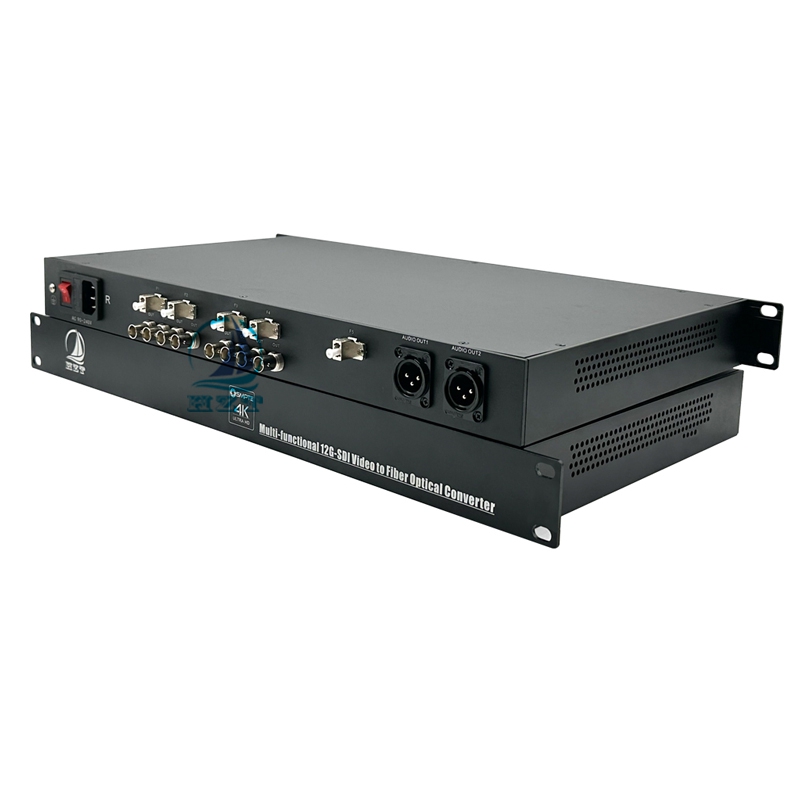

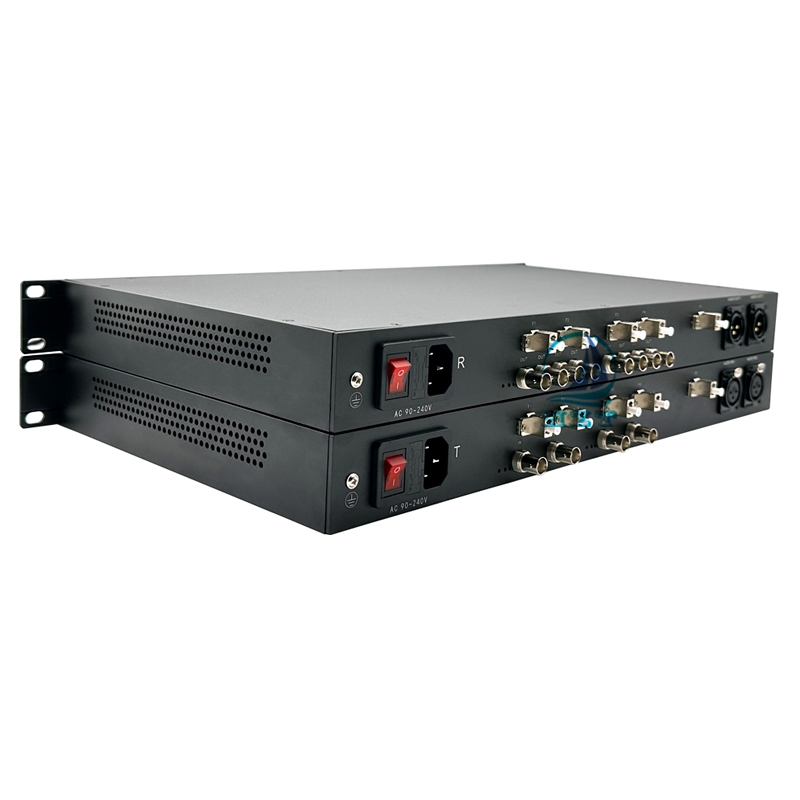

    HZT-4SDI-12G-4V2AA-SM005 is designed and produced by HZT technology and which has an ideal solution for broadcasting event production applications. It includes one 1U transmitter and one 1U receiver, it uses 5 fibers to transmit 4*12G-SDI Signal +1 * 2-ch XLR audio signal. Each 12G-SDI Video uses one LC fiber, and 2-ch XLR audio use one LC fiber. It can extremely save much cost comparing to use one or two LC fiber to transmission.
    In the meantime, if in the field there are multi cameras and each has a long distance,  the transmitter side also can made into Separate desk-top type, and receiver side still use 1U rack. Each camera can use one separate SDI fiber converter, and in the control room/OB-van, the receiver can installed into wiring rack. It greatly saves space and changes the clutter of the site.
    Feature
    ● 1 channel video and audio transmission of UHDTV/4K/8K/HDTV/SDTV SDI signal over optic fiber
    ● Support independent 2-CH XLR balanced Audio Fiber transmission
    ● Handles pathological pattern
    ● Automatic cable equalization to ensure signal integrity
    ● With integrated reclocker 270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s
    ● Supports SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI,
    ● Long transmission capability at least 500M (MM fiber)/10KM(SM fiber)
    ● Terminal block power input for industrial application ● Supports hot swapping and hot plugging
    ● 5*LC Fiber transmissionm, each 12G-SDI uses 1 LC Fiber, 2-ch XLR Audio use 1 LC fiber.
    Specification
    Optical Index
    Wavelength
    1310nm
    Output Power
    0~5dBm(0±3dBm optional)
    Optical fiber
    9/125u single mode
    Rx sensitivity
    -10dBm~0 dBm
    Optical connector
    5* LC Fiber Connector(Each SDI use 1* LC, XLR audio use 1 *LC.)
    Distance
    Default: SM: 0-10KM
    12G-SDI input/output
    Signal format
    SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI,
    Data rate
    270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s
    Cable Equalization
    Automatic cable EQ (Belden 1694A cable)
    75 m at 11.88 Gbps (4Kp60 UHD)
    100 m at 5.94 Gbps (UHD)
    190 m at 2.97 Gbps (FHD)
    260 m at 1.485 Gbps (HD)
    450 m at 270 Mbps (SD)
    SDI interface
    BNC 75 Ohm
    Jitter:
    ≤0.2UI
    Auto scale:
    When 12G-SDI input, and SDI output connect 3G Monitor, the image will be automatically scales.
    Number of transmitter channel
    1-CH 12G-SDI Video Input,
    Number of Receiver channel
    2-CH 12G-SDI Video Output,
    3-pin XLR Balanced Audio
    Input Connector
    XLR(Female)
    Output Connector
    XLR(Male)
    Input / Output Impedance
    10K Ohm
    Input capacitance LINE inputs
    10 pF
    Max input/output voltage
    1.228Vp-p (+4dBu)
    Frequency Response
    20 Hz~24kHz @±3dB
    Sample Rates From
    48kHz
    SNR
    > 80dB
    Number of transmitter channel
    2-CH XLR Audio Input,
    Number of Receiver channel
    2-ch XLR Audio Output,
    General index
    Input power
    AC90~240V, Dual PowerCon True 1 Redundancy Power
    (PowerCon Optional.)
    Net weight
    Approax. 10 KG /pair
    Dimension
    19‘‘ 2U rack-mount chassis
    Case material
    Aluminum
    Power consumption
    30 w
    Humidity
    0 ~ 95% (non-condensing)
    Operation Temperature
    -20°C to 55°C
    Storage Temperature
    -10°C to 70°C
