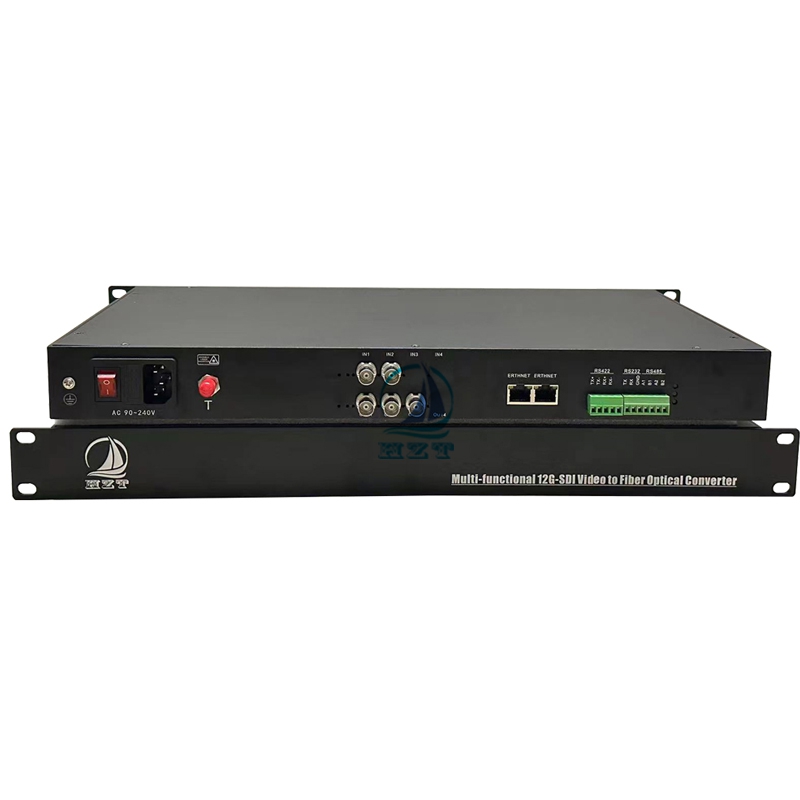

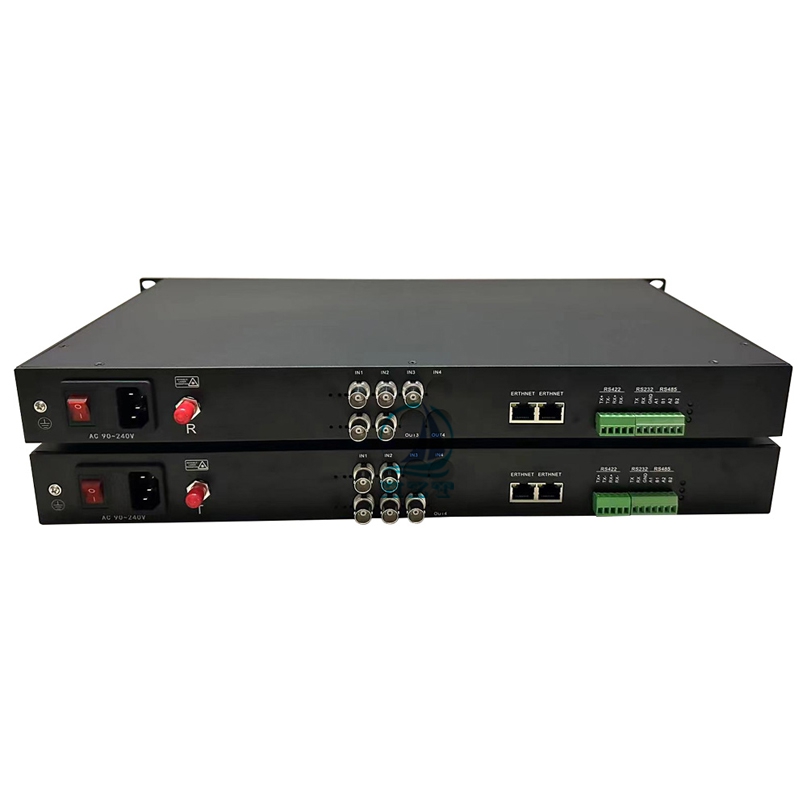

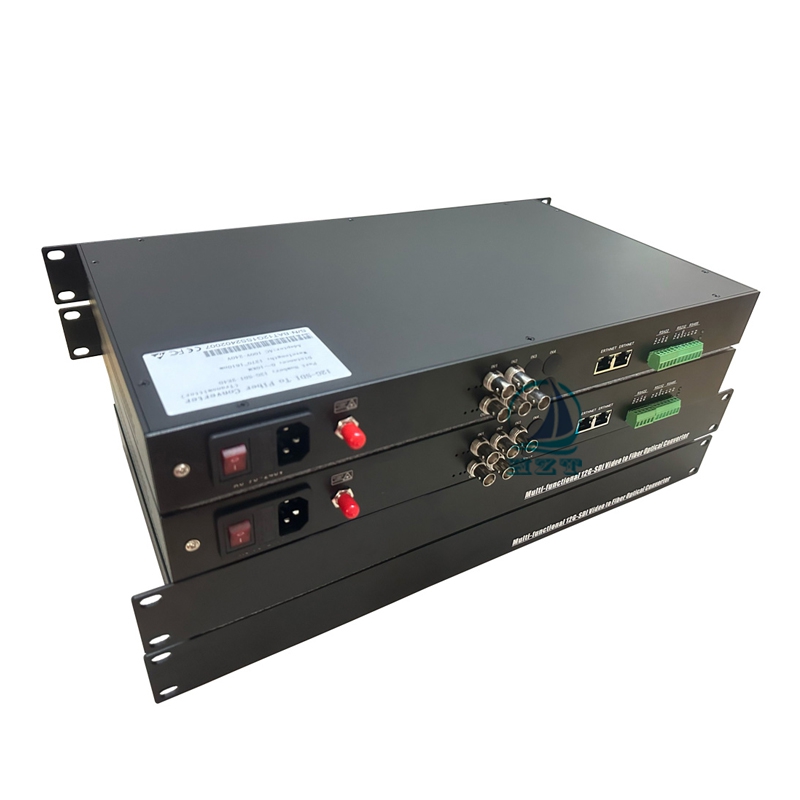

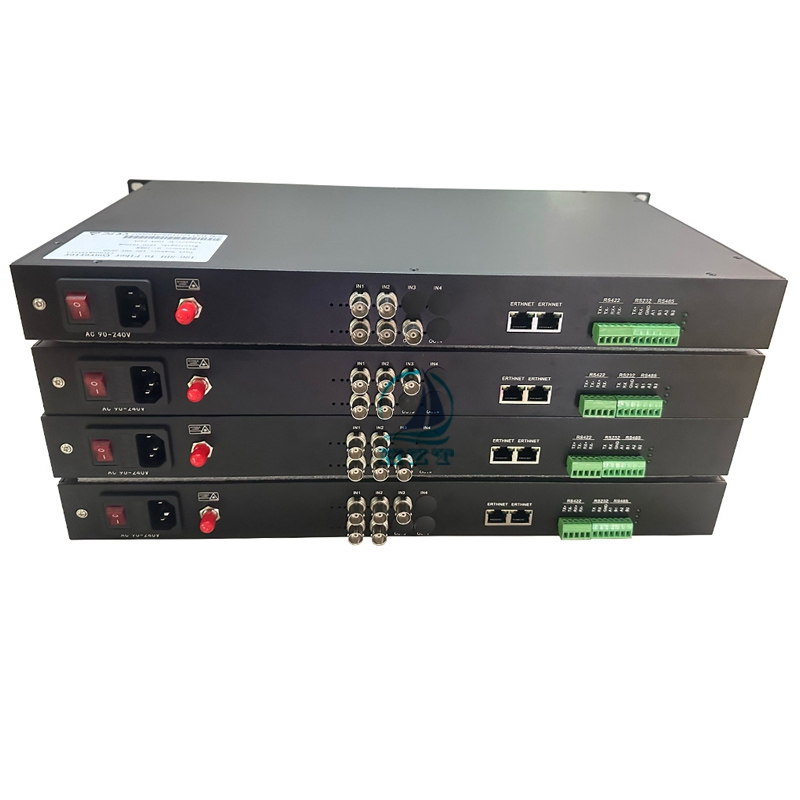

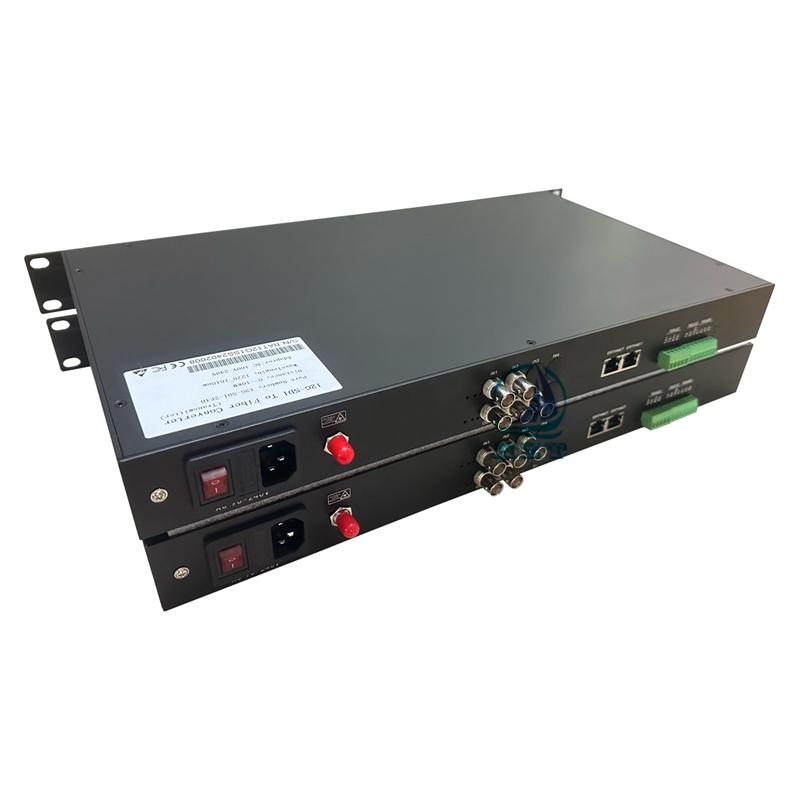

2-CH 12G-SDI Input+3-CH 12G-SDI Output+ RS232/RS485/RS422+ Ethernet To Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT-SDI-12G-2V3V3D2E-SM001 is designed and produced by HZT technology and which has an ideal solution for broadcasting event production applications. It can transmits 2-ch 12G-SDI digital video signal+ 3-ch Return 12G-SDI Video+1-CH RS232 Data+ 1-ch RS422 Data+ 1-ch BIDI Full duplex RS485 Data + 2-CH 10/100/1000M Ethernet over Single ST Fiber Converter. It supports transmission of UHDTV/4K/8K/HDTV/SDTV SDI signal. Each of the 12G/HD-SDI signals are fully isolated from each other and operate at a full 11.97 Gbps data rate.  Each channel carries its own embedded audio. To achieve no delay, no compression, high-quality signal extension of 10 kilometers.
    Both transmitter and receiver provide equalizing and re-clocking at input unit in order to re-construct the signal for consistent quality. Besides, with HZT technology advanced fiber technology, SDI can easily pass pathological pattern to prove its complete transmission.
    Feature
    ● 2-ch 12G-SDI +3-ch Return 12G-SDI High density digital audio/video fiber transmission
    ● Support RS232/RS422/RS485 Data protoco
    ● Support 2 port Indepent Auto 10/100/1000M Ethernet
    ● Handle all Pathological patterns
    ● 12G-SDI: Supports SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M, and SMPTE 259M (C) Serial Digital Video Standards, Supports 270Mbit/s - 1.48Gbit/s - 3Gbit/s, 5.94Gbit/s, and 11.88Gbit/s Serial Data Rate
    ● Support 0-10Km on single Mode Fiber transmission
    ● CWDM wavelengths optional.
    Application
    ● 12G/3G/HD-SDI monitor system;
    ● Live on optical fiber transmission;
    ● TV remote studio;
    ● The military and public security command and control
    ● Event production;

     Specification
    Optical Index:
    Wavelength:
    1270~1610nm Wavelength
    Output Power:
    0~5dBm
    Optical fiber:
    9/125u single mode
    Rx sensitivity:
    ≤-10dBm
    Optical connector:
    Single ST Connector (Single LC, SC, FC Optional)
    Distance:
    Default: SM: 0-10KM
    12G-SDI input/output
    Signal format:
    SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI,
    Data rate:
    270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s
    Cable Equalization:
    Automatic cable EQ (Belden 1694A cable)
    75 m at 11.88 Gbps (4Kp60 UHD)
    100 m at 5.94 Gbps (UHD)
    190 m at 2.97 Gbps (FHD)
    260 m at 1.485 Gbps (HD)
    450 m at 270 Mbps (SD)
    SDI interface:
    BNC 75 Ohm
    Jitter:
    ≤0.2UI
    Auto scale:
    When 12G-SDI input, and SDI output connect 3G Monitor, the image will be automatically scales.
    Number of transmitter channel:
    2-CH 12G-SDI Video Input + 3-CH 12G-SDI Video Output
    Number of Receiver channel:
    2-CH 12G-SDI Video Output + 3-CH 12G-SDI Video Input
    RS232/RS422/RS485 Data
    Data protocol:
    RS232、RS422、RS485、Manchester,BIPHASE data
    Data rate:
    0~500 Kbps
    Error rate:
    < 10-9
    Connector:
    Standard terminal lead
    Data Number of Transmitter Channel:
    1-CH RS232 Input+ 1-CH RS422 Input+ 1-CH BIDI Full-dupelx RS485 Data Input
    Data Number of Receiver Channel:
    1-CH RS232 Output+ 1-CH RS422 Output+ 1-CH BIDI Full-dupelx RS485 Data Output


    Ethernet
    Work mode:
    Full duplex/half duplex
    Data Rate:
    10/100/1000Mbps  (AUTO)
    connection terminal:
     RJ45
    Number of transmitter channel:
    2-ch Isolated 10/100/1000M Ethernet
    Number of Receiver channel:
    2-ch Isolated 10/100/1000M Ethernet
    General index
    Input power:
    AC90~240V
    Net weight:
    Approax. 7.5KG /pair
    Dimension:
    19‘‘ Standard 2U rack-mount chassis
    Case material:
    Aluminum
    Power consumption:
    ≤ 30 w
    Humidity:
    0 ~ 95% (non-condensing)
    Operation Temperature:
    -20°C to 55°C
    Storage Temperature:
    -10°C to 70°C
