Description

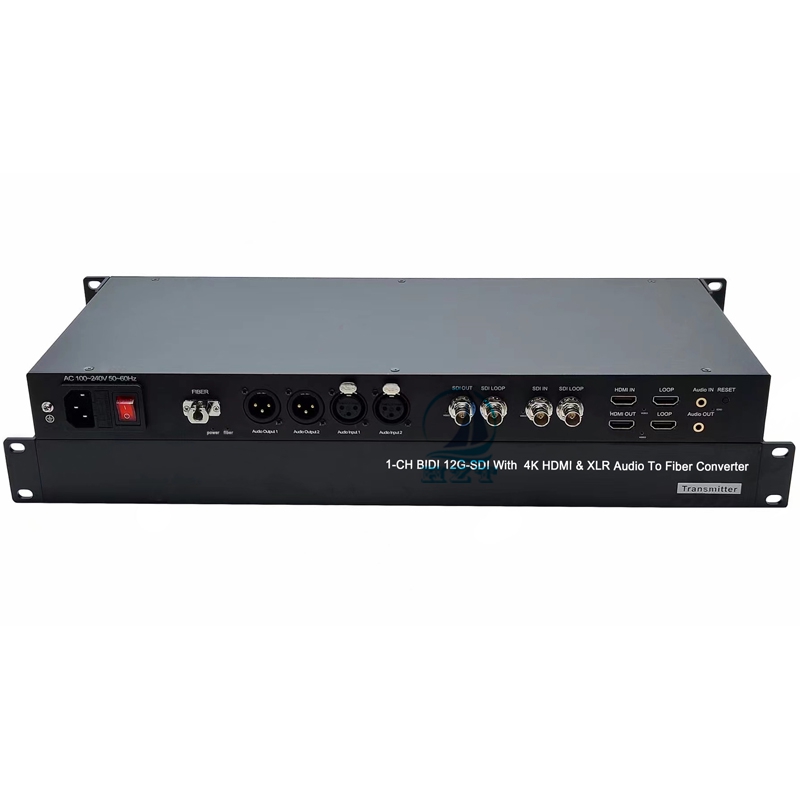

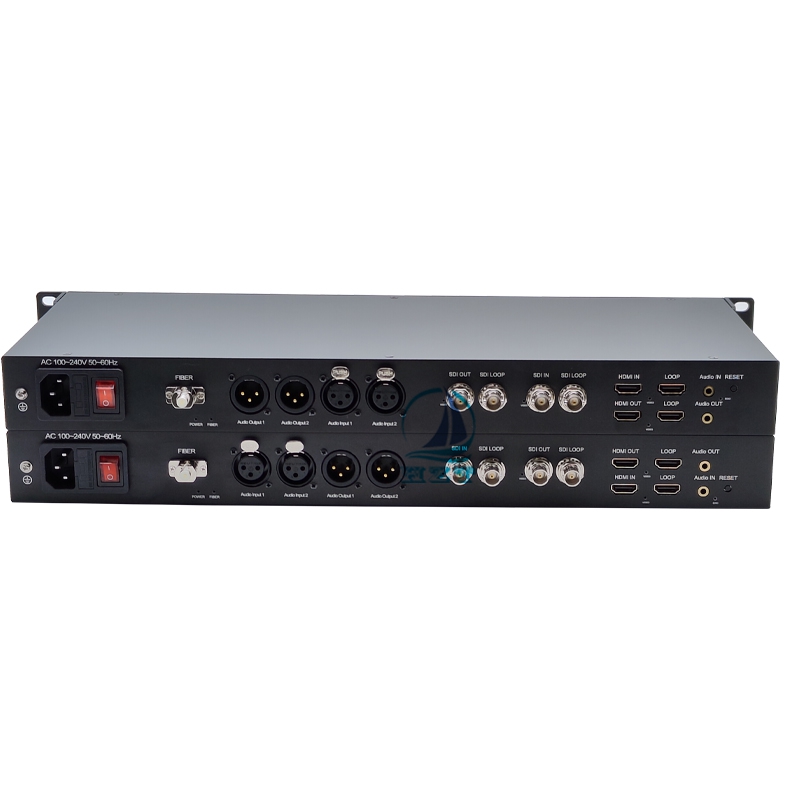

HZT-SDI-12G-2VV2HH2AA-SM001 is designed and produced by HZT technology and which has an ideal solution for broadcasting event production applications. It can transmits 2-ch Bi-directional 12G-SDI digital video signal+ 2-ch Bi-directional 3-pin XLR balanced Audio + 2-ch 4K HDMI@60HZ Video over Single LC Fiber Converter. It supports transmission of UHDTV/4K/8K/HDTV/SDTV SDI signal. Each of the 12G/HD-SDI signals are fully isolated from each other and operate at a full 11.97 Gbps data rate. Each channel carries its own embedded audio. To achieve no delay, no compression, high-quality signal extension of 10 kilometers.
Both transmitter and receiver provide equalizing and re-clocking at input unit in order to re-construct the signal for consistent quality. Besides, with HZT technology advanced fiber technology, SDI can easily pass pathological pattern to prove its complete transmission.
The highlight of HZT-SDI-12G-2VV2HH2AA-SM001 is the integration of HDMI signal and SDI signal into one box. No matter the signal source is 12G-SDI or 4K HDMI, it can be transmitted to the Ob-van through one single LC fiber. It greatly increases the ease of production, and there is no need to re-purchase a separate HDMI Fiber converter.
Feature
● 2-ch Bi-directional 12G-SDI High density digital audio/video fiber transmission
● 2-ch Two-way 3-pin XLR Analog balanced Audio fiber transmission
● 1-ch bidi 4K @60HZ HDMI video fiber transmission
● Support EDID management function, support built-in EDID/ Manual setup EDID
● Handle all Pathological patterns
● 12G-SDI: Supports SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M, and SMPTE 259M (C) Serial Digital Video Standards, Supports 270Mbit/s - 1.48Gbit/s - 3Gbit/s, 5.94Gbit/s, and 11.88Gbit/s Serial Data Rate
● Support 0-10Km on single Mode Fiber transmission
● CWDM wavelengths optional.
Application
● 12G/3G/HD-SDI monitor system;
● Live on optical fiber transmission;
● TV remote studio;
● The military and public security command and control
● Event production;
