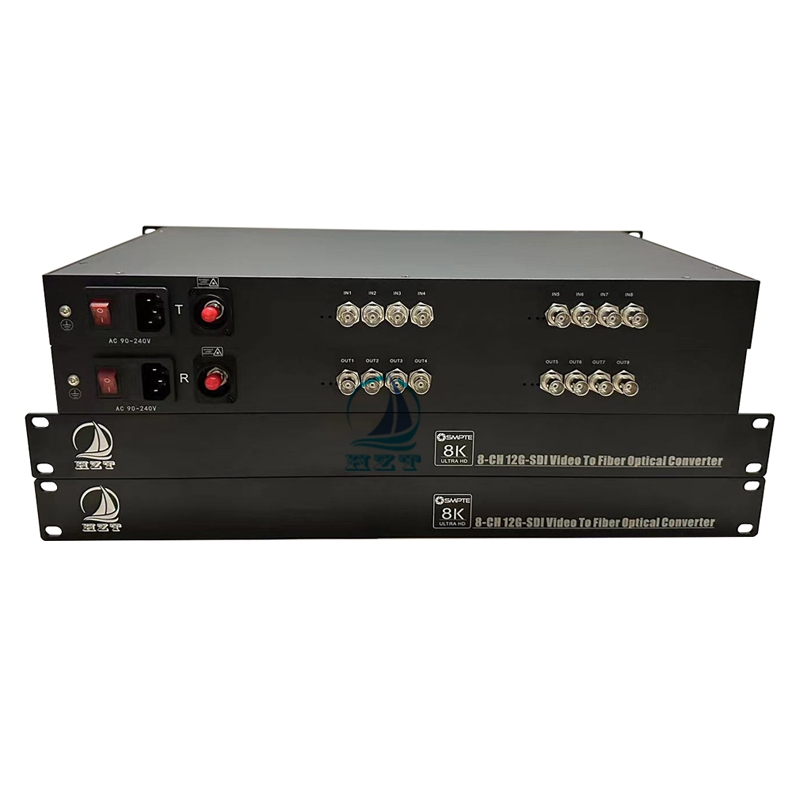

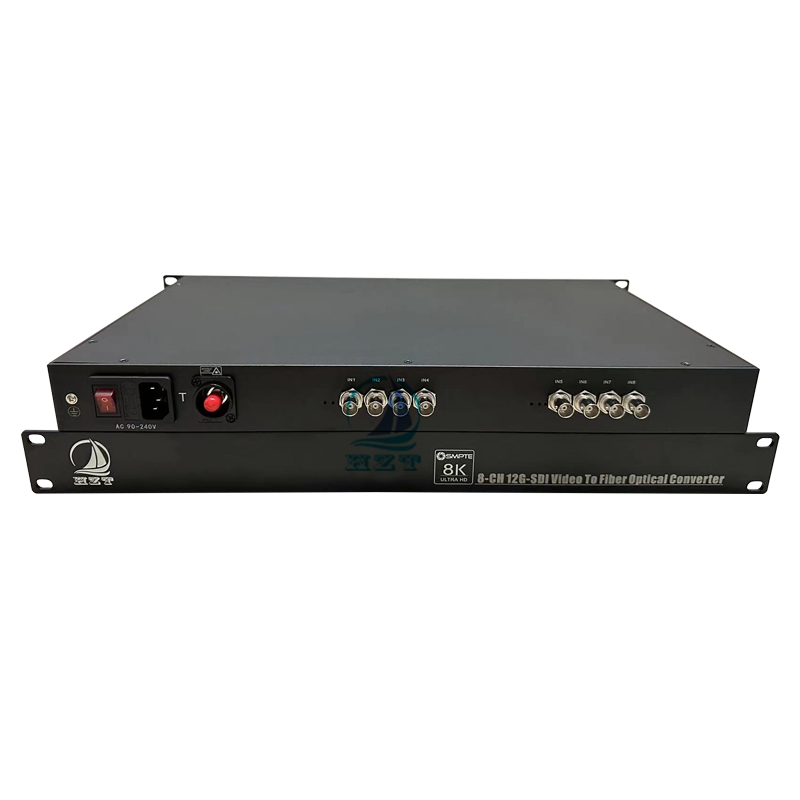

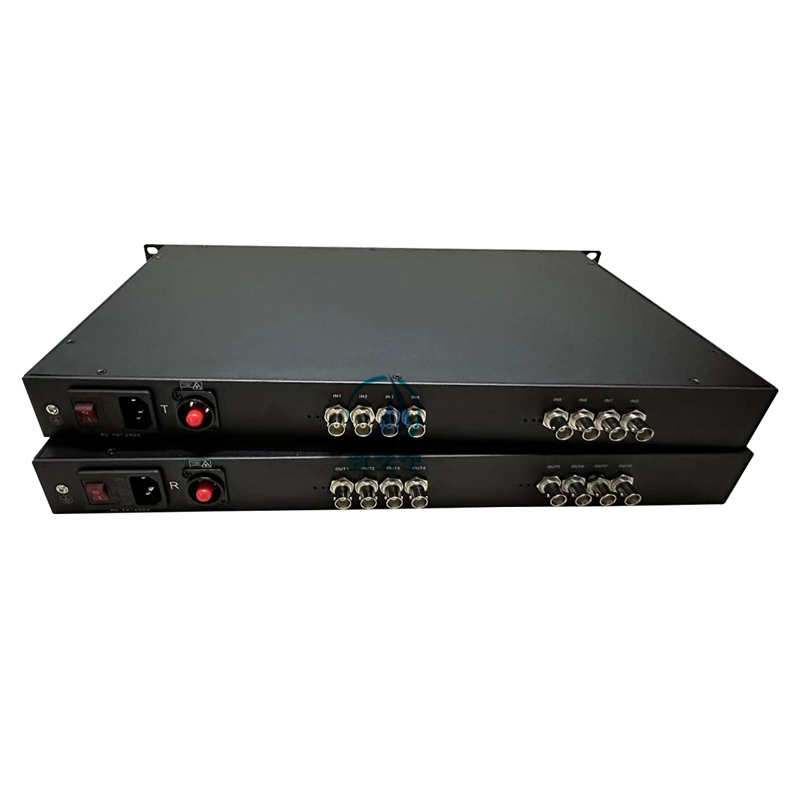

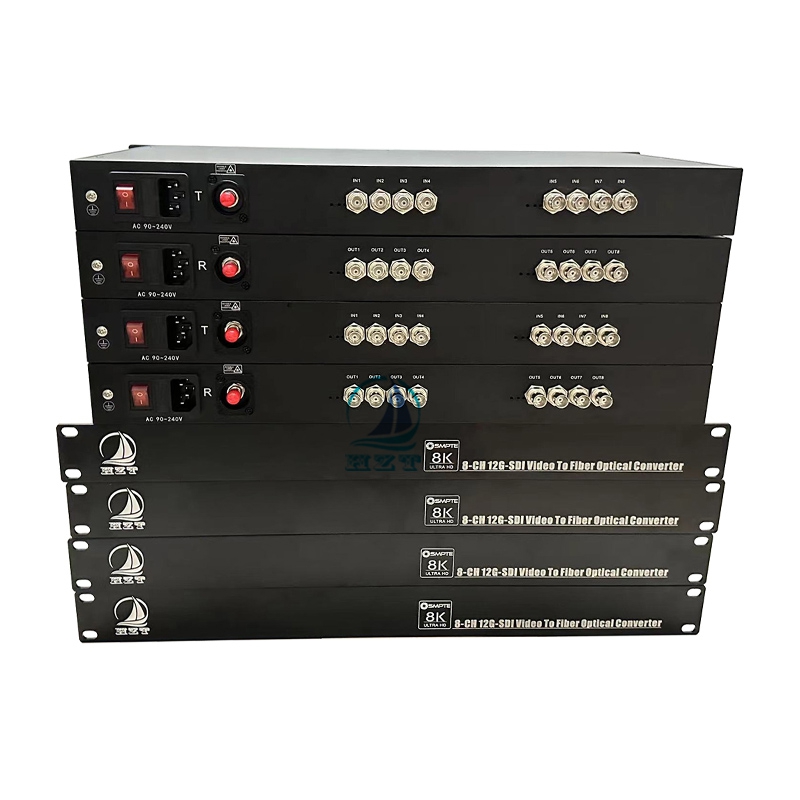

8-CH 12G-SDI Video Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT Technology 8 Channels Forward 12G-SDI Video to Fiber converter（Part Number：HZT-SDI-12G-4V-SM001） is designed and produced by HZT technology and which has an ideal solution for broadcasting event production applications. It can transmits 8-ch 12G-SDI video signal over a single LC/ST/FC/SC Fiber, to achieve no delay, no compression, high-quality signal extension of 10 kilometers. It also can compatible with 3G SDI signals.
    The optical module and core circuit of the HZT-SDI-12G-8V-SM001 fiber optical extender are imported components, stable performance, the use of integrated circuit design, simple design, easy to install and debug, maintenance-free, and because of the use of optical fiber as the transmission medium, so excellent performance, high temperature resistance, cold, can effectively prevent strong electromagnetic radiation interference, lightning impact and power surge. Greatly improve the stability and reliability.
    Features
    ● 8 Channel SDI High density digital audio/video fiber transmission
    ● Handle all Pathological patterns
    ● SD, HD, 3G, 12G input auto identification，support 270Mbit/s - 11.88Gbit/s data rate
    ● Support SMPTE ST-2082, SMPTE ST-2081, SMPTE-424M, SMPTE-292M, SMPTE-259M
    ● 10KM on single Mode Fiber transmission

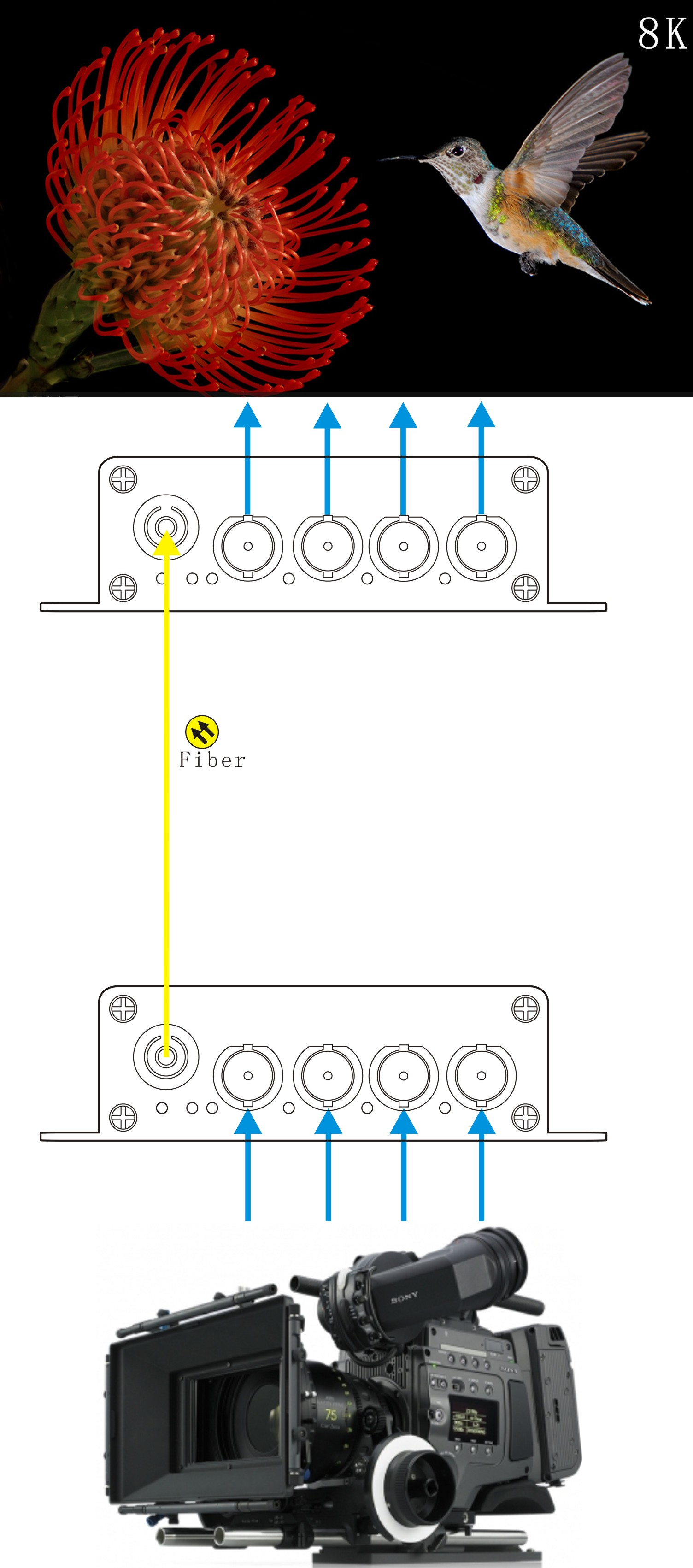

    Connection Diagram

    Specification

    SDI input/output
    Signal format
    ST-2082, ST-2081, SMPTE 424M, SMPTE 292M, SMPTE 259M
    Data rate
    270Mbit/s - 1.485Gbit/s – 2.97Gbit/s – 5.94Gbit/s -  11.88Gbit/s
    Cable Equalization
    Automatic cable EQ (Belden 1694A cable)
    450m @ 270Mbit/s,
    260m @ 1.5Gbit/s,
    190m @ 3Gbit/s,
    100m @ 5.94Gbit/s,
    80m @ 11.88Gbit/s,
    Jitter
    ≤0.2UI
    SDI interface
    BNC 75 Ohm
    Fiber interface
    ST/SC/FC/LC  optional
    Transmitter wavelength
    CWDM wavelength optional
    Transmitter output power
    -5~0 dBm
    Receiver sensitivity
    ≤-15dBm
    Transmission Distance
    SM: 0~10KM
    Number of Transmitter Channel
    8-ch 12G-SDI Video Input
    Number of Receiver Channel
    -ch 12G-SDI Video Output

    General index
    Input power
    AC 100~240V
    Power consumption
    < 5W
    Net weight
    6 KG /pair
    Dimension
    19"  Standard 1U Rack
    Work Temp
    -20°C to 55°C
    Storage Temp
    -20°C to 70 °C
    humidity
    0 ~ 95% (non-condensing)
