1-CH BIDI 12G-SDI Video Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    Description

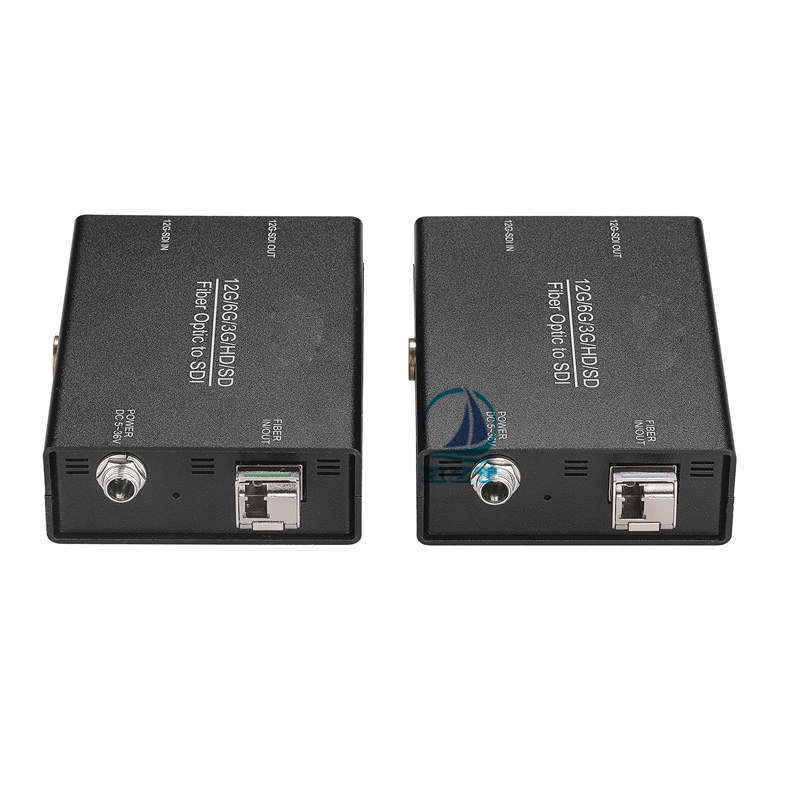

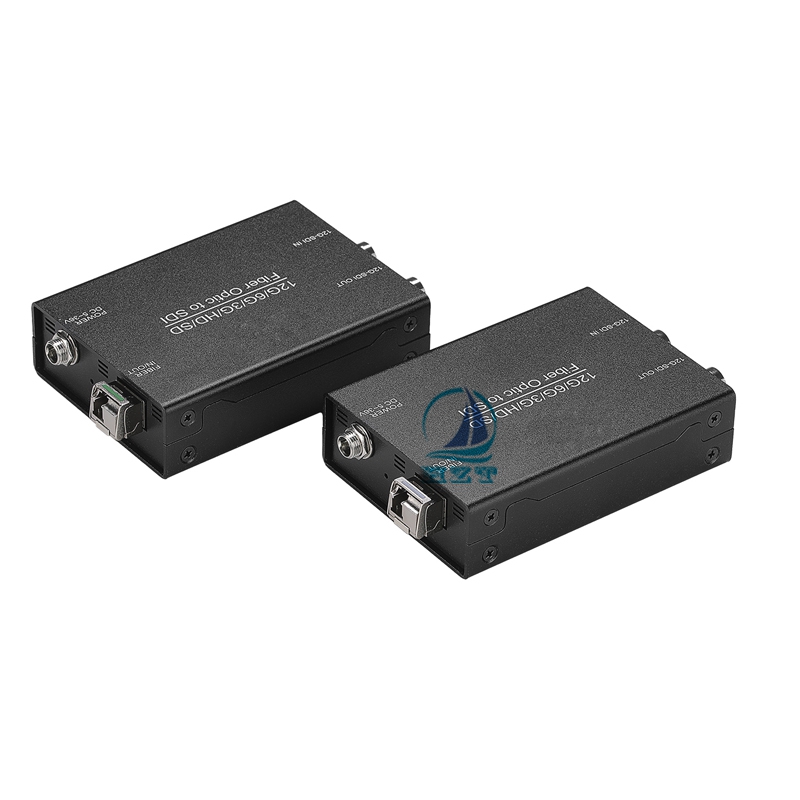

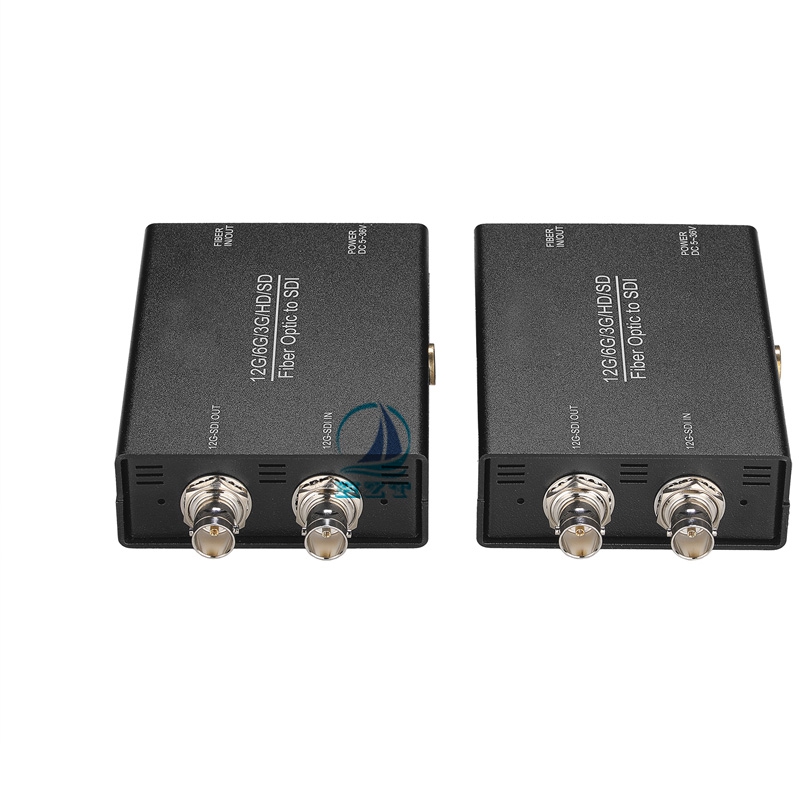

    HZT Technology 1-ch Bi-directional 12G-SDI Video to Fiber converter (Part Number :

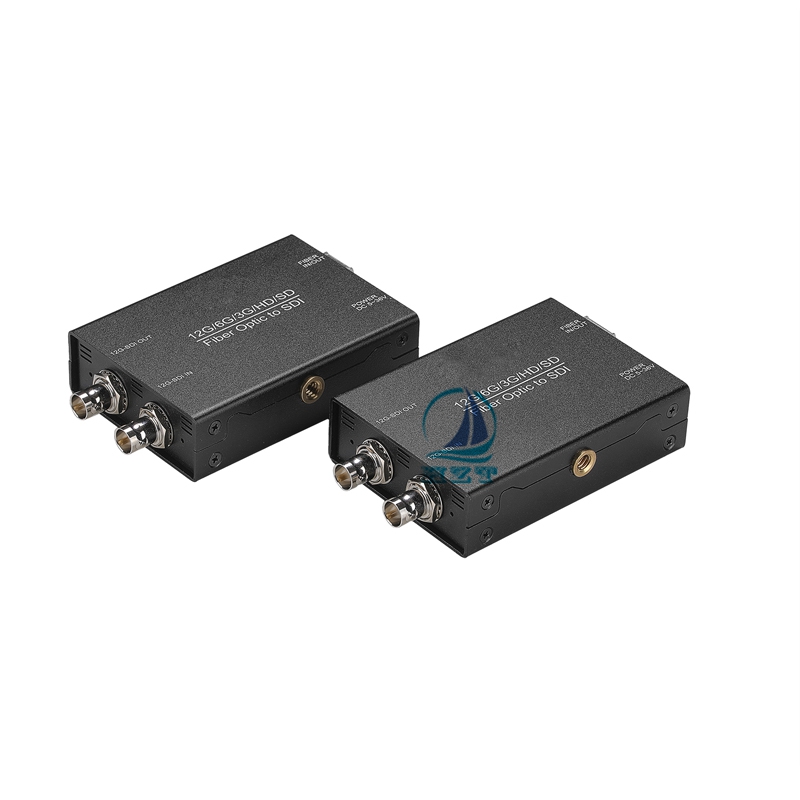

    HZT-SDI-12G-SDI-1AA-SM001 is designed and produced by HZT technology and which has an ideal solution for broadcasting event production applications.Including one Transmitter and one Receiver. It can transmits 1-ch Bi-directional 12G/6G/3G-SDI Video over a single LC Fiber Cable. It supports transmission of UHDTV/4K/8K/HDTV/SDTV SDI signal.  It also carries  a 1/4 hot shoe, can supply power to the fiber optic converter through the V-port mobile power supply, which is convenient for use in outdoor or inconvenient environments for operation.
    HZT-SDI-12G-SDI-1AA-SM001 1-ch Bi-directional 12G-SDI Video to Fiber converter can automatic identification for 12G-SDI, 6G-SDI,3G-SDI, HD-SDI,SDI,ASI Signal.
     It built-in serial clock recovery,signal equalization and line drive, and compatible with SMPTE ST2082-1 (12GUHD-SDI), ST2081-1 (6GUHD-SDI), SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE305M, SMPTE310M standards.
    Feature
    ● Single LC fiber transmits 1-ch Bi-directional 12G-SDI signal .
    ● Handle all Pathological patterns
    ● Supports SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M, and SMPTE 259M (C) Serial Digital Video Standards,
    ● Supports 270Mbit/s - 1.48Gbit/s - 3Gbit/s, 5.94Gbit/s, and 11.88Gbit/s Serial Data Rate
     Each 12G-SDI channel includes 8-channel audio embedded
    ● 12G-SDI/6G-SDI/3G-SDI/HD-SDI/SDI/ASI  automatic identification
    ● Support 0-10Km on single Mode Fiber transmission

    SDI input/output

    Signal format
    ST-2082, ST-2081, SMPTE 424M, SMPTE 292M, SMPTE 259M
    Data rate
    270Mbit/s - 1.485Gbit/s – 2.97Gbit/s – 5.94Gbit/s -  11.88Gbit/s
    Cable Equalization
    Automatic cable EQ (Belden 1694A cable)
    450m @ 270Mbit/s, 260m @ 1.5Gbit/s, 190m @ 3Gbit/s, 100m @ 5.94Gbit/s, 80m @ 11.88Gbit/s,
    Jitter
    ≤0.2UI
    SDI interface
    BNC 75 Ohm
    Fiber interface
    Single LC
    Transmitter wavelength
    1310/1550nm
    Transmitter output power
    -5~0 dBm
    Receiver sensitivity
    ≤-15dBm
    Transmission Distance
    SM: 0~10KM
    Number of Transmitter Channel
    1-ch 12G-SDI Video Input, 1-ch 12G-SDI Output
    Number of Receiver Channel
    1-ch 12G-SDI Video Input, 1-ch 12G-SDI Output

    General index

    Input power
    DC12V
    Power consumption
    < 5W
    Net weight
    0.75 /pair
    Dimension
    104 ×42 × 22mm
    Work Temp
    -20°C to 55°C
    Storage Temp
    -20°C to 70 °C
    humidity
    0 ~ 95% (non-condensing)
