12G-SDI Video Fiber Converter

Products

Can‘t find what you‘re looking for?
Click here to talk directly to a member of the sales team.
FIND A SALES MANAGER

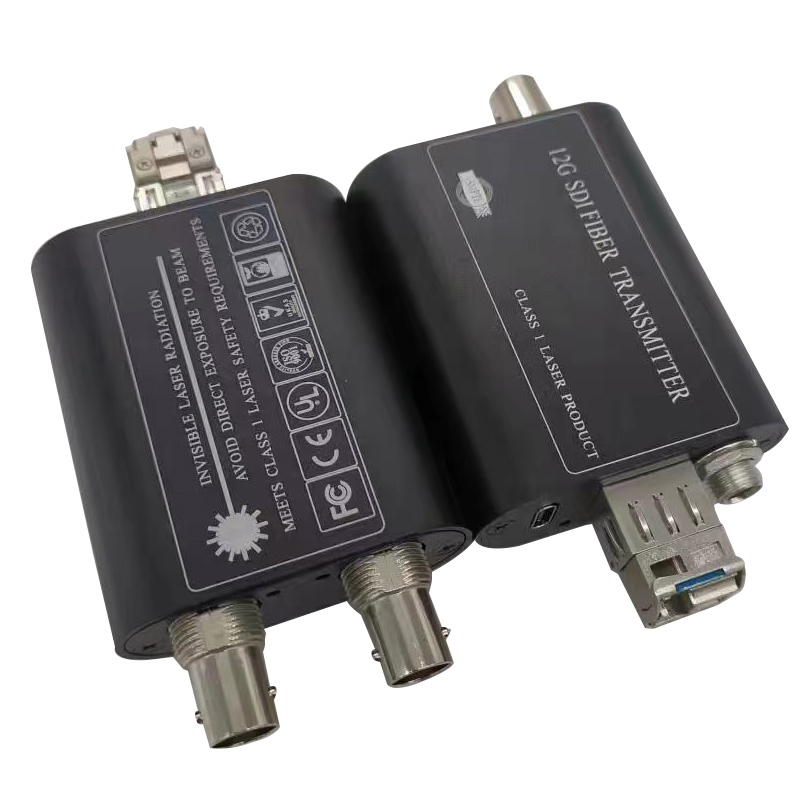

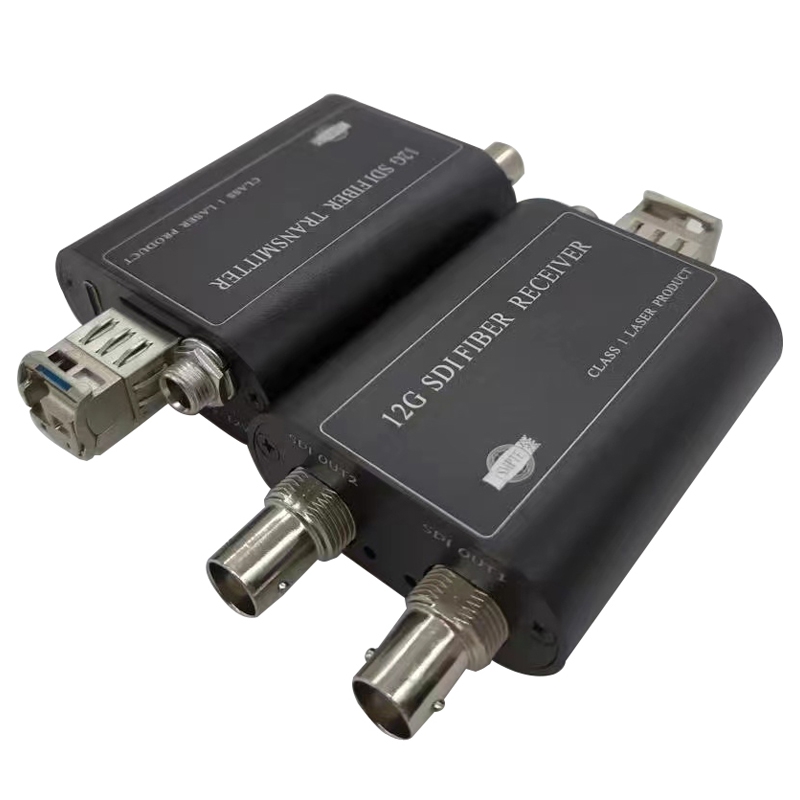

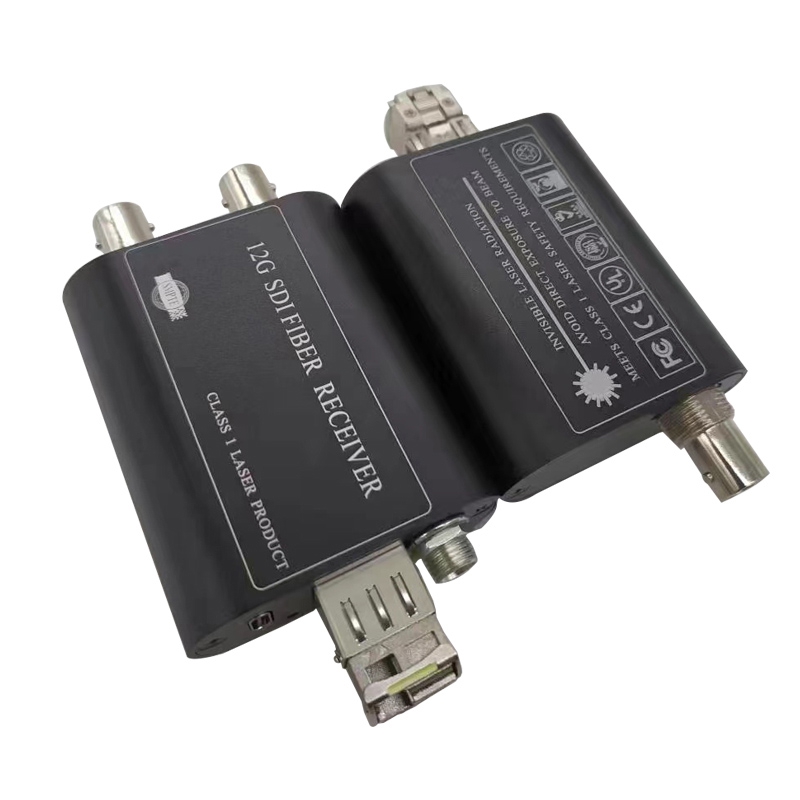

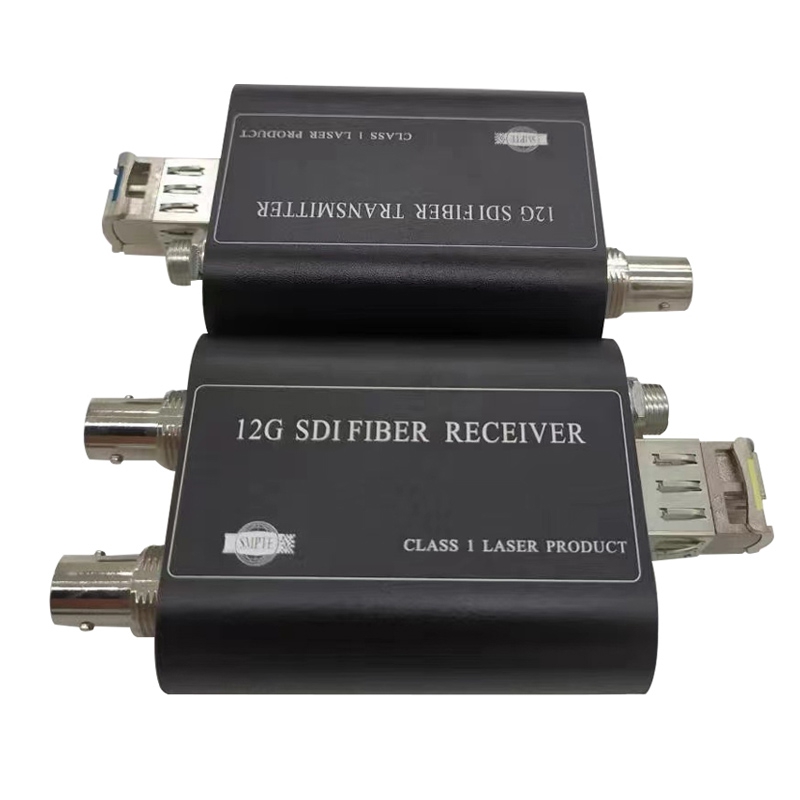

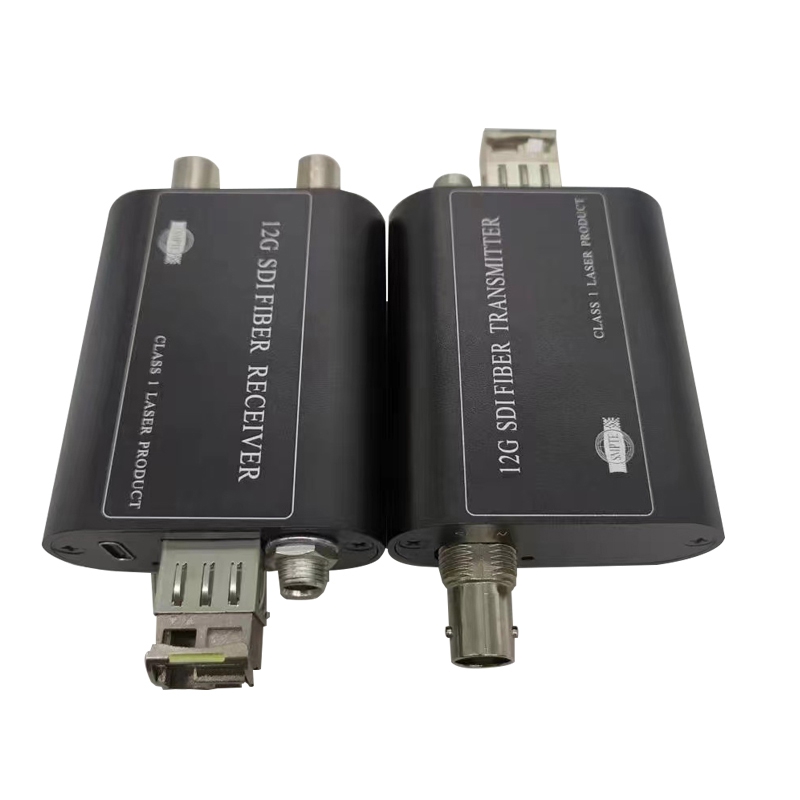

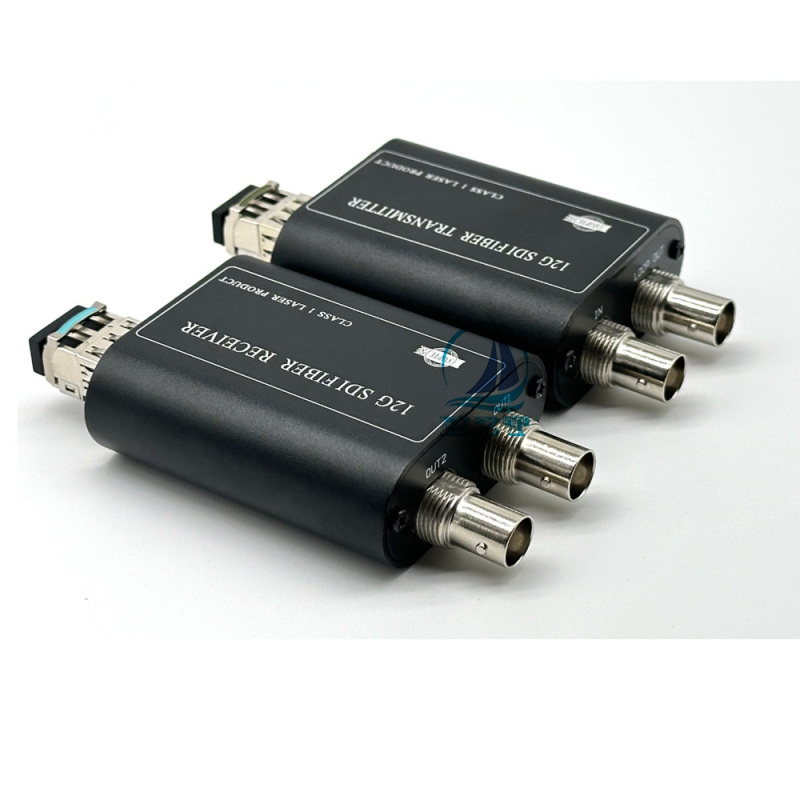

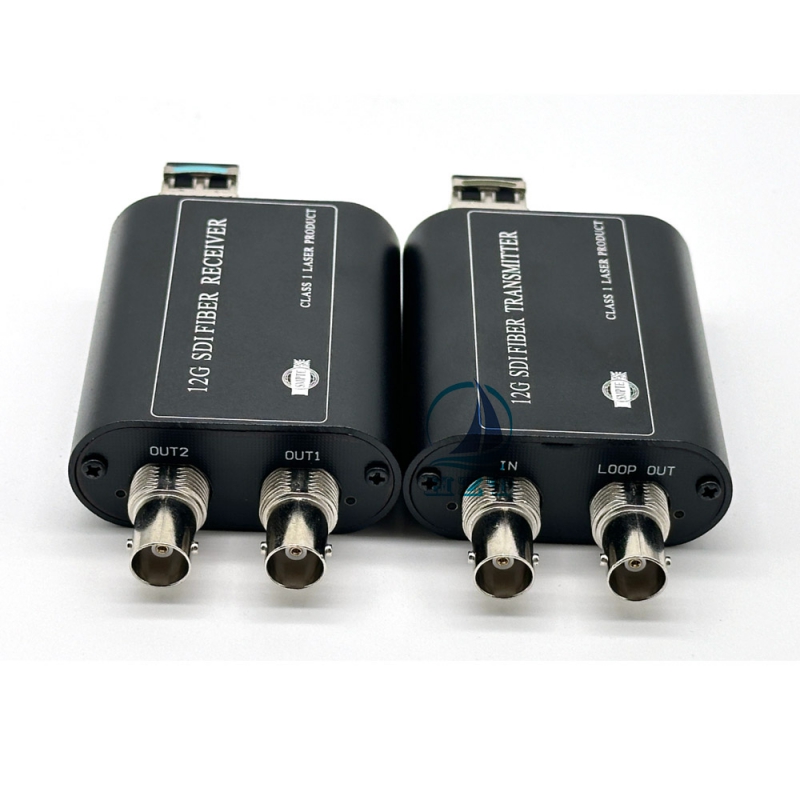

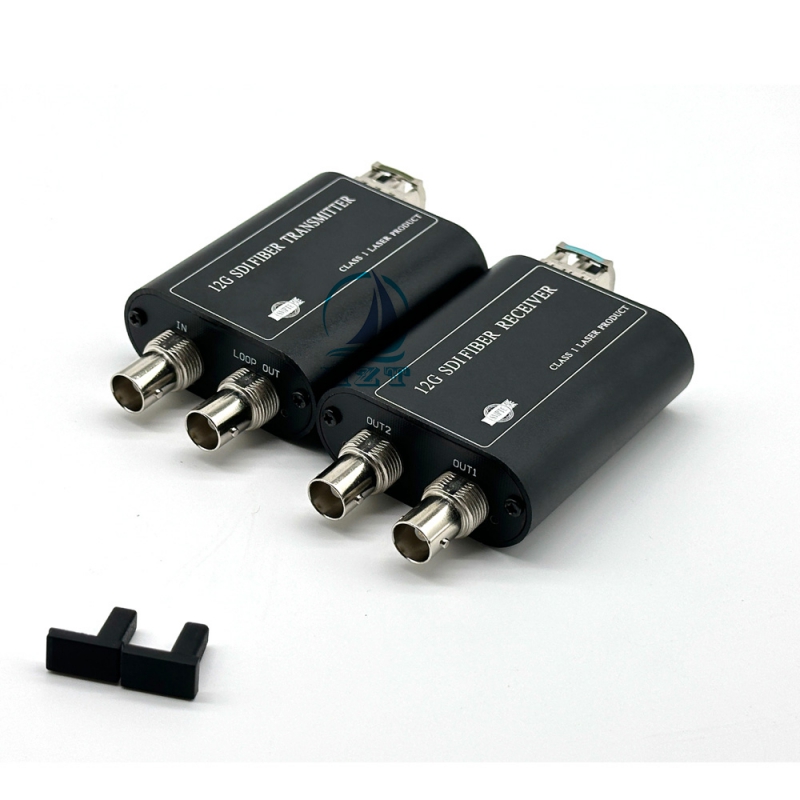

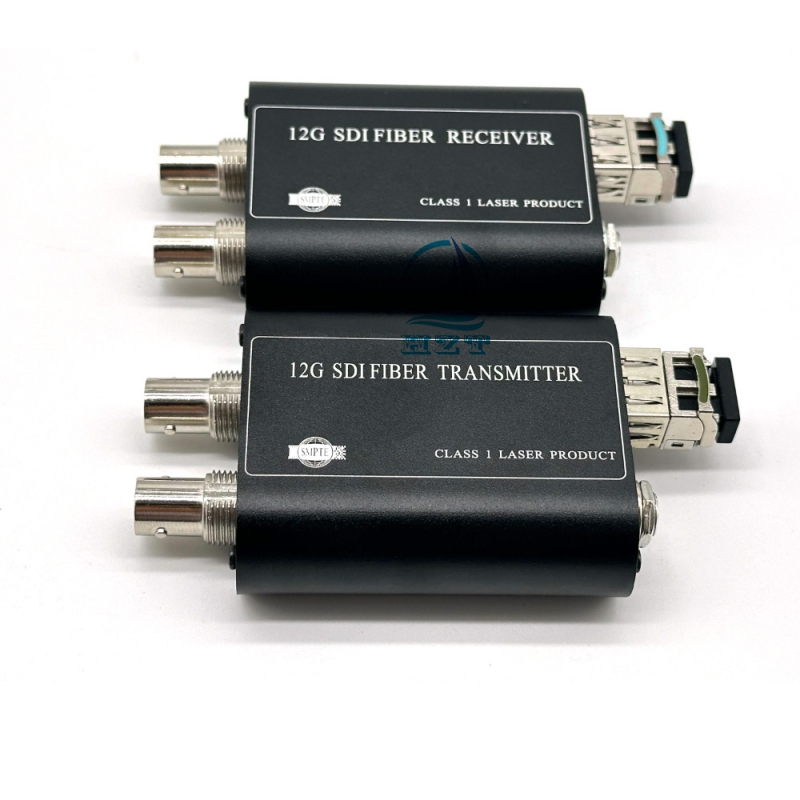

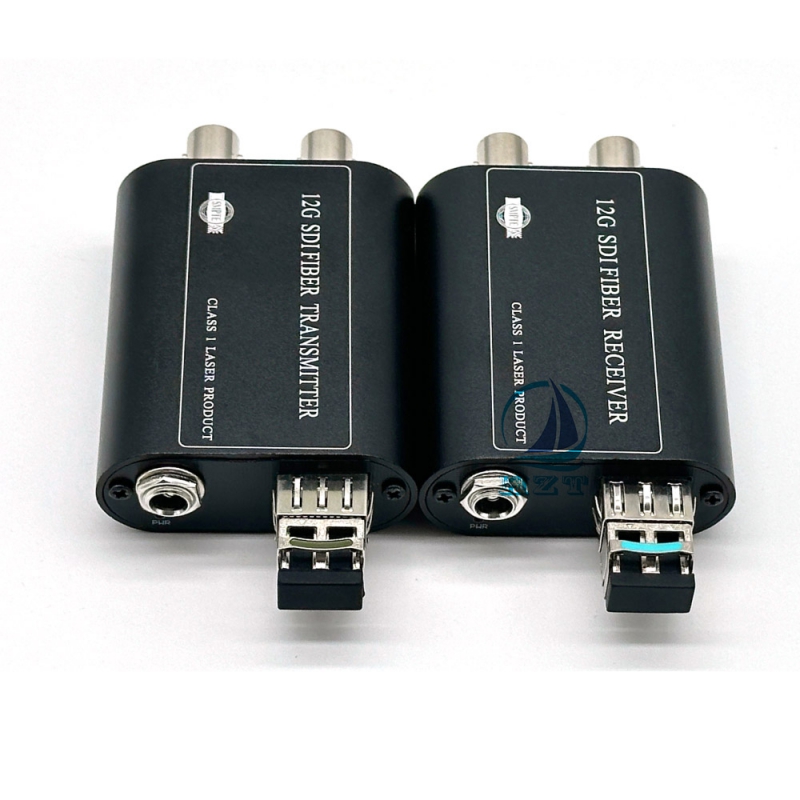

1-CH 12G/6G/3G-SDI Video With Loop out To Fiber Converter With Single LC Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    Description
     HZT Technology 12G-SDI to fiber converter(HZT-SDI-12G-SM001) is an ideal and economic solution for broadcasting or surveillance applications. It can transmits 1-ch  12G/6G/3G/HD/SD-SDI Over Single LC Fiber Cable. Transmitter has one 12G-SDI input and an additional one channel 12G-SDI Loopout, and receiver has 2-ch 12G-SDI output, perfectly converts electrical SDI signal to fiber optic SDI signal. It supports transmission of UHDTV/4K/8K/HDTV/SDTV SDI signal.
    Both transmitter and receiver provide equalizing and integrated reclocker at input unit in order to re-construct the signal for consistent quality. Besides, with advanced fiber technology, HZT Technology’s 12G-SDI to fiber Converter have passed full pathological pattern at 1.5G, 3G and 12G to prove its complete transmission.
    Feature
    ● 1 channel video and audio transmission of UHDTV/4K/8K/HDTV/SDTV SDI signal over optic fiber
    ● Handles pathological pattern
    ● Automatic cable equalization to ensure signal integrity
    ● With integrated reclocker 270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s
    ● Supports SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI,
    ● Long transmission capability at least 500M (MM fiber)/10KM(SM fiber)
    ● Terminal block power input for industrial application
    ● Supports hot swapping and hot plugging
    ● Simplex LC/PC single mode optical connection

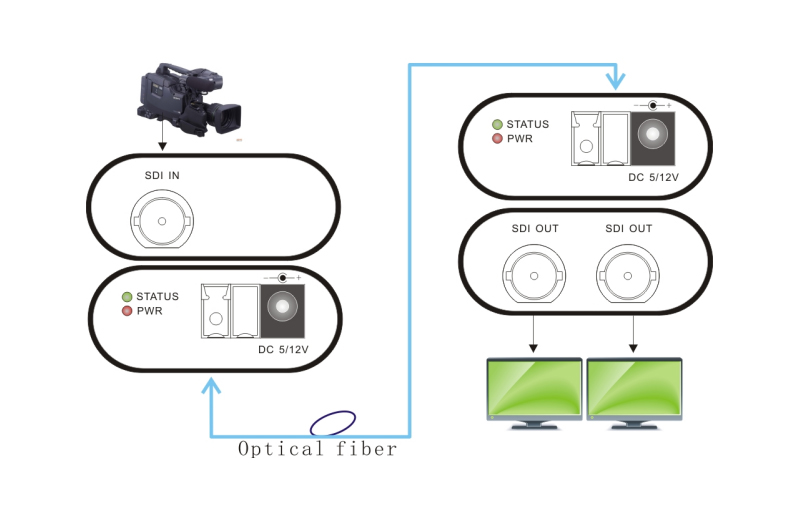

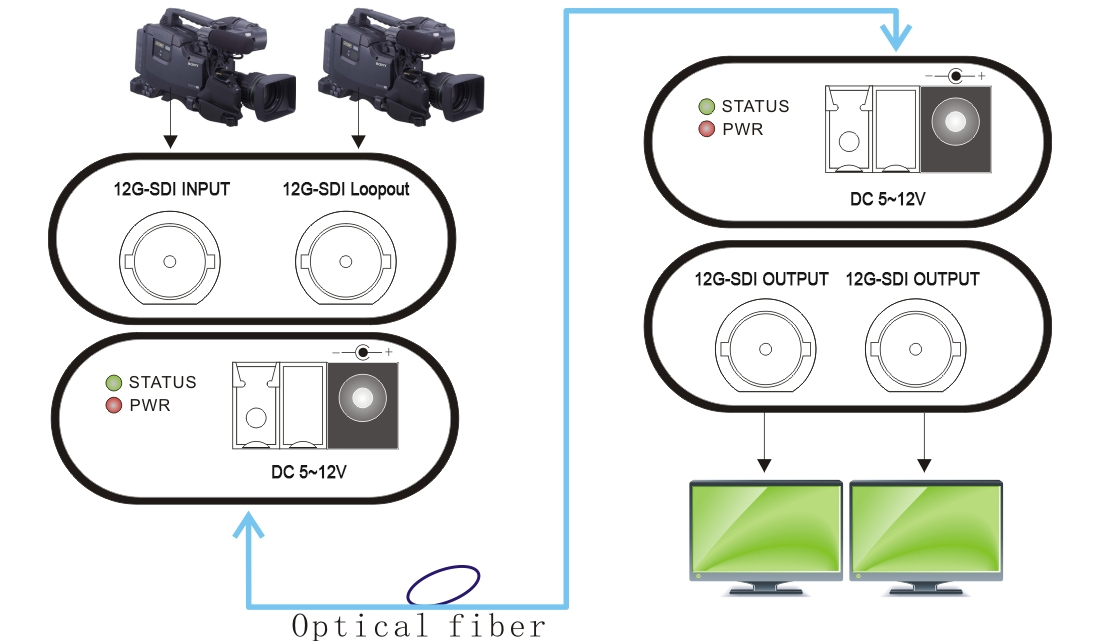

    Connection Diagram

    SDI input/output
    Signal format
    ST-2082, ST-2081, SMPTE 424M, SMPTE 292M, SMPTE 259M
    Data rate
    270Mbit/s - 1.485Gbit/s – 2.97Gbit/s – 5.94Gbit/s -  11.88Gbit/s
    Cable Equalization
    Automatic cable EQ (Belden 1694A cable)
    450m @ 270Mbit/s,
    260m @ 1.5Gbit/s,
    190m @ 3Gbit/s,
    100m @ 5.94Gbit/s,
    80m @ 11.88Gbit/s,
    Jitter
    ≤0.2UI
    SDI interface
    BNC 75 Ohm
    Fiber interface
    Single LC
    Transmitter wavelength
    1310nm
    Transmitter output power
    -6~-1 dBm （0±3dBm optional）
    Receiver sensitivity
    ≤-14.4dBm~-1 dBm
    Transmission Distance
    SM: 0~10KM
    Number of Transmitter Channel
    1-ch 12G-SDI Video Input + 1-ch 12G-SDI Video Loop out
    Number of Receiver Channel
    2-ch 12G-SDI Video Output

    General index
    Input power
    DC5V~12V
    Power consumption
    < 3W
    Net weight
    		 210g /pair （with Power supply 440g/pair）
    Dimension
    62 ×52 × 22mm
    Work Temp
    -20°C to 55°C
    Storage Temp
    -20°C to 70 °C
    humidity
    0 ~ 95% (non-condensing)
