Description

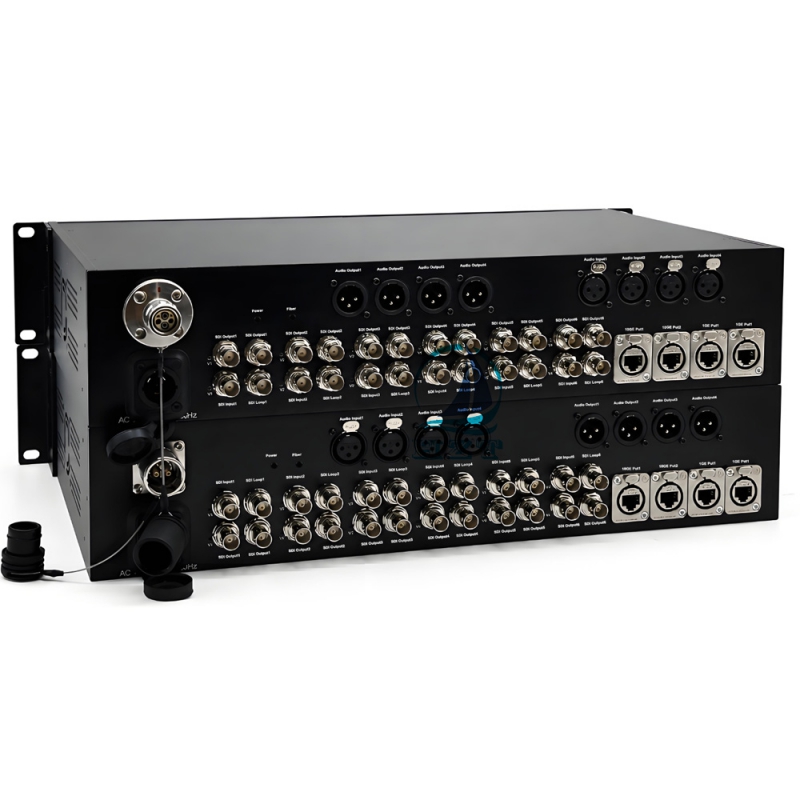

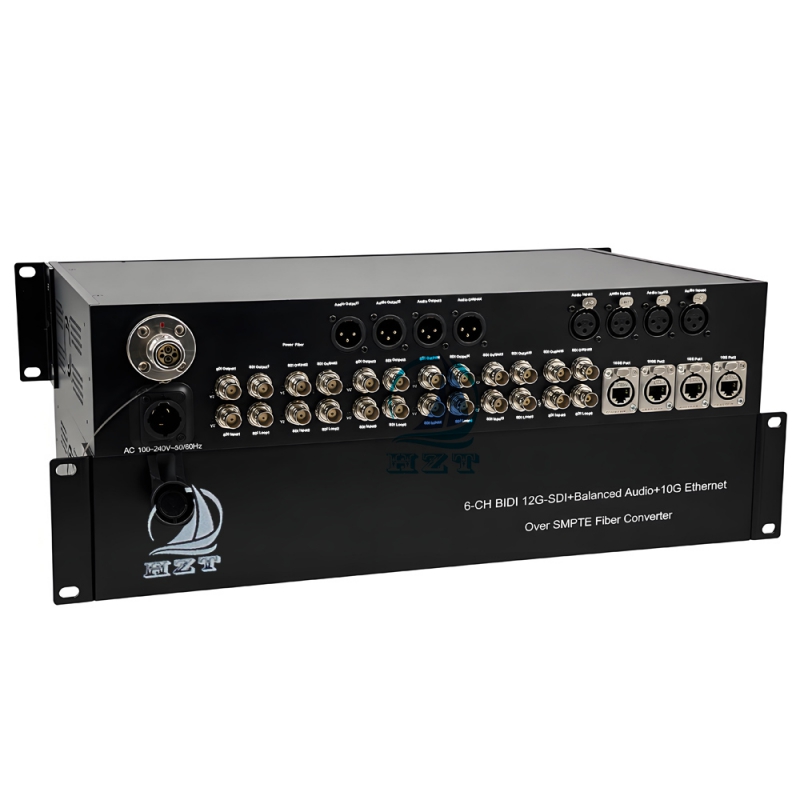

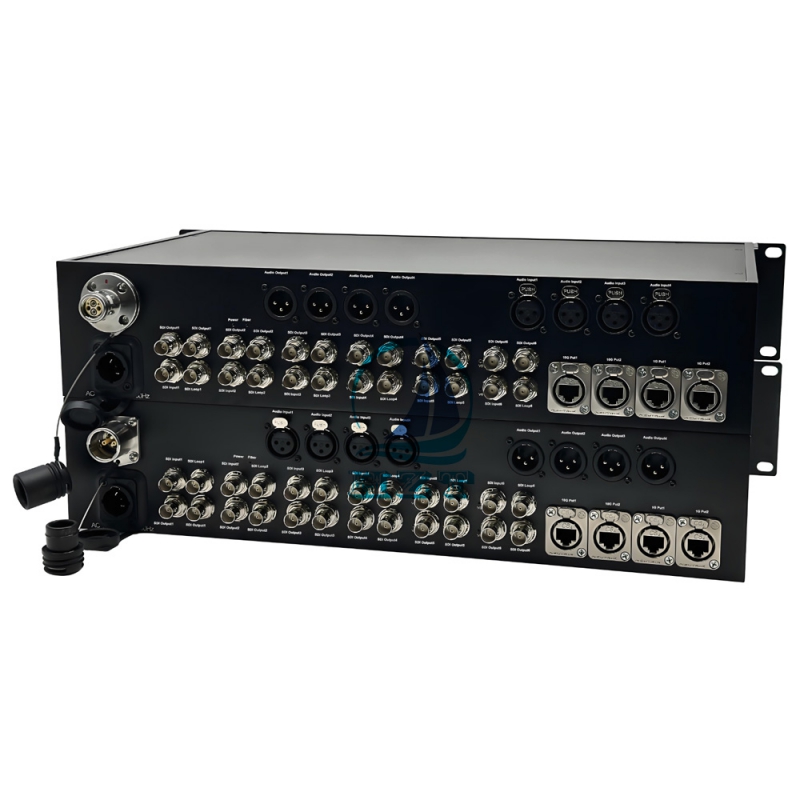

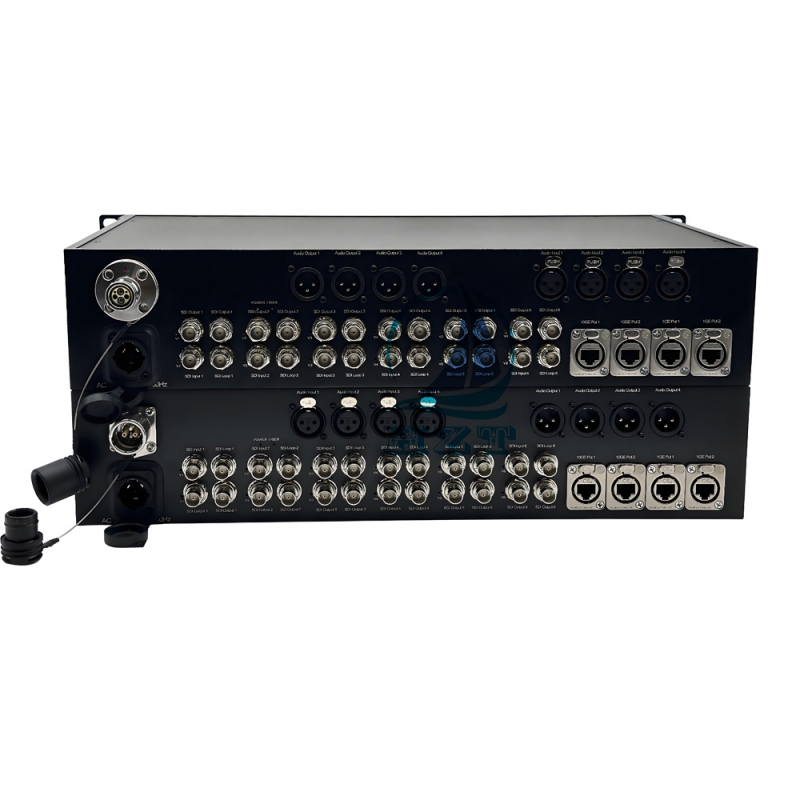

The HZT‑SDI‑12G‑6VV4AAE102E12‑HSM001 is a professional, high‑integration fiber optic transmission solution designed and manufactured by HZT Technology. It replaces a cumbersome array of separate cables with a single, robust SMPTE 311M hybrid fiber optic cable, seamlessly combining power delivery, ultra‑high‑definition video transmission, bidirectional audio, and high‑speed data communication over one lightweight link.
This converter is specifically engineered for broadcasting event production, live multi‑camera broadcasts, remote production (REMI), studio and OB van integration, and fixed installations in theaters, houses of worship, and lecture halls. With support for UHDTV/4K/8K/HDTV/SDTV SDI signals, it delivers uncompressed transmission with integrated reclocking technology for consistent signal quality over extended distances.
Key Features
● 6 Channels Two‑way 12G‑SDI high‑density digital video transmission
● 4 Channels Two‑way 3‑pin XLR balanced analog audio transmission
● 2 Ports Independent 10G Ethernet transmission
● 2 Ports Independent 10/100/1000M isolated Ethernet transmission
● Supports SMPTE ST‑2082, ST‑2081, 424M, 344M, 292M, 259M, and DVB‑ASI Serial Digital Video Standards
● Integrated reclocker supporting 270 Mbit/s, 1.48 Gbit/s, 2.97 Gbit/s, 5.94 Gbit/s, and 11.88 Gbit/s data rates
● 3K.93C SMPTE FXW‑EDW connector with remote power supply capability
● Supports Neutrik PowerCON and SMPTE dual power input – dual power design ensures production continuity
● Handles all pathological patterns
● Supports hot swapping and hot plugging
● LED status indicators for monitoring critical parameters
● Supports CWDM wavelength multiplexing
Application
● Live event production and broadcast
● Remote and outside broadcast (OB) van transmission
● TV remote studio operations
● Military and public security command and control centers
● Building‑to‑building video conferencing
● Medical and surgical room broadcast
● Video wall controllers and command centers
