Description:

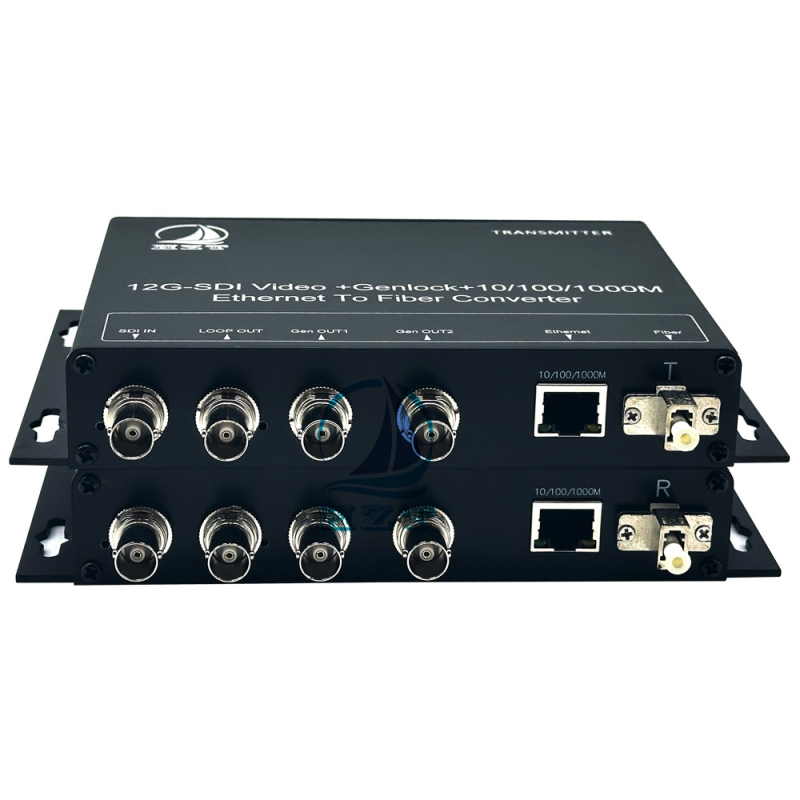

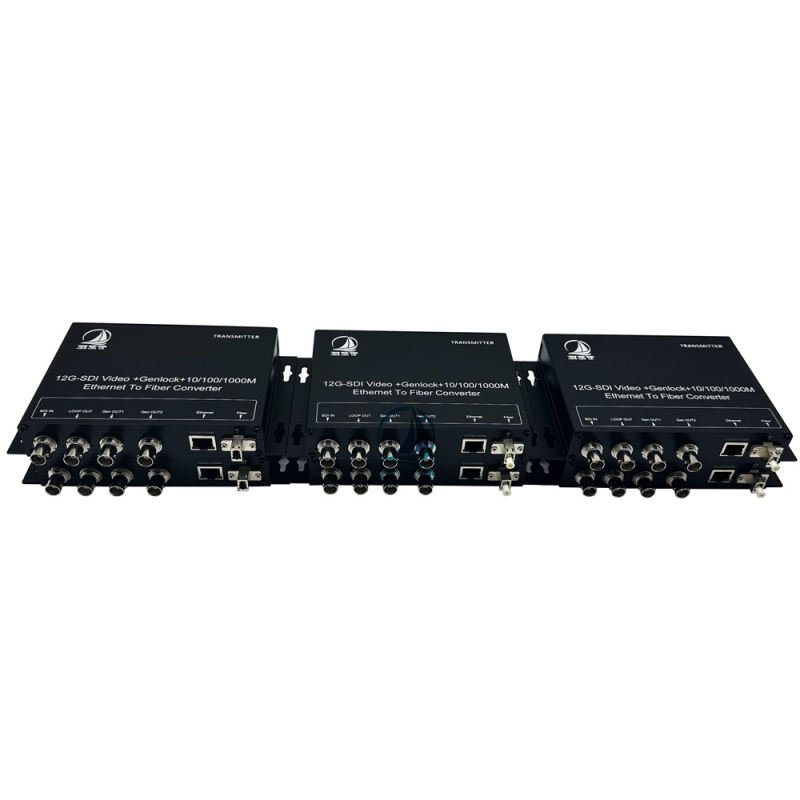

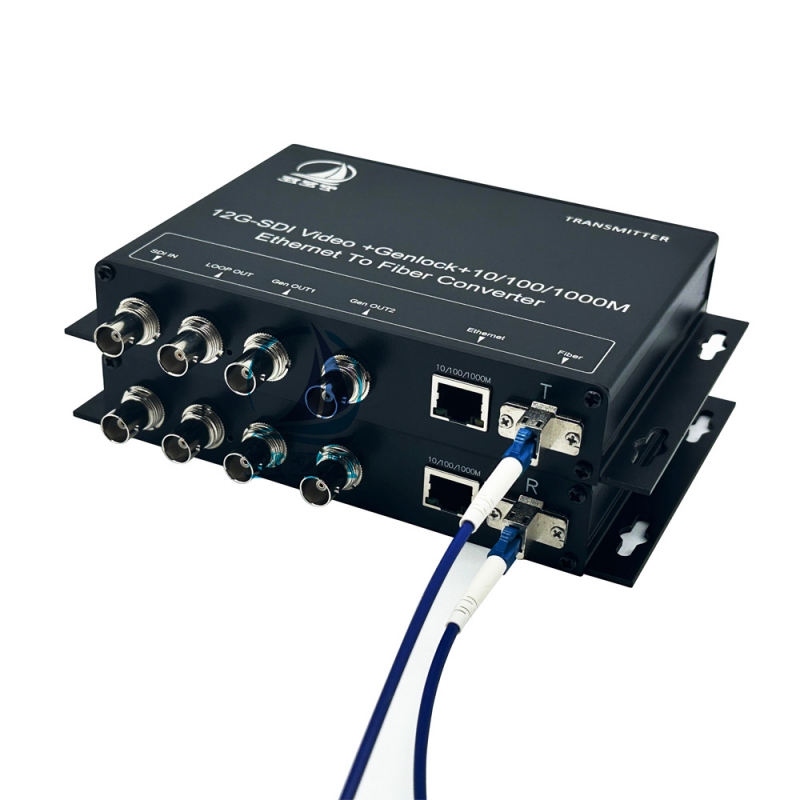

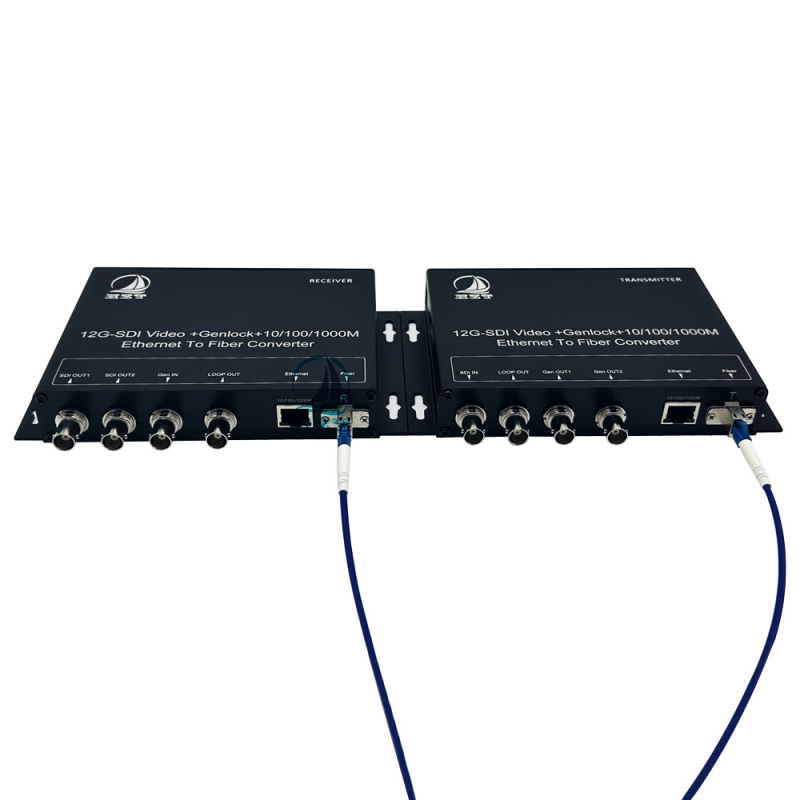

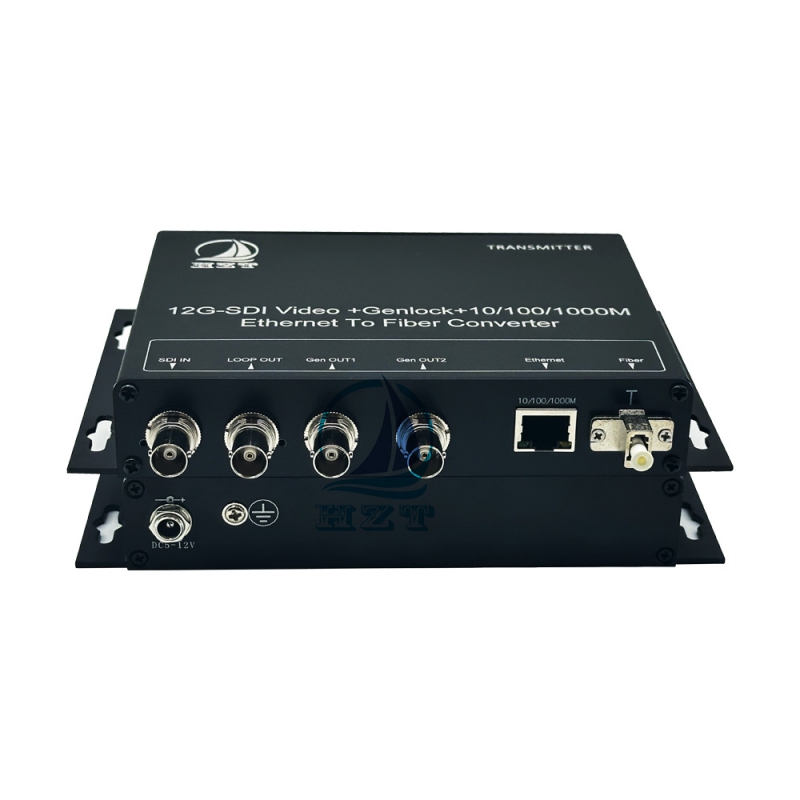

HZT-SDI-12G-1V1G1E-SM0021 is designed and produced by HZT technology and which has an ideal solution for broadcasting event production applications. It can transmits 1-ch 12G/6G/3G/HD-SDI digital video With Loop out+1-ch Return Genlock + 1 port 10/100/1000M Ethernet over Single LC Fiber Converter. It supports transmission of UHDTV/4K/8K/HDTV/SDTV SDI signal.
Both transmitter and receiver provide equalizing and re-clocking at input unit in order to re-construct the signal for consistent quality. Besides, with HZT technology advanced fiber technology, SDI can easily pass pathological pattern to prove its complete transmission.
Features
● 1-Channels 12G-SDI High density digital video fiber transmission
● 1 Channels Analog Genlock Signal Fiber Transmission
● 1 ports 10/100/1000M Isolated Ethernet transmission, Independent operation without interference
● Handle all Pathological patterns
● Supports SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI, Serial Digital Video Standards
● With integrated reclocker 270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s
● 0~10Km on single Mode Fiber transmission
● Supports hot swapping and hot plugging
● Supports IEC and SMPTE dual power output.
Application
● Event production;
● Live on optical fiber transmission;
● TV remote studio;
● The military and public security command and control
