Description
HZT-SDI-12G-1VV2AA2E-SM001 is designed and produced by HZT technology and which has an ideal solution for broadcasting event production applications. It can transmits 1-ch Bi-directional 12G-SDI digital video signal+ 2-ch Bi-directional 3-pin XLR balanced Audio + 2-ch 10/100/1000M Ethernet over Duplex LC Fiber Converter. It supports transmission of UHDTV/4K/8K/HDTV/SDTV SDI signal. Each of the 12G/HD-SDI signals are fully isolated from each other and operate at a full 11.97 Gbps data rate. Each channel carries its own embedded audio. To achieve no delay, no compression, high-quality signal extension of 10 kilometers.

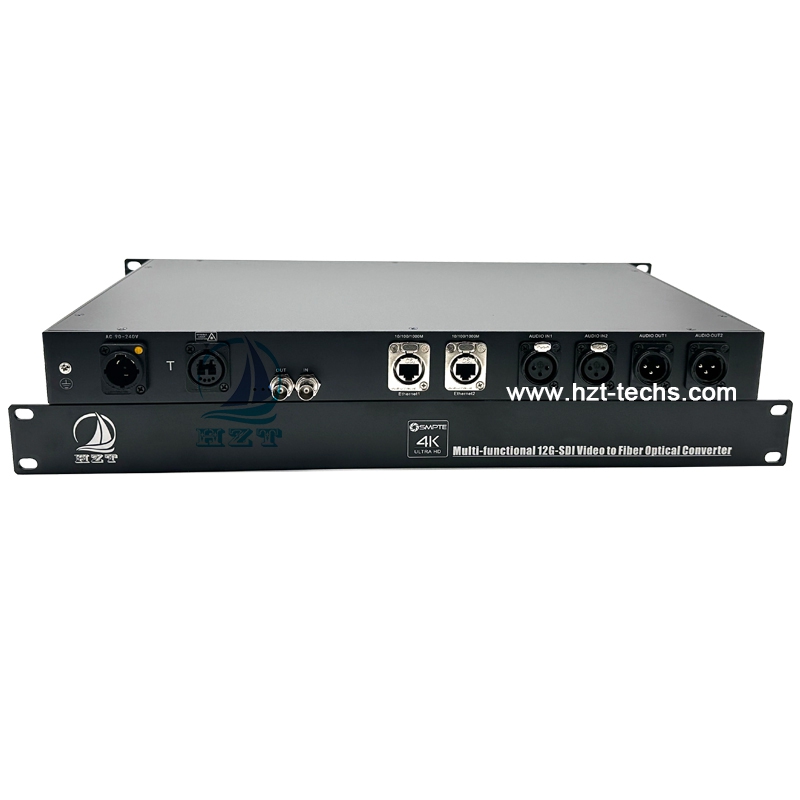

The high lights of HZT-SDI-12G-1VV2AA2E-SM001 is using Neutrik OpticalDuo Hybrid Converter, it can be plugged with Common Duplex LC Fiber Optical Cable or Neutrik Hybrid Cable, (If need to transmit Remote Power, please contact our sales to customized.) , and for power connector, we use Neutrik PowerCon Connector, compared to traditional IEC power supplies, it can be locked and does not fall off easily; and the Ethernet Connector is using Neutrik RJ45 Connector, the quality is more good and make network connection more stable and reliable. The last highlight of HZT-SDI-12G-1VV2AA2E-SM001 is when you plug into 12G-SDI input, but you use for a 3G monitor, the image will automatically scales and adapts to 3G displays.
Feature
● 1-ch Bi-directional 12G-SDI High density digital audio/video fiber transmission
● 2-ch Two-way 3-pin XLR Analog balanced Audio fiber transmission
● 2-ch 10/100/1000M Ethernet connection For Neutrik RJ45 Connector
● Handle all Pathological patterns
● 12G-SDI: Supports SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M, and SMPTE 259M (C) Serial Digital Video Standards, Supports 270Mbit/s - 1.48Gbit/s - 3Gbit/s, 5.94Gbit/s, and 11.88Gbit/s Serial Data Rate
● Fiber Connector adopts Neutrik OpticalDuo Hybrid Connector;
● Neutrik PowerCon connector for Power supply
● Support 0-10Km on single Mode Fiber transmission
● CWDM wavelengths optional.
Application
● 12G/3G/HD-SDI monitor system;
● Live on optical fiber transmission;
● TV remote studio;
● The military and public security command and control
● Event production;
